SANEI CASTING - JAPANESE TECHNOLOGY
Product Description
More

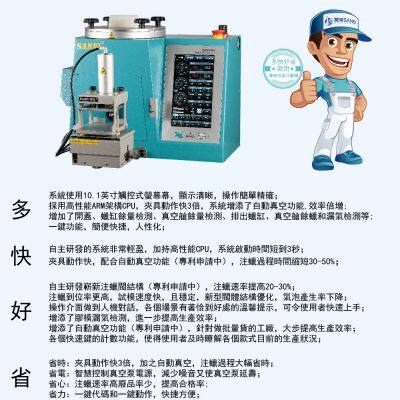

10.1 inch touch screen, clear display screen, simple and accurate operation.High-performance ARM architecture CPU, the clamping action is 3 times faster than other modelsThe system adds automatic vacuum function, which doubles the daily output and the efficiency.Add one-touch key function such as lid opening,wax chamber residual detection,vacuum chamber residual detection, wax chamber discharge,vacuum chamber residual waxand air leakage detection, which are simple, fast and user-friendly.
Fast
Independently developed system is very lightweight, coupled with high-performance CPU,system startup time is as short as 3 seconds.The clamping moves quickly, coupled with automatic vacuum function (patent application is on),which shorten the wax injection process time by 30-50%.
Good
Independently developed a new wax injection valve structure (patent application is on),wax injection rate increases by 20-30%,
wax injection positioning rate is higher,mold trial testing speed is fast and stable.
Optimization of the new valve body structure leads to a decrease in bubble generation rate.
Operation interface achieves human-machine dialogue, with appropriate and warm promptsfor each move, allowing the user get started and operates quickly.
Rubber mold leakage detection is added to improve production efficiency further.
Automatic vacuum function (patent application is on) is added, aims for the factory doing bulkproduction goods, greatly improves production efficiency.
The counting function of each shortcut key, allowing the user understandthe current production status of each style timely.
Save
Time saving: clamping action is 3 times faster than other models, coupled with automatic vacuum.the wax injection process is greatly time-saving.
Power saving: intelligent control of power supply of the vacuum pump,which reducing noise and prolong the service life of the vacuum pump.
Worry free: high wax injection speeed with less waste rate,which improves and then improvesthe product percent of pass.
Labor saving: one touch key mode and one-key action,fast and convenient.

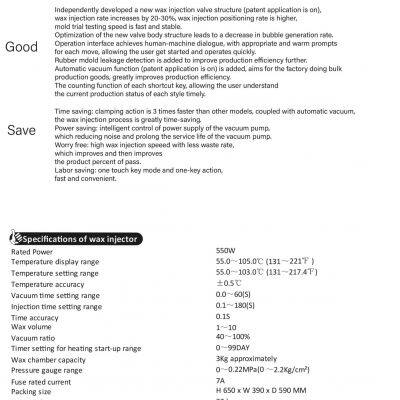

1-1.Parameter of Wax Injector
Powers supply: Single phase, AC 110-220V±10%, 50/60Hz
Rated Power: 550W
Temperature display range: 55.0~105ºC (131~221ºF)
Temperature setting range: 55.0~100ºC (131~212ºF)
Temperature accuracy: ±0.5ºC
Input pressure range:0.4~0.8(MPa)
Pressure range of Pressure regulator : 0.4~0.55(MPa)
Vacuum time: AUTO/0.0~60(S)
Wax injection time: 0.1~180(S)
Time accuracy: 0.1(S)
Wax volume: 1~10
Vacuum ratio: 40~100%
Timing setting for heating start-up range: 0~300DAY
Wax chamber capacity: 3Kg approximately: Approximately 3Kg
Fuse rated current: 5A
Packing size: H 650 x W 390 x D 590 MM
Net weight: 22KG
Gross weight: 26KG

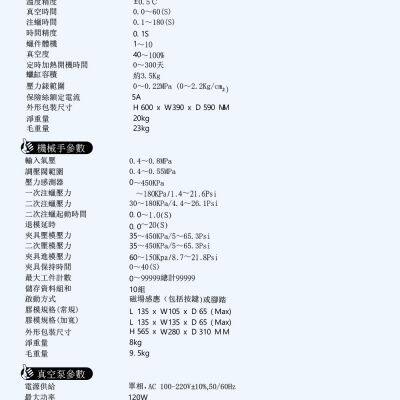

1-2.Parameter of Clamp Unit
Pressure setting range for primary wax injection: 10~180(KPa)/1.4~21.6Psi
Pressure setting range for secondary wax injection: 30~180(KPa)/4.4~26.1Psi
Start-up setting range for secondary wax injection:0.0~1.0(S)
Clamp time delay: 0~20(S)
Clamp backward time delay: 0~20(S)
Pressure setting range for clamp: 35~450(KPa)/5~65.3Psi
Secondary die pressure: 35~450(KPa)/5~65.3Psi
Pressure setting range for clamp forward: 60~150(KPa)/8.7~21.8Psi
Time setting range for clamp holding: 0~40(S)
Max pieces counting: 20000 Total 65000
Target Value: 9999
Shortcut key group: 10 Groups
Starting mode: Magnetic field sensing (including start buttons) or pedaling
Rubber mold dimension (Standard): L 135 X W 105 X H 65 (Max)
Rubber mold dimension (Large): L 135 X W 135 X H 65 (Max)
Packing size(Clamp): H 565 X W 280 X D 310 MM
Net weight(Clamp): 7 KG
Gross weight (Clamp): 8.5 KG
1-3.Parameter of Vacuum Pump
Power supply: Single phase, AC 100-220V±10%,50/60Hz
Maximum Power: 120W
Packing size: H 220 X W 275 X D 110 MM
Net weight: 7.2 KG
Gross weight: 7.7 KG
==
Currently we have six models wax injectors totally, there are HONOR PRO, HONOR, AXIS, BRILLIANT, ADVANCE and ELITE models.
Please contact us for more details.
