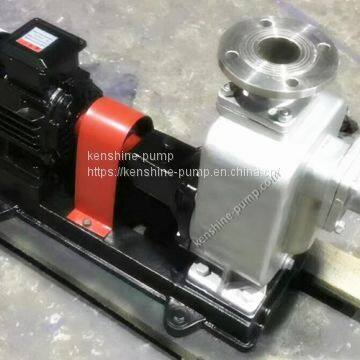

Help CenterFBZ Self Priming Stainless Steel Corrosion Resistant Centrifugal Pump
Related Products
-
VSP Strong Vacuum Self Priming PumpUS$ 300 - 10000MOQ: 1 Unit -
CYZ Self Priming Explosion Proof Centrifugal Oil PumpUS$ 300 - 10000MOQ: 1 Set
-
CLZ Marine Vertical Self Priming Centrifugal PumpUS$ 500 - 8000MOQ: 1 Set
-
ZXB Stainless Steel Self Priming Sanitary Centrifugal PumpUS$ 300 - 2000MOQ: 1 Set
-
ZW,ZWP Self Priming Sewage Non Clogging PumpUS$ 300 - 8000MOQ: 1 Set
FBZ Stainless steel corrosion resistant self priming centrifugal pump is made of stainless steel material. The impeller of FBZ self priming pump can be open impeller or closed impeller. The connection between the pump and motor can be shaft coupling with bearing bracket and closed coupling (direct connection). The shaft seal is cantilever type mechanical seal.
FBZ Stainless steel self priming centrifugal pump has reliable corrosion resistance, easy maintenance, compact structure, low energy consumption, good sealing performance etc. advantages.
Application:
FBZ Stainless steel corrosion resistant self priming centrifugal pump is used to convey the corrosive liquid with small soft particles or fiber and other sanitary liquids.
The pumped liquids temperature is not higher than 90DegC for the pump directly connected with motor. The pump with shaft coupling can handle the liquids not higher than 105DegC.
FBZ Stainless steel corrosion resistant pump has the self priming performance. Suction height is up 5meters.
FBZ Stainless steel corrosion resistant self priming centrifugal pump is widely used in food, beverage, medicine, sewage treatment, chemical industry, electroplating, bleaching and other industries.
| Model | Model | Motor power | Inlet/outlet(mm) | Efficiency | Head(m)/ Q(m3/H) | Suction height (m) | ||||||||||
| 3P/380V/50HZ | 1Phase/220V/50HZ | (KW) | ||||||||||||||
| 25FBZ-8 | 25FBZ-8D | 0.25 | 25 | 25 | 40 | H | 9 | 8 | 7 | 6 | 5 | 4 | 3 | 5.5 | ||
| Q | 2.3 | 3 | 3.5 | 4.3 | 4.8 | 5.2 | 5.5 | |||||||||
| 25FBZ-13 | 25FBZ-13D | 0.55 | 25 | 25 | 40 | H | 16 | 15 | 14 | 13 | 12 | 10 | 8.5 | 9.5 | 10 | 4 |
| Q | 3 | 4 | 4.8 | 6 | 6.5 | 7.5 | 12 | 10 | 8 | |||||||
| 40FBZ-18 | 40FBZ-18D | 1.5 | 40 | 40 | 49 | H | 21 | 20 | 19 | 18 | 16 | 14 | 12 | 10 | 8 | 4 |
| Q | 6 | 7 | 8.5 | 10 | 12 | 14 | 15.5 | 17.3 | 18.5 | |||||||
| 50FBZ-22 | 3 | 50 | 50 | 50 | H | 28 | 26 | 25 | 24 | 22 | 20 | 18 | 16 | 14 | 4 | |
| Q | 8.5 | 12 | 13.5 | 15 | 16.5 | 19 | 20.5 | 22 | 23.8 | |||||||
