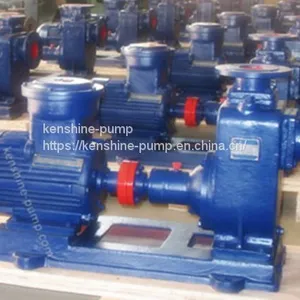

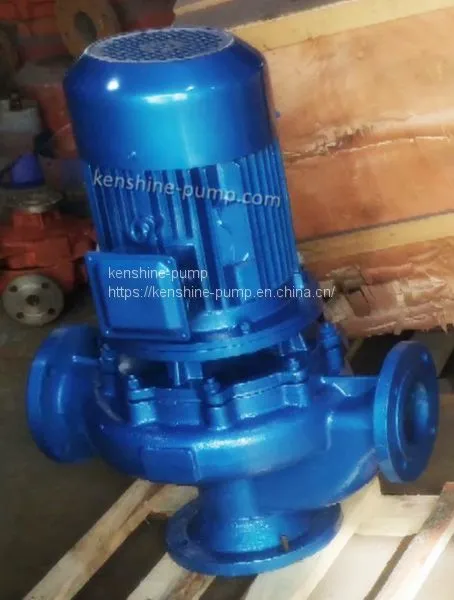

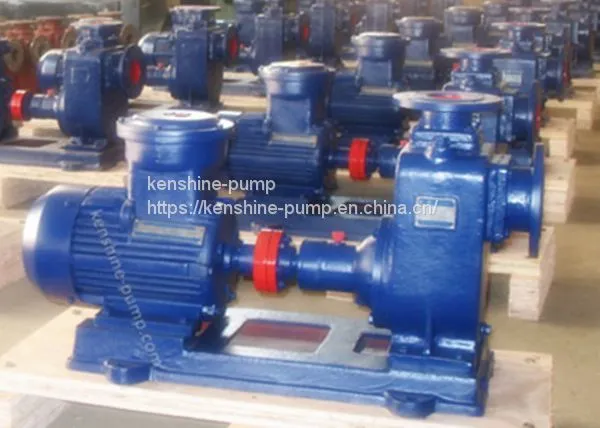

CLZ Marine vertical self priming centrifugal pump
- 600 Set / Sets per Month
- Shanghai
- T/T
- 15 days
-
YHCB double circular arc gears pump
-
TSM Stainless steel horizontal centrifugal volute pump
-
QY submersible centrifugal pump with oil filled motor
-
NYP high viscosity fluids internal gear pump
-
ZXB Stainless steel self priming sanitary centrifugal pump
-
QS Submersible centrifugal pump with water filled motor
Product Details
| Brand Name: | kenshine-pump | Place of Origin: | China | Model Number: | 80CLZ-7 |
| Application: | Maritime | Fuel: | Other, electric motor | Power: | Electric |
| Usage: | Water | Theory: | Centrifugal Pump | Standard or Nonstandard: | Standard |
| Structure: | Single-stage Pump | Pressure: | Low Pressure |
Product Description

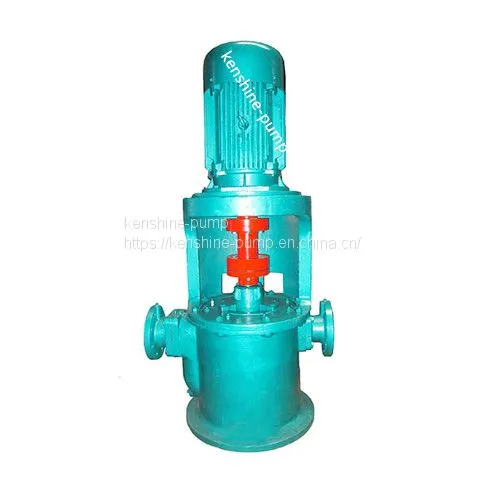

CLZ marine vertical self priming centrifugal pump:
CLZ series Marine vertical self - priming pump has the characteristics of small volume, good self - priming performance (without additional self - priming device), light weight and so on.Easy installation, use and maintenance.
The CLZ series Marine vertical self-priming pumps are used for bilge, ballast, fire pumps and fresh water cooling and sanitation pumps.This series of large size pump can be used as anti-smuggling water cannon, fire cannon supporting pump.
CLZ marine vertical self-priming pump has the characteristics of small volume, good self priming performance (without additional self priming device),light weight, easy installation and convenient usage and maintenance.
CLZ marine vertical self priming pumps are used as bilge pump, ballast pump, fire pump and fresh water cooling pump and sanitary pumps.
CLZ Marine vertical self priming centrifugal pump is applicable to transport seawater or freshwater and the temperature is no higher than 70DegC. Also it is applicable for cooling and sanitary engineering.
| Model | Flow | Head | Speed | Motor power | NPSH | Pump weight |
| m3/h | m | r/min | Kw | m | kg | |
| 40CLZ—2 | 5 | 60 | 2950 | 5.5 | 4 | 173 |
| 50CLZ—9 | 27 | 14.5 | 3 | 4 | 152 | |
| 50CLZ—7 | 12.5 | 20 | 2.2 | 4 | 146 | |
| 50CLZ—6 | 21 | 30 | 4 | 4 | 164 | |
| 50CLZ—4 | 12.5 | 32 | 3 | 4 | 152 | |
| 50CLZ—3 | 12.5 | 50 | 5.5 | 4 | 190 | |
| 65CLZ—9 | 25 | 20 | 3 | 4 | 151 | |
| 65CLZ—6 | 25 | 32 | 5.5 | 4 | 192 | |
| 65CLZ—5 | 25 | 45 | 7.5 | 4 | 198 | |
| 65CLZ— | 30 | 35 | 7.5 | 4 | 199 | |
| 65CLZ—4.5 | 25 | 60 | 11 | 4 | 222 | |
| 65CLZ—3 | 25 | 80 | 15 | 4 | 242 | |
| 80CLZ—13 | 45 | 21 | 5.5 | 5 | 194 | |
| 80CLZ—11 | 50 | 25 | 7.5 | 4 | 199 | |
| 80CLZ—9 | 50 | 32 | 11 | 5 | 236 | |
| 80CLZ—9A | 60 | 25 | 11 | 5 | 385 | |
| 80CLZ—7.5 | 60 | 50 | 18.5 | 4.5 | 256 | |
| 80CLZ—7 | 45 | 48 | 15 | 4 | 255 | |
| 80CLZ—7A | 40 | 50 | 15 | 5 | 252 | |
| 80CLZ—6 | 50 | 50 | 15 | 5 | 256 | |
| 80CLZ—6A | 30 | 60 | 18.5 | 5 | 414 | |
| 80CLZ—5.5 | 45 | 62 | 18.5 | 4.5 | 268 | |
| 80CLZ—5 | 60 | 80 | 30 | 4.5 | 508 | |
| 80CLZ— | 54 | 60 | 18.5 | 4 | 415 | |
| 80CLZ—5B | 50 | 70 | 22 | 4.5 | 452 | |
| 80CLZ—4 | 50 | 80 | 30 | 5 | 646 | |
| 80CLZ—3 | 50 | 120 | 2950 | 37 | 4.5 | 672 |
| 100CLZ—18.5 | 100 | 20 | 15 | 5 | 386 | |
| 100CLZ—13 | 100 | 32 | 18.5 | 5 | 416 | |
| 100CLZ—13A | 70 | 25 | 11 | 5 | 387 | |
| 100CLZ—13C | 90 | 37 | 22 | 4.5 | 451 | |
| 100CLZ—12 | 80 | 32 | 15 | 4.8 | 374 | |
| 100CLZ—9 | 100 | 50 | 30 | 5 | 660 | |
| 100CLZ—9A | 110 | 36 | 22 | 5 | 452 | |
| 100CLZ—8 | 80 | 50 | 22 | 4.8 | 456 | |
| 100CLZ—7 | 80 | 60 | 30 | 5 | 670 | |
| 100CLZ—6 | 100 | 80 | 45 | 5 | 720 | |
| 100CLZ—5 | 100 | 120 | 75 | 5 | 962 | |
| 100CLZ—4 | 80 | 120 | 55 | 5.2 | 820 | |
| 125CLZ—23 | 160 | 20 | 18.5 | 5 | 496 | |
| 125CLZ—18 | 150 | 68 | 55 | 5 | 806 | |
| 125CLZ—16.5 | 160 | 32 | 30 | 5 | 642 | |
| 125CLZ—13 | 200 | 50 | 55 | 6 | 802 | |
| 125CLZ—12 | 160 | 50 | 45 | 6 | 726 | |
| 125CLZ—12A | 160 | 45 | 45 | 6 | 726 | |
| 125CLZ—9 | 200 | 80 | 90 | 6 | 1082 | |
| 125CLZ—8 | 160 | 80 | 75 | 6 | 982 | |
| 125CLZ—8A | 150 | 75 | 75 | 6 | 982 | |
| 125CLZ—7 | 200 | 125 | 132 | 6 | 1682 | |
| 125CLZ—6 | 160 | 120 | 110 | 6 | 1566 | |
| 125CLZ—5 | 120 | 120 | 90 | 5 | 1368 |
