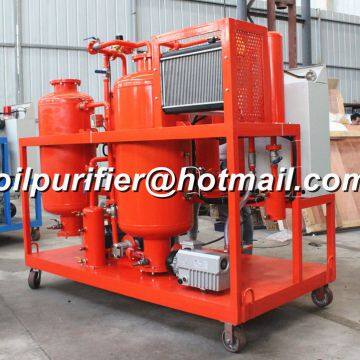

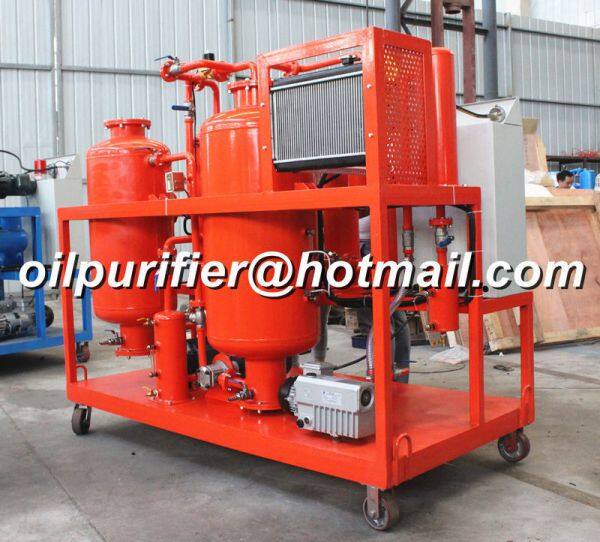

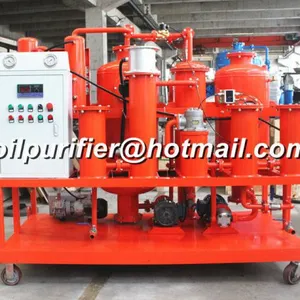

Help CenterVacuum Hydraulic Oil Purifier, Waste Hydaulic Oil Reproductive Machine, Used Lube Oil Cleaning Machine for Degassing,dewater,particle Removale
Related Products
-
Industrial Oil Renewable System, User-friendly Lubricant Oil Recycling Machine, Emulsified White Oil Cleaning EquipmentUS$ 1 - 65000MOQ: 1 Set -
Used Turbine Oil Flushing and Filtration System, Vacuum Lube Turbine Oil Polishing Machine, Specialized Vacuum Internal Combustion Gas Turbine Oil Purification PlantUS$ 1 - 60000MOQ: 1 Set
-
Waste Soya Oil Purifier, Restaurant Cooking Oil Regeneration System, Sunflower Oil Filtration FacilityUS$ 1 - 60000MOQ: 1 Set
-
Heavy Fuel Oil Separator, Gasoline Oil Dehydration Machine, Coalescence-Separation Light Diesel Oil Filtration PlantUS$ 1 - 40000MOQ: 1 Set
-
Used Oil Impurities Filtration Device by Filtering Paper, Portable Press Plate Oil Purifier, Oil Purifier for Cutting/ Grinding/ Polishing/lapping OilUS$ 1 - 30000MOQ: 1 Set
Usage:
The machine widely suitable for electric power, metallurgy, mine, machinery, chemical industry, transportation, manufacture and food industry etc. and it is particularly used to recover and regenerate all kinds of high precision lubricating oil, including unqualified hydraulic oil, gear oil, refrigerator oil, pressure dissolving machine oil, heat treatment oil anti-rubbing hydraulic oil and so on.
Features & advantages:
1. Breaking emulsification thoroughly by Adopting high-molecule material, After treatment, the oil is very difficult to be emulsified again.
2. Adopting The combination of coalescing separation and vacuum duplex 3D Stereo-Evaporation, Eliminating Water.
3. High Oil Cleanness after treatment-----can be reach NAS 6 Grade (NAS 1638)---With Zhongneng's unique Technology, can remove impurities completely by Double FH Trapezoidal filt element and high-molecule absorbing together.
4. Deep & highly precise FH rectangle filtering System.
5. With the advanced technology to absorbing impurities---by high molecule.
6. Can be work on-line without person.
7. Regeneration device could effectively remove polar materials such as acid, free carbon and so on.
Technical Parameter
Item |
Unit |
TYA-10 |
TYA-20 |
TYA-30 |
TYA-50 |
TYA-100 |
TYA-150 |
TYA-200 |
TYA-300 |
||
Flow Rate |
L/min |
10 |
20 |
30 |
50 |
100 |
150 |
200 |
300 |
||
Vacuum Degree |
MPa |
-0.06 ～ -0.095 |
|||||||||
Working Pressure |
MPa |
≤0.4 |
|||||||||
Temperature |
℃ |
0 ～ 100 |
|||||||||
Power Supply |
3phrase,50Hz, 380V(or as needed) |
||||||||||
Working Noise |
dB(A) |
≤75 |
≤75 |
≤75 |
≤78 |
≤78 |
≤78 |
≤80 |
≤82 |
||
Heating power |
kW |
36 |
40 |
45 |
72 |
80 |
90 |
120 |
135 |
||
Total power |
KW |
38 |
42 |
47 |
75 |
87 |
101 |
135 |
147 |
||
Inlet/outlet caliber |
mm |
25 |
25 |
25 |
32 |
42 |
50 |
50 |
60 |
||
Weight |
Kg |
450 |
550 |
600 |
750 |
850 |
1000 |
1200 |
1500 |
||
Dimension |
Length |
mm |
1500 |
1500 |
1500 |
1600 |
1750 |
1900 |
1900 |
2100 |
|
Width |
mm |
1000 |
1050 |
1050 |
1150 |
1250 |
1600 |
1700 |
1700 |
||
Height |
mm |
1200 |
1600 |
1600 |
1700 |
1800 |
1950 |
2000 |
2100 |
||
Parameter After Purification | |||||||||||
Demulsification value |
min |
New oil ≤15min, running oil ≤30min |
|||||||||
Impurity content |
Micron |
1-5 |
|||||||||
Water Content |
PPM |
≤80 |
|||||||||
Gas Content |
% |
≤o.1 |
|||||||||
Cleanness |
NAS |
≤6 grade |
|||||||||
From the historical leader in oil purification comes the most advanced oil purifier in the world.
Please contact for more technical details and latest price:
Michael Hua is at your service
Email 1: mh@hopufiltration.com
Email 2: oilfilter@aliyun.com
QQ:330713880
Mob: 0086 13896055638
What's App: 0086 13983126457 (for online inquiry)
Tel: +86 23 62538144
Fax:+ 86 23 62538144-3
Website:
Branch 1:
Branch 2:
