Help CenterWaste Soya Oil Purifier, Restaurant Cooking Oil Regeneration System, Sunflower Oil Filtration Facility
Related Products
-
Stainless Steel Cooking Oil Filtration Plant for Biodiesel Production, Peanut Oil, Palm Oil, Sesame Oil Decolorization SystemUS$ 1 - 60000MOQ: 1 Set -
Heavy Fuel Oil Separator, Gasoline Oil Dehydration Machine, Coalescence-Separation Light Diesel Oil Filtration PlantUS$ 1 - 40000MOQ: 1 Set
-
Used Oil Impurities Filtration Device by Filtering Paper, Portable Press Plate Oil Purifier, Oil Purifier for Cutting/ Grinding/ Polishing/lapping OilUS$ 1 - 30000MOQ: 1 Set
-
Low Price Oil Purifier, Particle Removal, Small Oil Purolator, Dirty Lubricant Gear Hydraulic Oil Flushing UnitUS$ 1 - 30000MOQ: 1 Set
-
Fully Automatic Transformer Oil BDV Tester for 100KV, Insulation Oil Test InstrumentUS$ 1 - 10000MOQ: 1 Set
Application:
used cooking oil, dirty vegetable oil, coco oil, trench oil, swill oil,fried oil etc.
Function:
Removes out solid contaminants, water, gases, odor, acid, alcohol etc. from oils.
The treated oil is clean, limpidity, and with good smell. COP is a good purification machine for fried food factory, oil restaurant, cooking oil factory, vegetable oil factory, and waste oil collecting store.
According to the treated oil usages, we can choose different machine body. For edible usage, we suggest choosing stainless steel body; for industrial, we suggest choosing steel carbon body. According to different working place, we recommend skid type and mobile type (Trailer with pneumatic tyre)
Structure and Features:

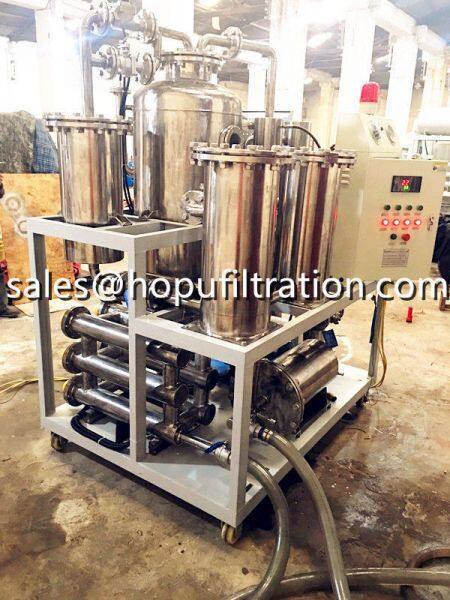

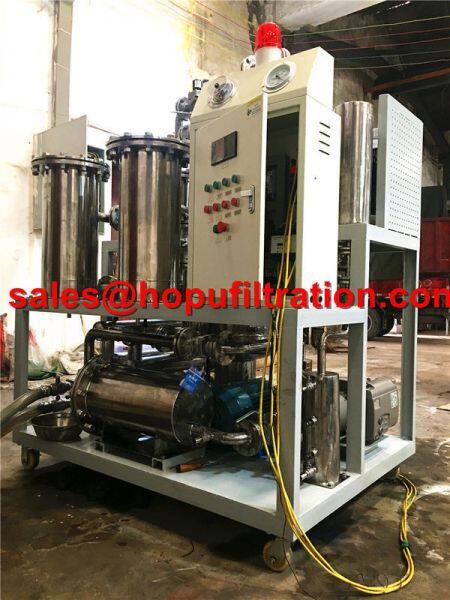

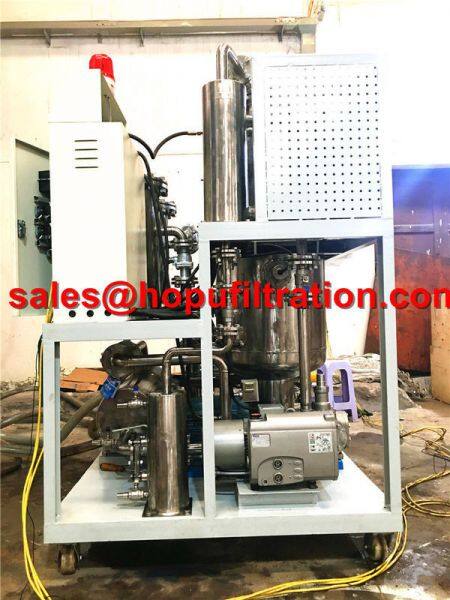

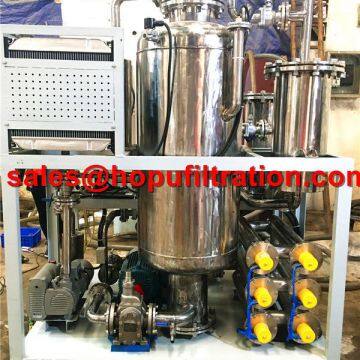

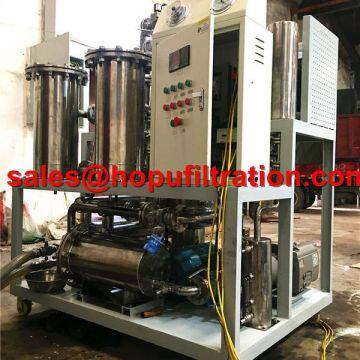

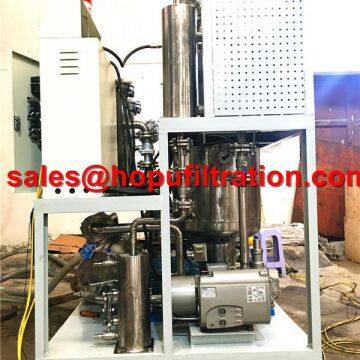

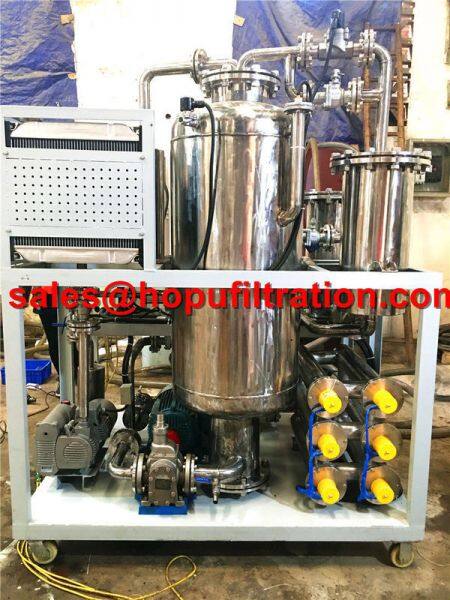

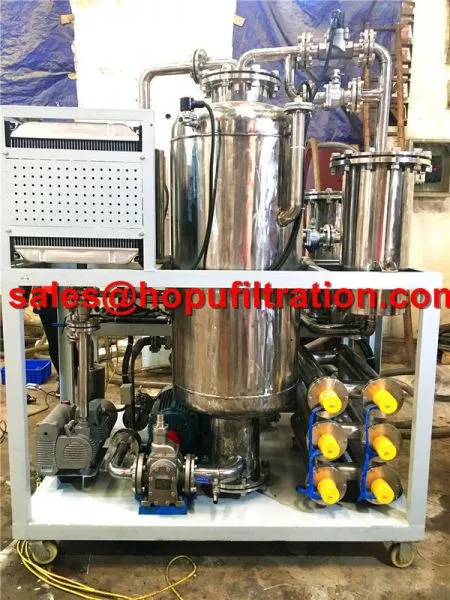

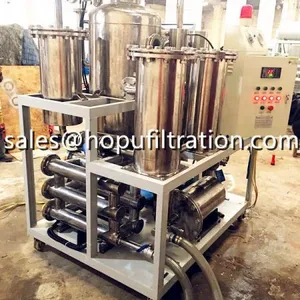

1.HOPU plant is composed of two parts, one is the press filter, and the other is the vacuum oil purifier system. The press filter can remove the big or tiny impurities; The precision of purification can reach to 1 Micro. The vacuum system is equiped with filters of three grade (primary filter, mass water separator, and fine filer). All processes is under vacuum condition.
2. The primary filter, which is made of the stainlessness steel, is anti-rust and anti-corrupt. It mainly removes the residual impurities which escape from the press filter, making sure the treated oil won't have any impurity when it goes into the water separator and vacuum separator.
3. The water separator, which is equiped with a special filter, mainly removes the mass water from the oil. Usually the waste cooking oil contains much water and it need to be removed from the oil. After the water separator, the oil just contains the tiny water and soluble water.
4. After the process of the water separator, the oil will goes into the vacuum separator which adopts three-dimensional duplex evaporation and film evaporation. For protecting the oil nature, it is better that the oil temperature is lower than 80°c. Because our machine works under the vacuum and low pressure condition, so the oil doesn't need to be heated to 100 °c and usually it just need to be heated to 45 °c. Then the tiny water, soluble water, acid, alcohol, other volatility liquid and so on can be removed completely and effectively.
5. For the fine filter, which is equips with the stainless steel filter, the purification hole is less than 1 Micro, which can make sure the filtered oil is completely clear without any impurity.
Technical specs( It will be changed as customer's requirements)
Item |
Unit |
COP-10 |
COP-20 |
COP-30 |
COP-50 |
COP-100 |
COP-150 |
COP-200 |
COP-300 |
|
Flow Rate |
L/min |
10 |
20 |
30 |
50 |
100 |
150 |
200 |
300 |
|
Vacuum Degree |
MPa |
-0.06 ～ -0.095 |
||||||||
Working Pressure |
MPa |
≤0.4 |
||||||||
Temperature |
℃ |
0 ～ 100 |
||||||||
Power Supply |
3phrase,50Hz, 380V(or as needed) |
|||||||||
Working Noise |
dB(A) |
≤75 |
≤75 |
≤75 |
≤78 |
≤78 |
≤78 |
≤80 |
≤82 |
|
Heating power |
kW |
36 |
40 |
45 |
72 |
80 |
90 |
120 |
135 |
|
Total power |
KW |
38 |
42 |
47 |
75 |
87 |
101 |
135 |
147 |
|
Inlet/outlet caliber |
mm |
25 |
25 |
25 |
32 |
42 |
50 |
50 |
60 |
|
Weight |
Kg |
450 |
550 |
600 |
750 |
850 |
1000 |
1200 |
1500 |
|
Dimension |
Length |
mm |
1500 |
1500 |
1500 |
1600 |
1750 |
1900 |
1900 |
2100 |
Width |
mm |
1000 |
1050 |
1050 |
1150 |
1250 |
1600 |
1700 |
1700 |
|
Height |
mm |
1200 |
1600 |
1600 |
1700 |
1800 |
1950 |
2000 |
2100 |
|
Guarantee Value
Item |
Guarantee indexes |
Moisture content |
≤50 PPM |
Demulsification value |
New oil≤15min,running oil≤30min |
Impurity size |
≤1 micron (no free carbon) |
Gas content |
≤0.1% |
Clean degree |
≤4 Grade (NAS1638) |
Please contact for more technical details and latest price:
