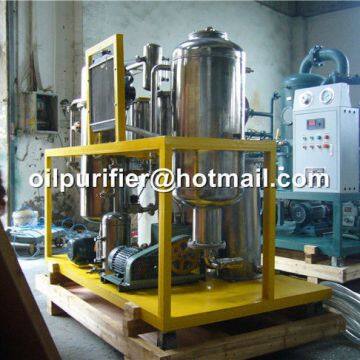

industrial oil renewable system, User-friendly Lubricant Oil Recycling Machine, Emulsified White Oil Cleaning Equipment
- 500 Set / Sets per Month
- Shanghai, Qingdao, Chongqing, Guangzhou, Shenzhen
- T/T L/C Other
- 7 days
- ShuoBao stainless steel filter 304/316 with PP filter bag for water pretreatment system
- ShuoBao water filter housing stainless high flow for water pretreatment system
- ShuoBao 1 micron water filter with liquid filter bag for PCB
- Shuobao all size stainless water filter housing for water filtration
- Shuobao International Standard Stainless Steel cartridge filter 304/316
- SUS 304 cartridge filter High-Temperature Resistant Steel
Product Details
Brand Name: | HOPU | Place of Origin: | China | Model Number: | TYA-I |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Applications:
The machine widely suitable for electric power, metallurgy, mine, machinery, chemical industry, transportation, manufacture and food industry etc. and it is particularly used to recover and regenerate all kinds of high precision lubricating oil, including unqualified hydraulic oil, gear oil, refrigerator oil, pressure dissolving machine oil, heat treatment oil anti-rubbing hydraulic oil and so on.
Features & advantages:
1. Breaking emulsification thoroughly by Adopting high-molecule material, After treatment, the oil is very difficult to be emulsified again.
2. Adopting The combination of coalescing separation and vacuum duplex 3D Stereo-Evaporation, Eliminating Water.
3. High Oil Cleanness after treatment-----can be reach NAS 6 Grade (NAS 1638)---With Zhongneng's unique Technology, can remove impurities completely by Double FH Trapezoidal filt element and high-molecule absorbing together.
4. Deep & highly precise FH rectangle filtering System.
5. With the advanced technology to absorbing impurities---by high molecule.
6. Can be work on-line without person.
7. Regeneration device could effectively remove polar materials such as acid, free carbon and so on.
Technical Parameter
Item | Unit | TYA-10 | TYA-20 | TYA-30 | TYA-50 | TYA-100 | TYA-150 | TYA-200 | TYA-300 | ||
Flow Rate | L/min | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 | ||
Vacuum Degree | MPa | -0.06 ~ -0.095 | |||||||||
Working Pressure | MPa | ≤0.4 | |||||||||
Temperature | ℃ | 0 ~ 100 | |||||||||
Power Supply | 3phrase,50Hz, 380V(or as needed) | ||||||||||
Working Noise | dB(A) | ≤75 | ≤75 | ≤75 | ≤78 | ≤78 | ≤78 | ≤80 | ≤82 | ||
Heating power | kW | 36 | 40 | 45 | 72 | 80 | 90 | 120 | 135 | ||
Total power | KW | 38 | 42 | 47 | 75 | 87 | 101 | 135 | 147 | ||
Inlet/outlet caliber | mm | 25 | 25 | 25 | 32 | 42 | 50 | 50 | 60 | ||
Weight | Kg | 450 | 550 | 600 | 750 | 850 | 1000 | 1200 | 1500 | ||
Dimension | Length | mm | 1500 | 1500 | 1500 | 1600 | 1750 | 1900 | 1900 | 2100 | |
Width | mm | 1000 | 1050 | 1050 | 1150 | 1250 | 1600 | 1700 | 1700 | ||
Height | mm | 1200 | 1600 | 1600 | 1700 | 1800 | 1950 | 2000 | 2100 | ||
Parameter After Purification | |||||||||||
Demulsification value | min | New oil ≤15min, running oil ≤30min | |||||||||
Impurity content | Micron | 1-5 | |||||||||
Water Content | PPM | ≤80 | |||||||||
Gas Content | % | ≤o.1 | |||||||||
Cleanness | NAS | ≤6 grade |
