Home > Industrial Equipment & Components > Filtration Equipment & Parts > Industrial Water Filter > Double Stage Vacuum Transformer Oil Reproductive Machine With Resistance To High Voltage, Dielectric Oil Particles or Sludge Flushing System, Old Transformer Oil Recycling Machine

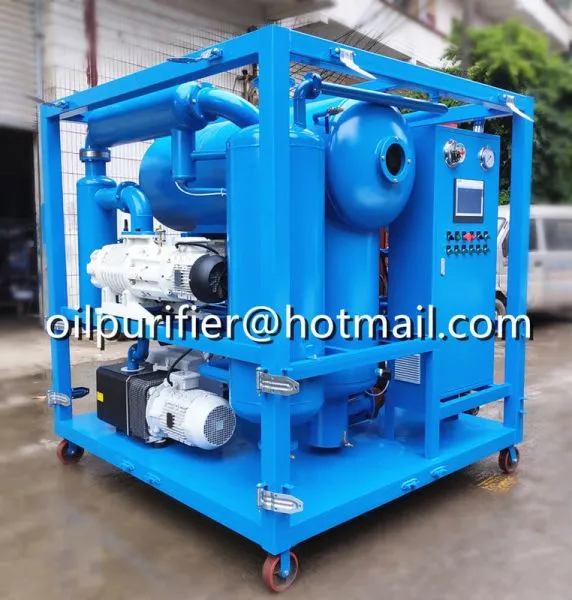

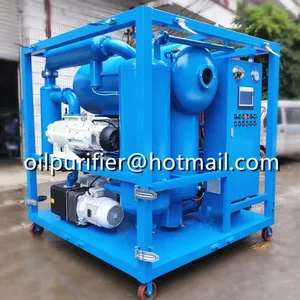

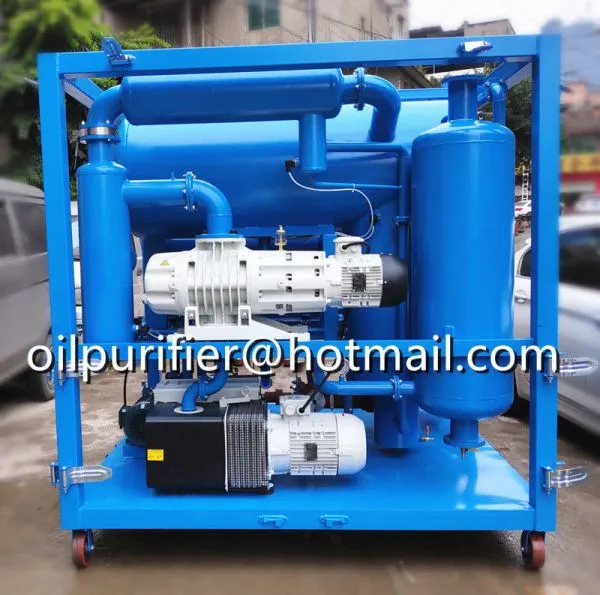

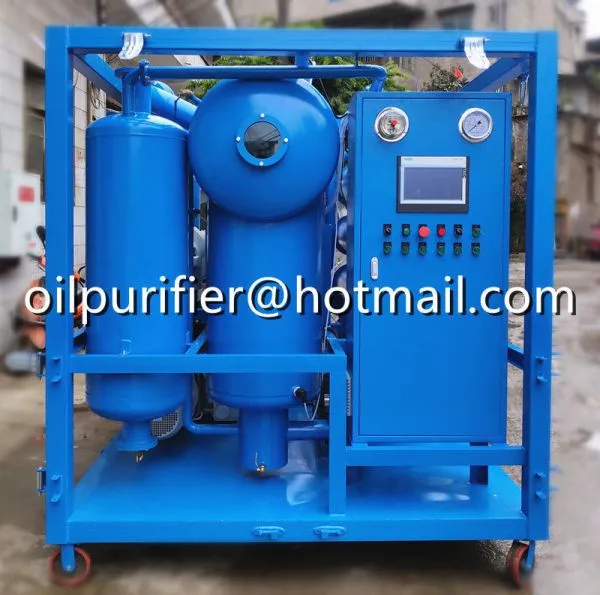

Double Stage Vacuum Transformer Oil Reproductive Machine With Resistance To High Voltage, Dielectric Oil Particles or Sludge Flushing System, Old Transformer Oil Recycling Machine

Name: Double Stage Vacuum Transformer Oil Reproductive Machine With Resistance To High Voltage, Dielectric Oil Particles or Sludge Flushing System, Old Transformer Oil Recycling Machine
Brand: HOPU
SKU: 161422411

Double Stage Vacuum Transformer Oil Reproductive Machine With Resistance To High Voltage, Dielectric Oil Particles or Sludge Flushing System, Old Transformer Oil Recycling Machine thumbnail-1

US$ 10000 - 60000 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

HOPU

Place of Origin:

China

Model Number:

ZYD-I

Contact Supplier Request Quote Chat Now

Chongqing HOPU Filtration Plant Manufacture Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai, Qingdao, Chongqing, Guangzhou, Shenzhen

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name HOPU

Place of Origin China

Model Number ZYD-I

After-sales Service Provided Engineers available to service machinery overseas

Transformer Oil Regeneration

As transformer oil ages, it oxidizes and begins to break down. During this time, oil purification which effectively removes moisture, solids and gaseous contamination will not be able to remove other by-products from the aging transformer oil. The by-products of the degradation process include acids, aldehydes, and peroxides, which bind together to form sludge.

Sludge attacks the cellulose insulation, inhibits oil flow and traps heat inside the transformer. Eventually the dielectric gap will be bridged, thus, resulting in failure of the transformer.

Oil Regeneration Extends Transformer Unit Life

Deding mobile regeneration system restores transformer oil by removing acidity, sludge, soluble oil decay products and improves oil colour with Fullers earth treatment technology. When the treatment is complete, the regenerated oil meets or exceeds international standards for new oil with lower acidity and improved tan delta, interfacial tension, and oxidation stability. The cellulose insulation and internal components of the transformer also benefit from the flushing effect of multiple passes of hot regenerated oil, which helps remove decay products and sludge from internal surfaces.

Advantages of Oil Regeneration

· Extends the transformer life by restoring the qualities of the transformer oil to be similar to new oil condition

· Oil Regeneration is much less costly than changing new oil

· Minimal downtime as a result no revenue loss as Oil Regeneration can be performed ‘on-inline or live’/ energized transformer

· Environmentally friendly as the existing oil is reused. There will also be no hazard from oil spills and PCB contamination, including the trouble with the disposal of old oil

· Oil Regeneration removes the sludge build up and deposited on the internal core and coils of the transformer, which a traditional oil change will not

· Oil Regeneration can be continuously performed in most weather conditions and will not run the risk of exposing the internal transformer core to adverse weather conditions during an oil change

Additional System Features

· Support for energized and non-energized transformers

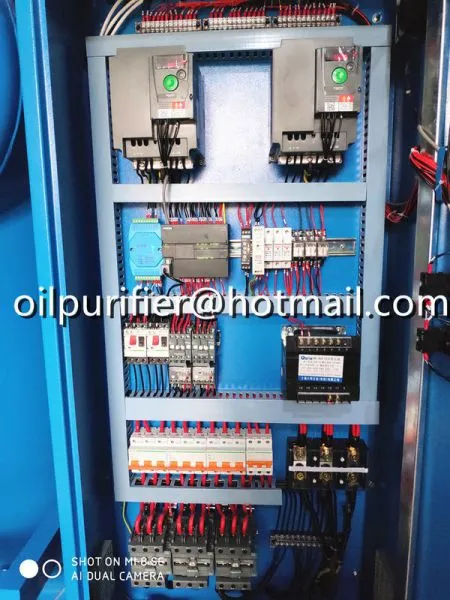

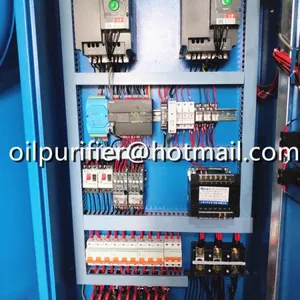

· Fully automated operation controls

· Leak proof base can be mounted in a semi-trailer

Technical parameter:

Parameter		Unit	ZYD-I-30	ZYD-I-50	ZYD-I-100	ZYD-I-150	ZYD-I-200	ZYD-I-250	ZYD-I-300
Flow rate		L/h	1800	3000	6000	9000	12000	15000	18000
Working vacuum		MPa	-0.08~-0.099
Working pressure		MPa	≤0.3
Temperature		℃	20 ~ 80
Power			3 ph 380V 60Hz (Or as needed)
Working noise		dB(A)	75	75	75	75	80	80	80
Heating power		kW	30	30	45	60	75	90	120
Total power		kW	35.5	37.5	52.5	71.4	86.5	102.5	135
Oil Inlet/Outlet		mm	φ25	φ32	φ42	φ50	φ50	φ60	φ60
Weight		Kg	600	800	1050	1400	1800	2000	2200
Size	Length	mm	1050	1100	1200	1450	1600	1800	1900
	Width	mm	750	800	950	950	1100	1200	1200
	Height	mm	1350	1400	1500	1650	1800	1900	1900
