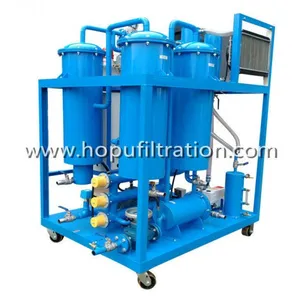

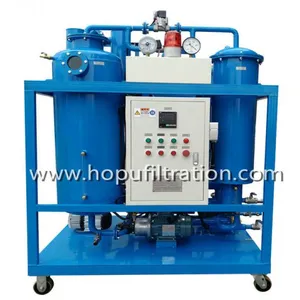

Help CenterUsed Turbine Oil Flushing and Filtration System, Vacuum Lube Turbine Oil Polishing Machine, Specialized Vacuum Internal Combustion Gas Turbine Oil Purification Plant
Related Products
-
Gas Turbine Oil Purification Machine, Senescent Turbine Oil Filtration Plant, Breaking Emulsification,dehydrationUS$ 1 - 60000MOQ: 1 Set -
Waste Soya Oil Purifier, Restaurant Cooking Oil Regeneration System, Sunflower Oil Filtration FacilityUS$ 1 - 60000MOQ: 1 Set
-
Heavy Fuel Oil Separator, Gasoline Oil Dehydration Machine, Coalescence-Separation Light Diesel Oil Filtration PlantUS$ 1 - 40000MOQ: 1 Set
-
Used Oil Impurities Filtration Device by Filtering Paper, Portable Press Plate Oil Purifier, Oil Purifier for Cutting/ Grinding/ Polishing/lapping OilUS$ 1 - 30000MOQ: 1 Set
-
Low Price Oil Purifier, Particle Removal, Small Oil Purolator, Dirty Lubricant Gear Hydraulic Oil Flushing UnitUS$ 1 - 30000MOQ: 1 Set
Application:

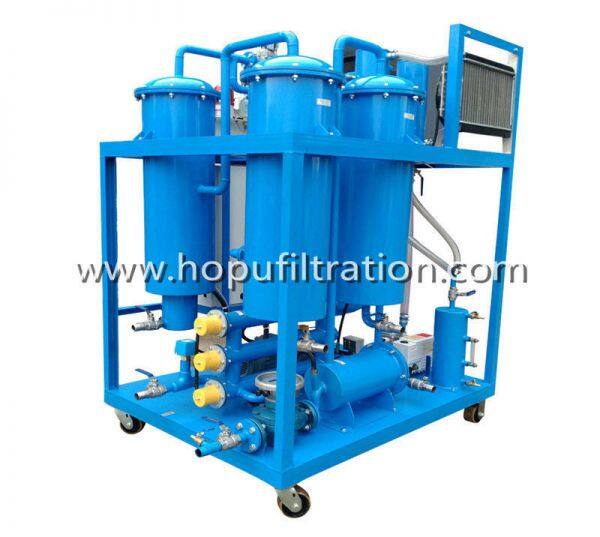

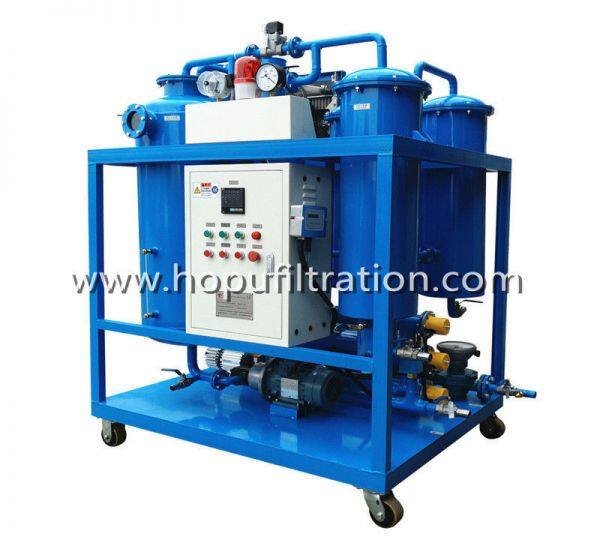

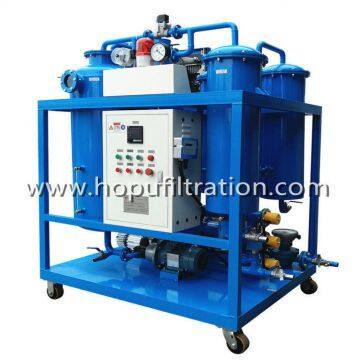

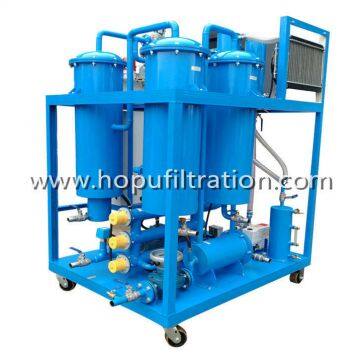

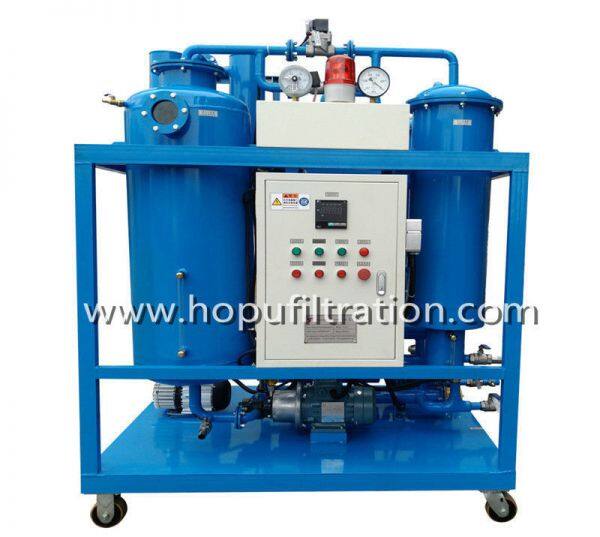

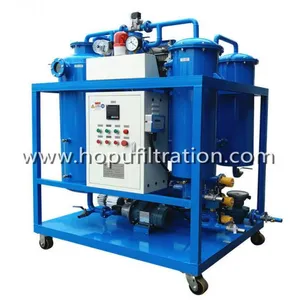

Series TY oil purifier is widely used for filtering turbine lubricating oil in electric power, metallurgical, chemical engineering industries. It is good at emulsion breaking, dehydration and removing soap, gelatin, acid, pigment and metal particulates in emulsified turbine oil and low-viscosity lubricating oil as well as turbine oil used in other machinery and electric power equipment.
Features:
1. It adopts the coalescence and separation and duplex-stereo film evaporation technology. It is also equipped with unique and advanced dehydrating and degassing components, which can rapidly and effectively separate water and gas from oil.
2. It has optimized electric heating system with automatic constant temperature controller, which ensures oil temperature is even and stable.
3.Precise multi-stage filtration system helps to remove different kinds of impurities with high quality filter element with better ability of containing pollutants and long service life.
4.Advanced infrared oil level control system and pressure protection device make operation simple and safe.
5.It can purify any kinds of turbine oil used in steam turbine and water turbine online and onsite.

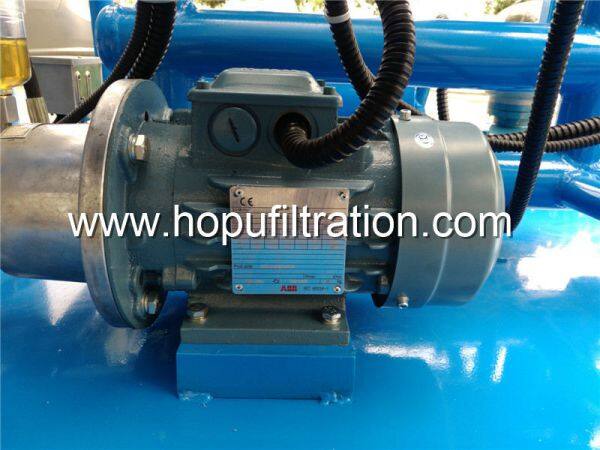

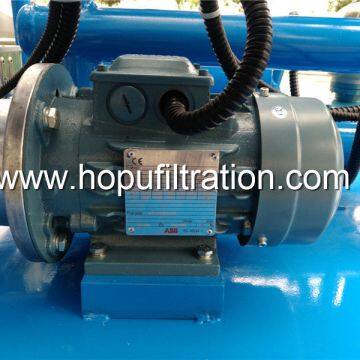

6.Air cooling system helps to cool down air and gases from the vacuum vessel so as to extend the service life of vacuum pump, which avoids the inconvenience of water cooling.
7.The machine can also be installed with digital flow meter and timer to calculate and record the volume of output oil and working hours (it’s optional).
8. Aluminum electric control cabinet has the merits of heat conducting and anti-explosion.
Technical Parameters
Item |
Unit |
TY-10 |
TY-20 |
TY-30 |
TY-50 |
TY-100 |
TY-150 |
TY-200 |
TY-300 |
Flow rate |
L/min |
10 |
20 |
30 |
50 |
100 |
150 |
200 |
300 |
Vacuum degree |
MPa |
-0.06～–0.095 |
|||||||
Working pressure |
MPa |
≤ 0.4 |
|||||||
Temperature degree |
20 ~80 |
||||||||
Power supply |
380V/50HZ/3Ph 5 wire(as customer’s requirement) |
||||||||
Working noise |
dB(A) |
≤65~80 |
|||||||
Working time |
H |
≥ 4000 |
|||||||
Continuous working time |
H |
150 |
|||||||
Electric heating degree |
kW |
12 |
15 |
18 |
24 |
45 |
60 |
72 |
84 |
Total electric power |
kW |
14 |
17 |
20 |
27 |
48 |
66 |
81 |
97 |
Outlet(inlet)caliber |
mm |
Φ25 |
Φ25 |
Φ25 |
Φ32 |
Φ42 |
Φ50 |
Φ50 |
Φ60 |
Weight |
kg |
400 |
450 |
500 |
600 |
800 |
1000 |
1100 |
1550 |
Length |
mm |
1500 |
1550 |
1600 |
1650 |
1700 |
1750 |
1900 |
2000 |
Width |
mm |
800 |
850 |
900 |
950 |
1000 |
1200 |
1300 |
1350 |
Height |
mm |
1600 |
1650 |
1700 |
1750 |
1800 |
1800 |
2000 |
2100 |
Performance Index after processing:
Item |
Index after processing |
Content of granule |
≤ Grade 6 (NAS 1638) |
Content of water |
≤ 80ppm |
Emulsifying Value |
≤ 15min (GB/T 7605) |
Flash Point |
|
Rust Test in Liquid Phase |
GB/T 3536 |
The Machine miscellaneous Quality |
No (GB/T511) |
