Popular design trapezoidal glazed double layer metal roofing sheet making machine
1.Working flow
2.Technical parameter
Main parameters of double layer wall roof house metal roofing roll forming machine | ||
1 |
Suitable to process |
Color steel plate, galvanized sheet, aluminum coils and etc. |
2 |
Width of the feeding material |
1200mm/1000mm |
3 |
Roller station |
18rows |
4 |
Thickness of feeding material |
0.3-0.8mm |
5 |
Productivity |
1-30m/min |
6 |
Rollers' material |
45# forging steel |
7 |
Diameter of shaft |
70 mm |
8 |
Weight |
About 4.0 T |
9 |
Size |
8.0*1.45*1.55mm |
10 |
Voltage |
380V 50Hz 3phases |
11 |
Roller's material |
45# forging steel |
12 |
Wall thickness of main forming machine |
16mm steel plate
|
13 |
Main forming machine body |
350 mm H steel |
14 |
Motor power |
4kw |
15 |
Voltage |
380V, 50Hz,3Phase |

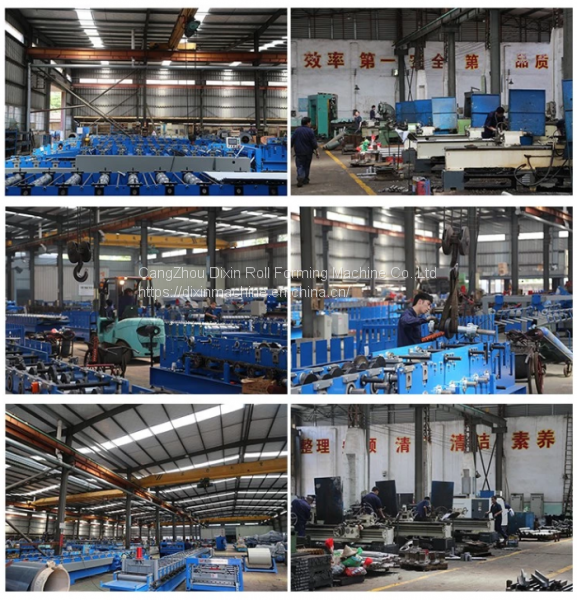

3.Our company
Cangzhou Dixin Roll Forming Machine Co.,Ltd,Our company is the professional and leading manufacture,can manufacture ,design,installation and debug various roll forming machines and metal processing sheet equipments ,which produce metal roof wall panel,glazed roof tile , CZ steel purlin,floor desking,roof ridge cap,sandwich panel ,roof rtruss,shutter panel,shutter slat,door frame, guardrail ,and metal sheet uncoiler ,bending ,slitting,cutting,flattening,punching,crimpingl. especially can design machine according to customer's request.
4.Service
1.We can produce the specialmachine,send your drawing to us,we can desgin for you.
2. If you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3We provude a one year warranty and lifelong technical support,wa can send our technical to you to give you on-site training.The training period would be for no more than one week with the customer paying for the visa,return ticket,food ,accommodations and a daily wage of US100
4. Engineer available to service machinery overseas.
5. If you come to visit our factory ,we can book the room for you,car pick up to send.
1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
2.Port:TIANJIN XINGANG PortLead .
3.Time: Shipped in 35 days after payment.
Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.
Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
