Argentina corrugated trapezoidal two profile roof tile roll forming machine
1.Panel drawing
Color Steel Ridge Tile Roofing Cold Roll Forming Machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling the coil, continuous rolling and cold-forming, automatically cut to the size and output the finished panel. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.

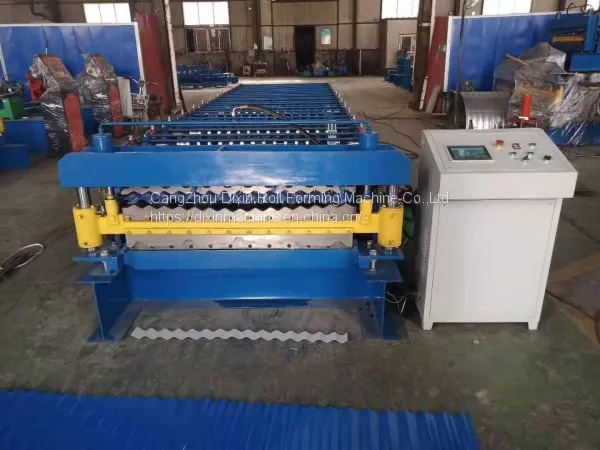

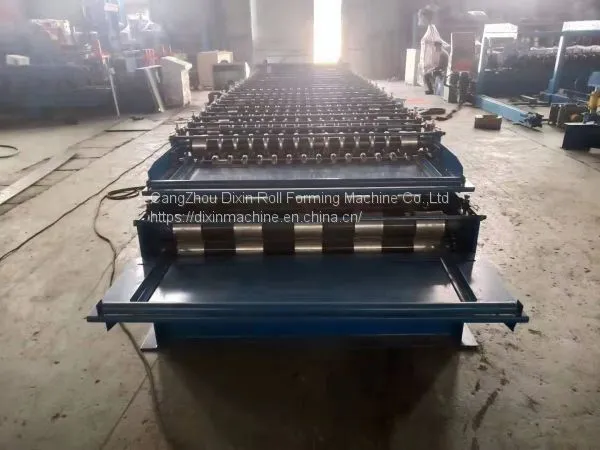

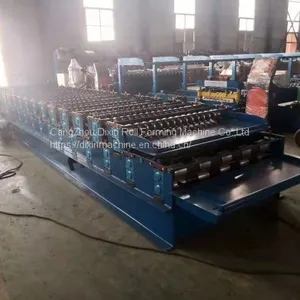

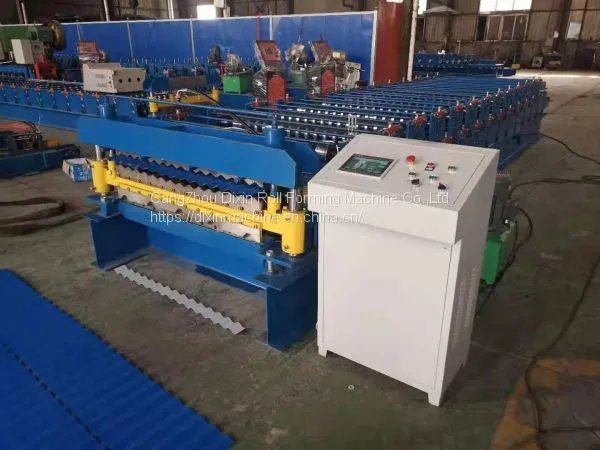

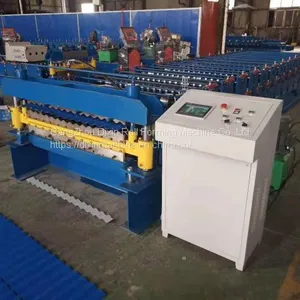

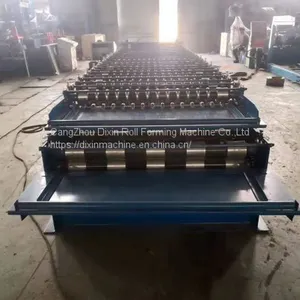

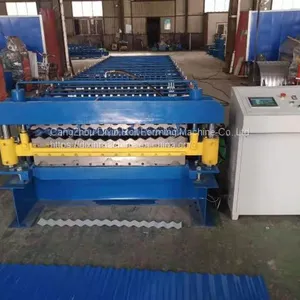

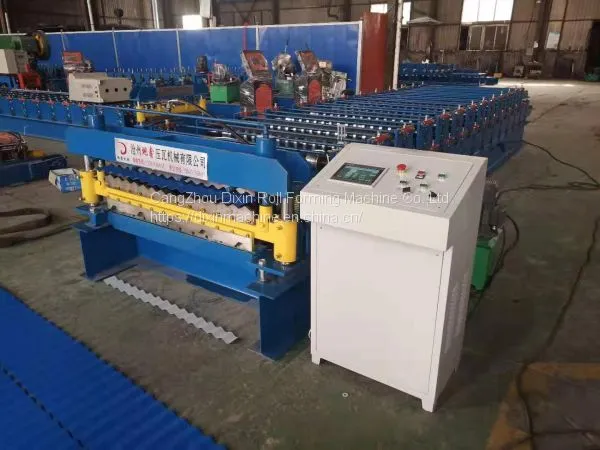

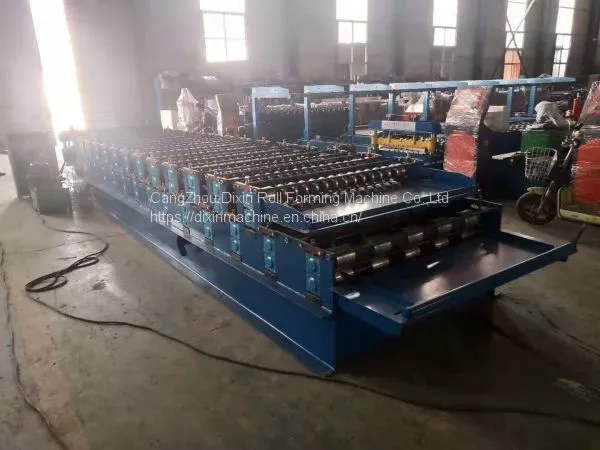

2.Pictures
3.Technical parameter
| Specifications for double deck roll forming machine | ||
| 1 | Processing material | aluzinc/galvanized steel/colored steel coil |
| 2 | Material thickness | 0.3-0.8mm |
| 3 | Main motor power | 4 kw |
| 4 | Pump power | 4 kw |
| 5 | Shaft diameter | 75mm |
| 6 | Forming steps | 13 steps |
| 7 | Roller material | 45# forged steel, with hard chrome plating |
| 8 | Main frame | 300H steel |
| 9 | Medium plate thickness | 16mm |
| 10 | Control systerm | PLC computer control with inverter |
| 11 | Power supply | 380V, 3 Phase, 60Hz or as your requirement |
Working flow
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc. We can satisfy the different needs of different markets.
1. Free technical support and free accessories supply.
2. Engineer available to service machinery overseas.
3. One year warranty is provided.
4. Long life technical guidance for free.
5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.
We have the most professional technical team And many years of rich production experience.Start with the selection of raw materials.We produce and process each process carefully.Only hope the customer can use the best machine.
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.
Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
Q6. If I am in Beijing,or Shanghai ,how to visit your company?
A6: 1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
