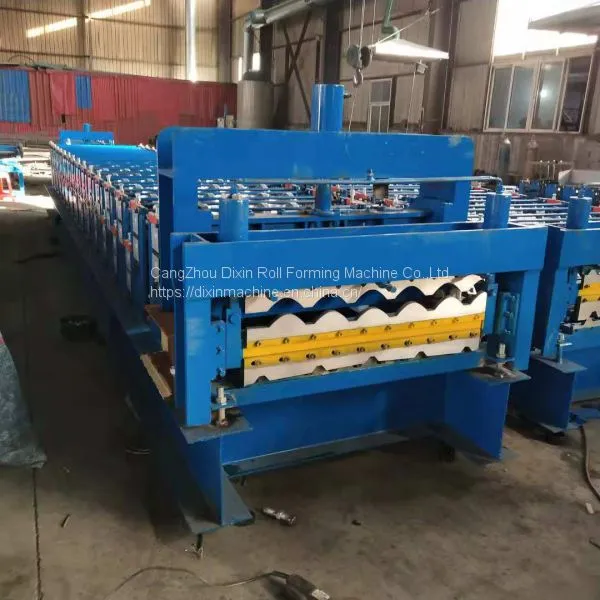

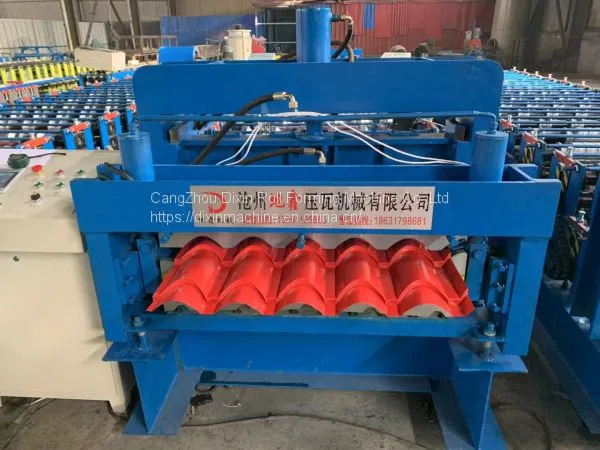

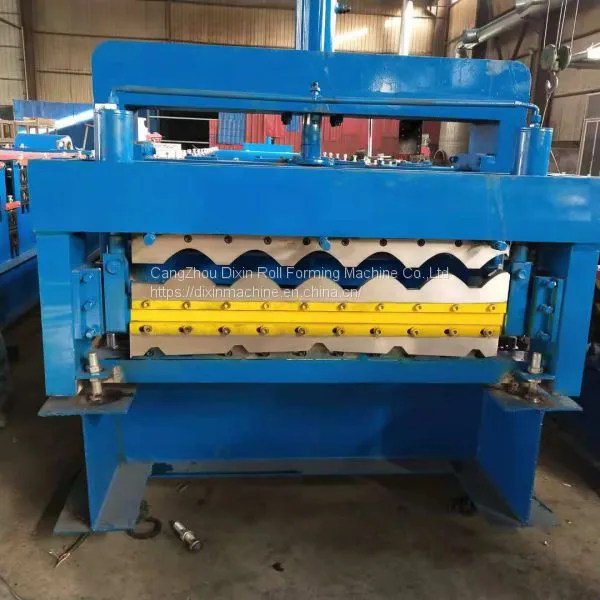

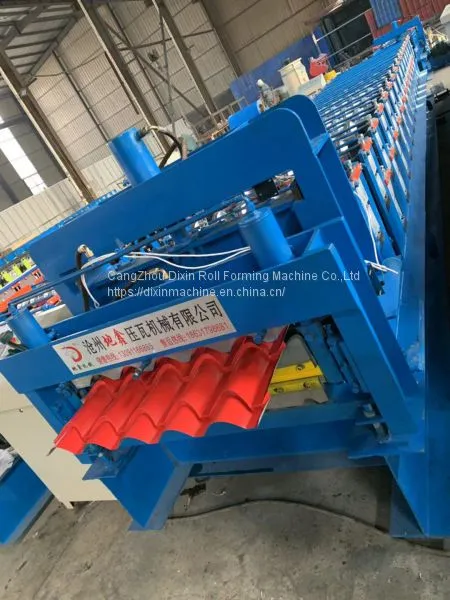

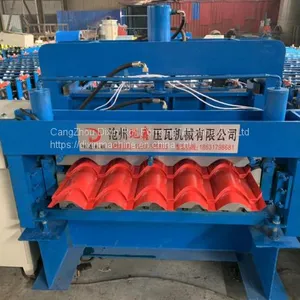

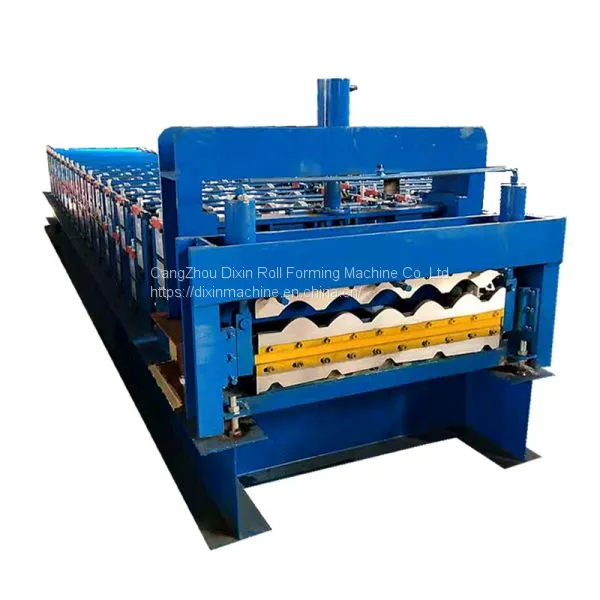

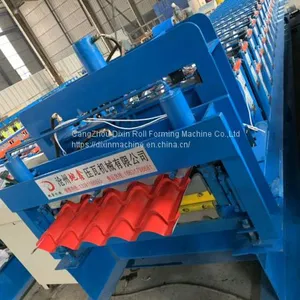

Bamboo color glazed tile trapezoidal roof sheet roll forming machine
- The production size we can design the machine all as customize,customer just show us the profile drawing material thickness width, we can design the machine according as the request
- When we finish the machine, we will test the machine and adjust the machine many times to be sure the machine have a perfect status and when customer receive the machine, the machine can be used very easy
Technical parameter
No |
Item |
Parameter |
01 |
Material feeding width |
1000mm |
02 |
Material thickness |
0.3~1.0mm |
03 |
Uncoiler |
Manual Uncoiler |
04 |
Loading weight |
5ton |
05 |
Forming speed |
8-15m/min |
06 |
Forming Steps |
16 stations |
07 |

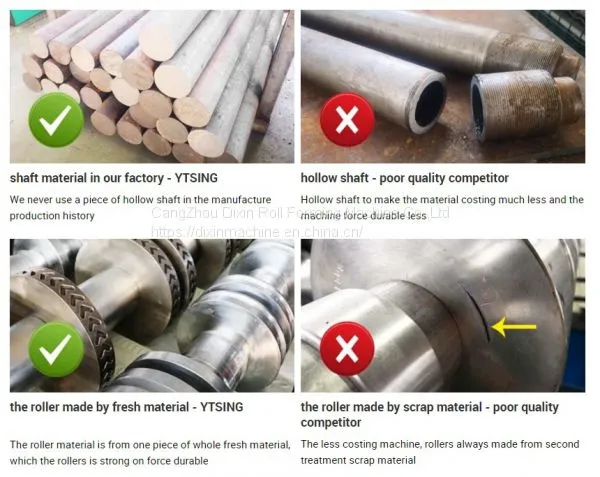

Shafts materials |
45# high quality steel |
08 |
Shafts diameter |
70mm |
09 |
Roller materials |
45# high quality steel, hard chrome coated 0.05mm |
10 |
Transmission |
Chains-sprockets |
11 |
Main motor power |
11kw |
12 |
Cutting blade |
Cr12 with quenched treatment 60-62 |
13 |
Hydraulic power |
5.5kw |
14 |
Weight | Approx 6.2t |
15 |
Overall dimensions |
8600x1500x1300mm |

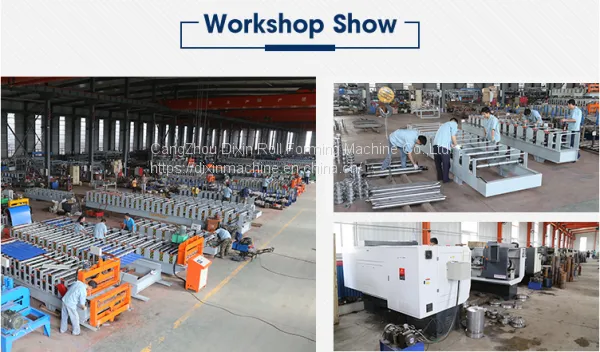

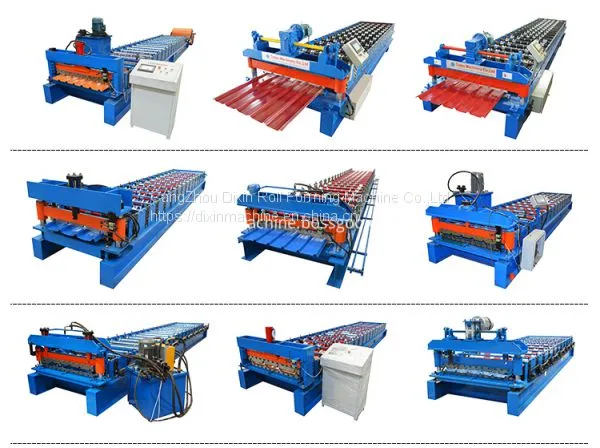

Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.

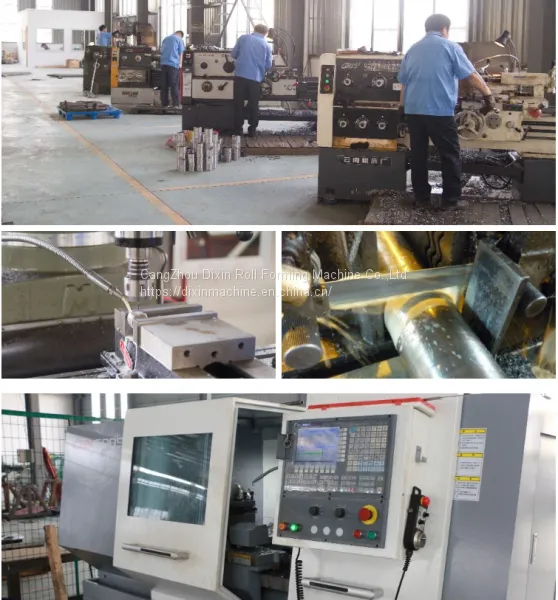

Backed by reasonable design, precision machining and selected material, both our standard and customized machines a0re characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc. We can satisfy the different needs of different markets.
Service
1. Free technical support and free accessories supply.
2. Engineer available to service machinery overseas.
3. One year warranty is provided.
4. Long life technical guidance for free.
5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also
train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary
things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling.
Terms of payment
1) Payment: 30% T/T prepaid, and pay the balance before shipping.
2) Delivery time: 30 working days.
3) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
4) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.
5) Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and CD to teach you to install and operate.
c. COST OF INSTALLATION:
The buyer should pay the installation charges (USD 80 one man one day). To the seller’s appointed account by T/T before the seller’s technicians go to the buyer’s factory. The buyer pays the seller’s technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.
FQA
1. what is your guarantee period?
Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.
machine in my factory?
2.How to visit our company:
A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou West station (1 hour),then we can pick up you.
B.Fly to Tianjin Airport: By high speed train From Tianjin West station to Cangzhou West station ,then we can pick up you.
