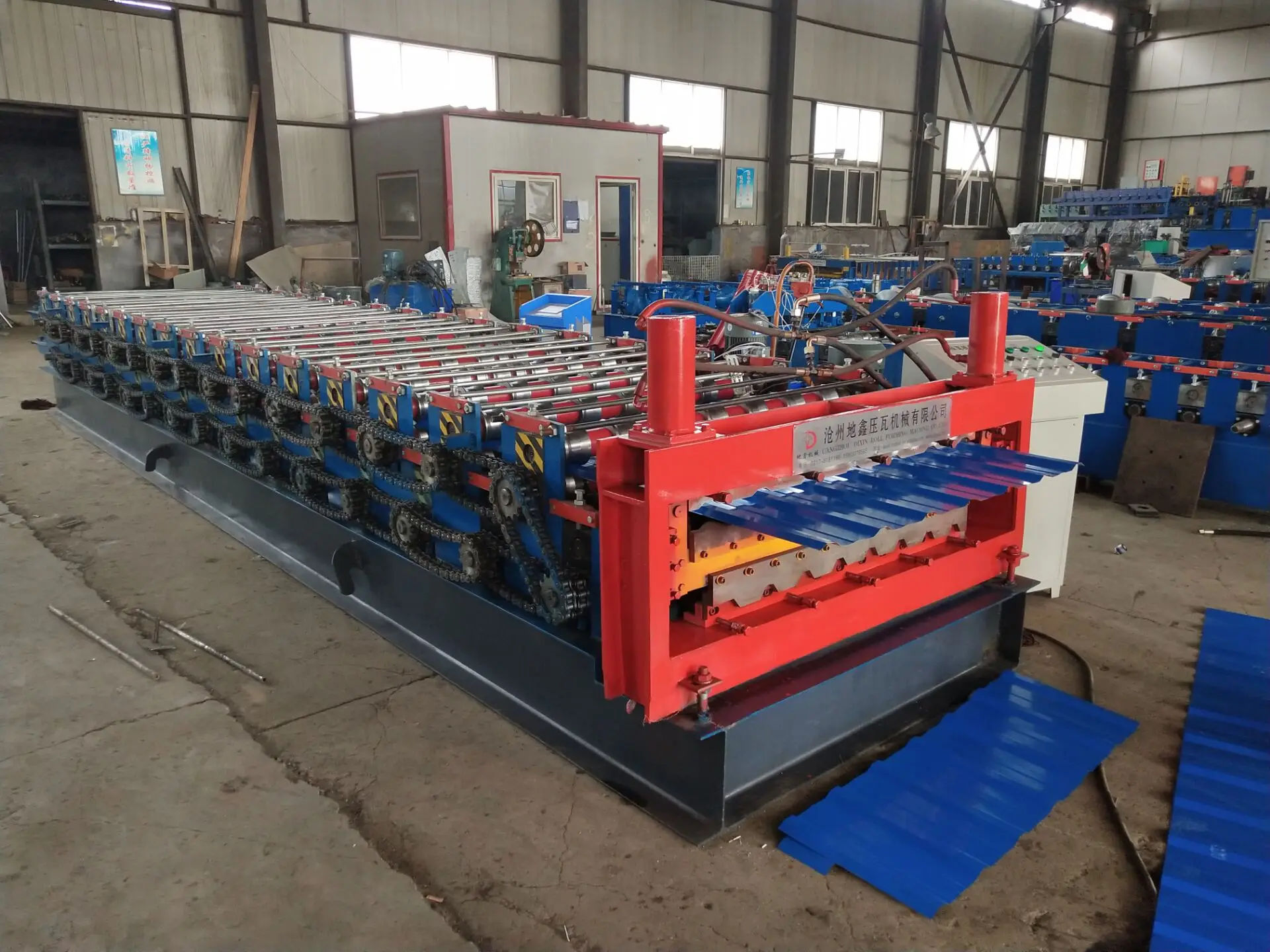

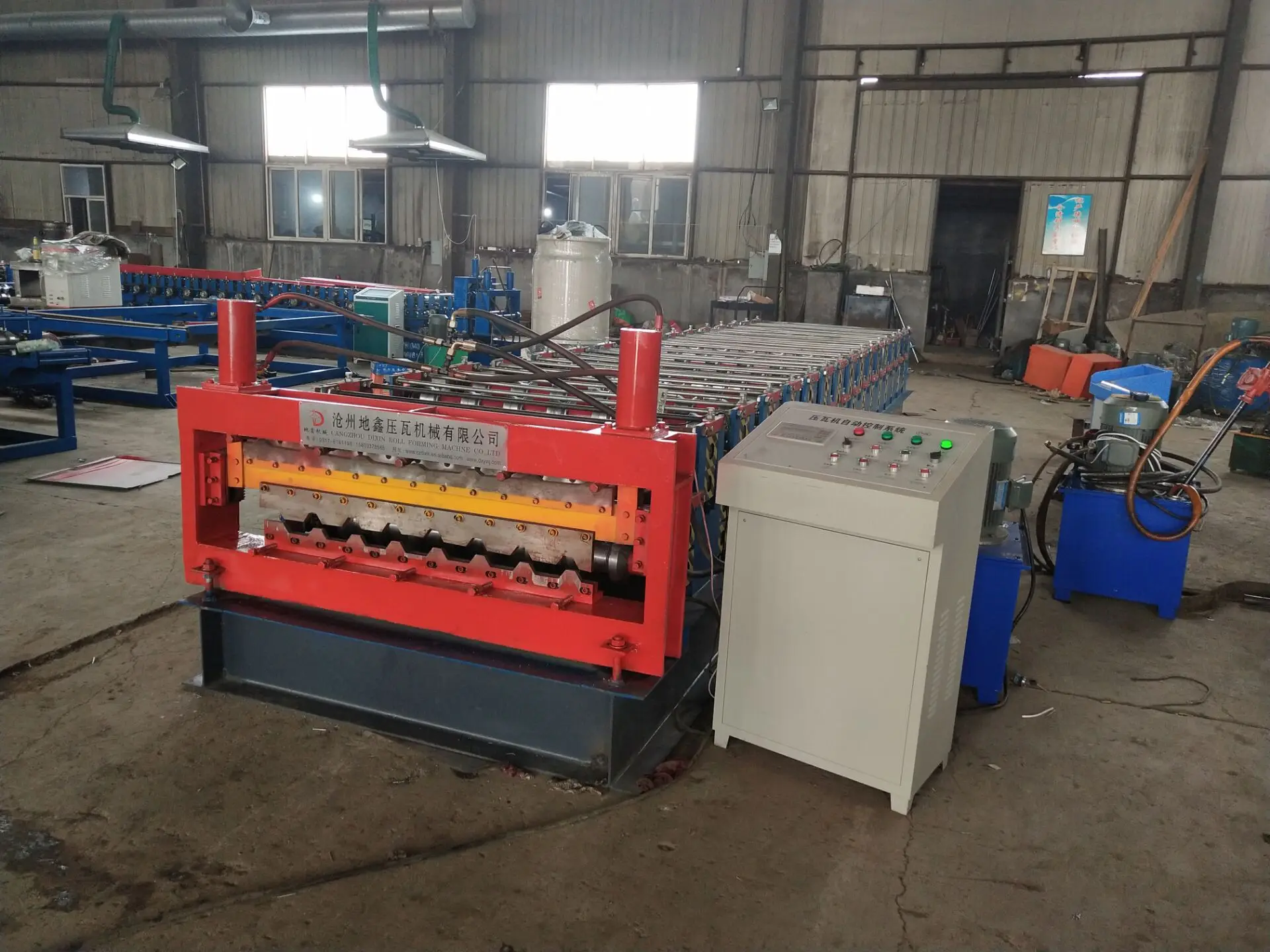

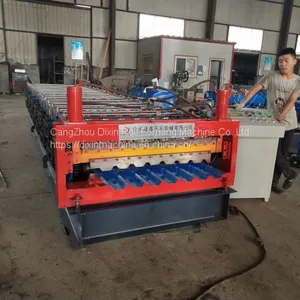

IBR roofing steel tile double cold former roll forming machine with high quality
Product Application:

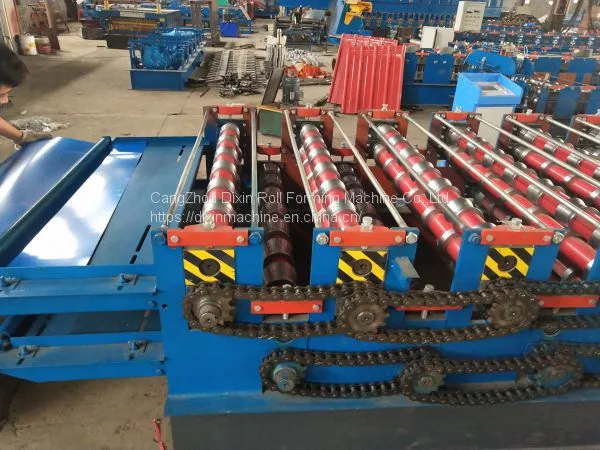

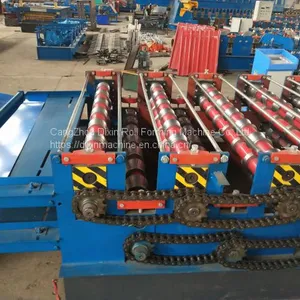

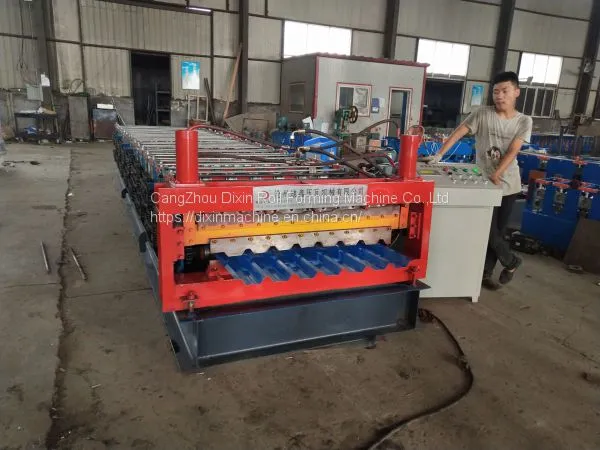

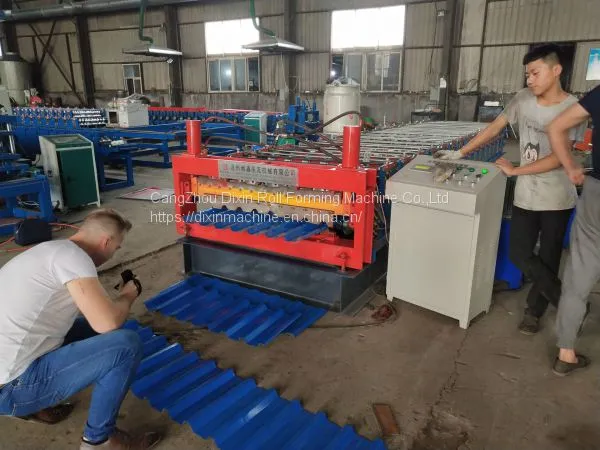

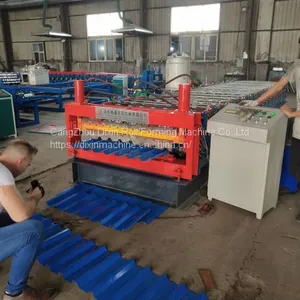

1.This corrugated roof roll forming machine is made up of roll forming machine, molding press, cutting machine, PLC computer control and hydraulic system.
2.Roll forming machine is stable, no noise, no shake.
3.Controlling by computer, PLC display, operation is easy, running is steady and reliable, endurable, maintenance-free.
4.Cutting machine is characterized by stable driving, easy operation.
5.Hydraulic system use the CDF-10 hydraulic pump, long operating life, no noise.
Technical parameter
No. |
Item |
Specification |
1 |
Can Formed Material |
PPGI,GI,AI |
2 |
Equipment operation |
Automatic |
3 |
Voltage |
380V 60Hz 3Phase or as your requirement |
4 |
Thickness of sheet (mm) |
0.3-0.6mm |
5 |
Material width(mm) |
As your requirement |
6 |
Cover Width of the sheet after formed |
as your drawing |
7 |
The size of the roll forming machine |
7500mmx1600mmx1750mm |
8 |
Speed |
0-15m/min |
9 |
Diameter of shaft |
70mm |
10 |
Weight of the Machine |
8000-9500KGS |
11 |
Material of rollers |
C45 steel quenched and chromed |
12 |
Motor brand |
Siemens or Guomao |
13 |
PLC |
Siemens or Delta or Mitsubushi |
14 |
Total power (kw) |
9.5kw |
15 |
Power of hydraulic system |
5.5kw |
16 |
Power of main molding core |
4kw |
Features of this producing line:
·lower cost
·high efficiency
·reliable working
·low energy consumption

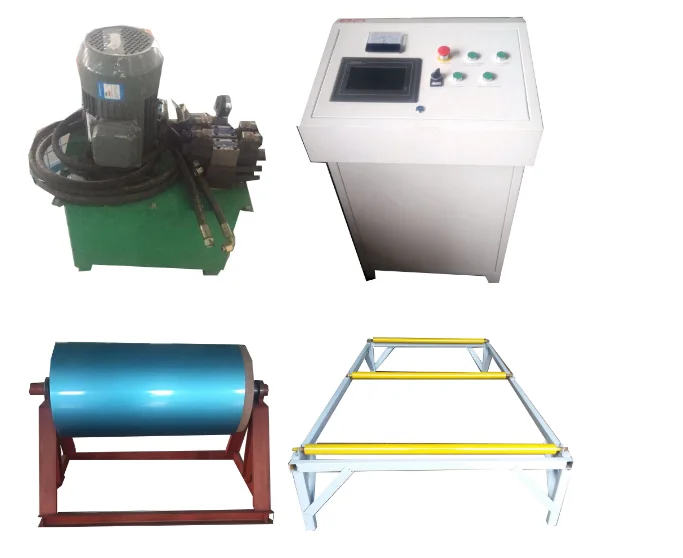

Equipment parts
·Feeding platform
·Automatic shearing system
·Hydraulic system
·Computer control system (imported computer)
·High-precision automatic counter

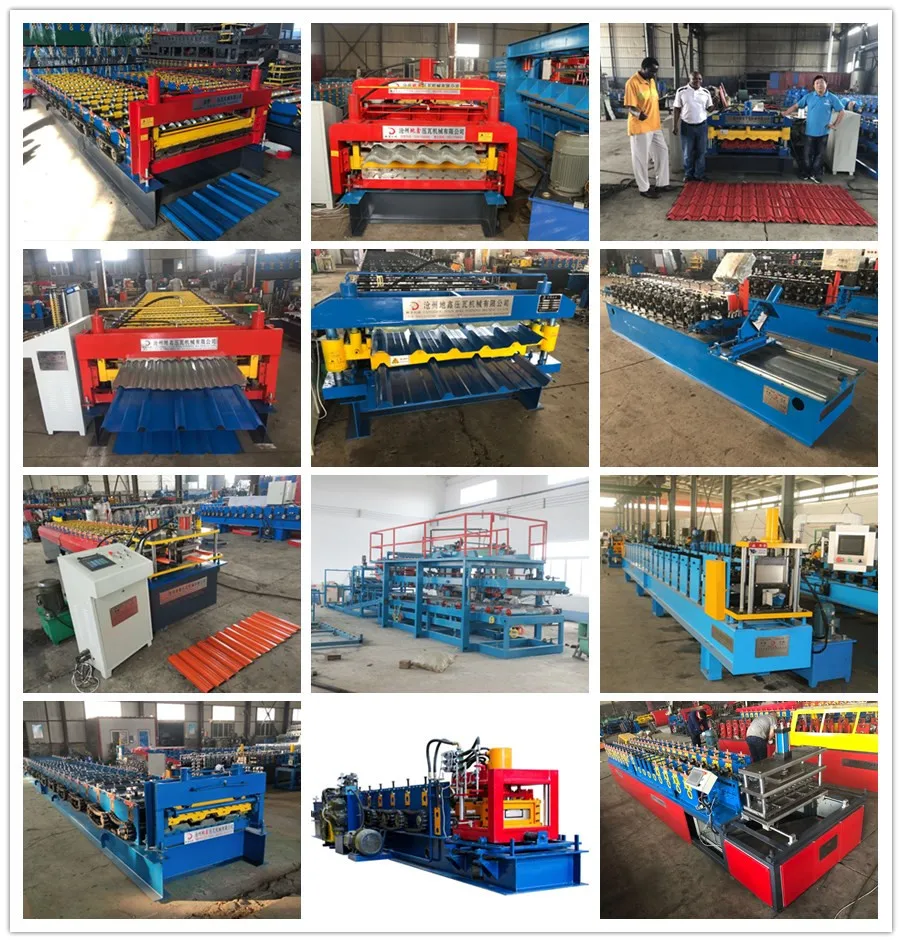

Cangzhou Dixin Roll Forming Machine Co.,Ltd,Our company is the professional and leading manufacture,can manufacture ,design,installation and debug various roll forming machines and metal processing sheet equipments ,which produce metal roof wall panel,glazed roof tile , CZ steel purlin,floor desking,roof ridge cap,sandwich panel ,roof rtruss,shutter panel,shutter slat,door frame, guardrail ,and metal sheet uncoiler ,bending ,slitting,cutting,flattening,punching,crimpingl. especially can design machine according to customer's request.
1.Tighten to container with steel wire rope and welded angel iron.
2.Main forming machine and unciler is naked (if you need we can also packed with water-proof plastic)
3 .Roll forming machine PLC control system and moter pump are packed with water-proof plastic coveragePortTianjinLead Time :30 days after your pre-deposit
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.
Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
