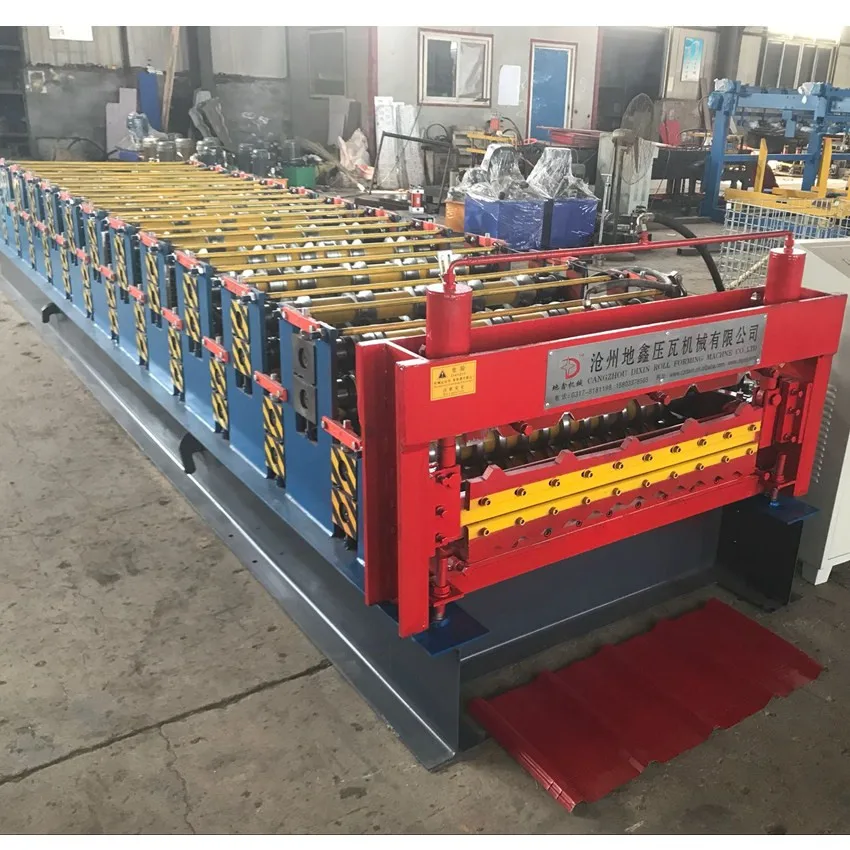

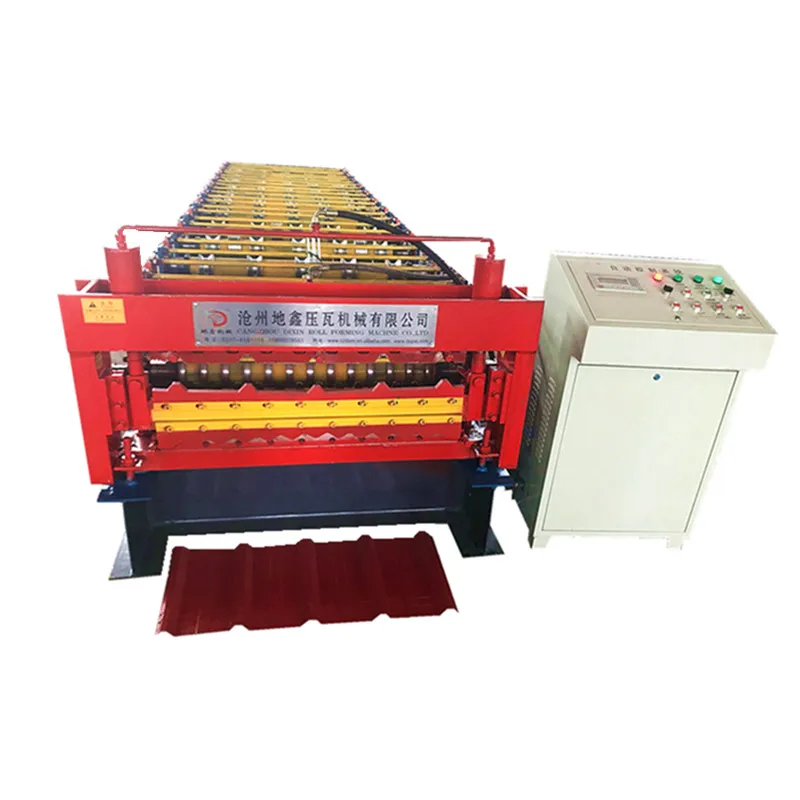

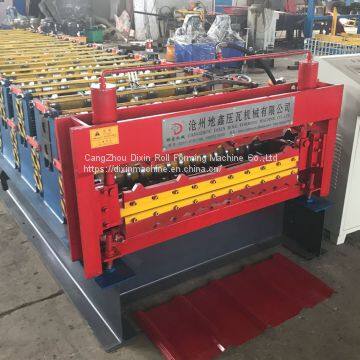

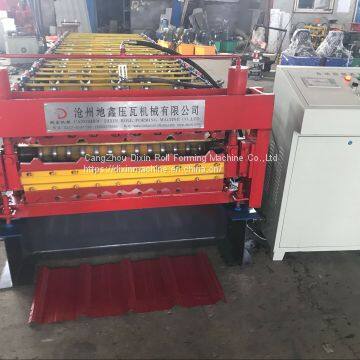

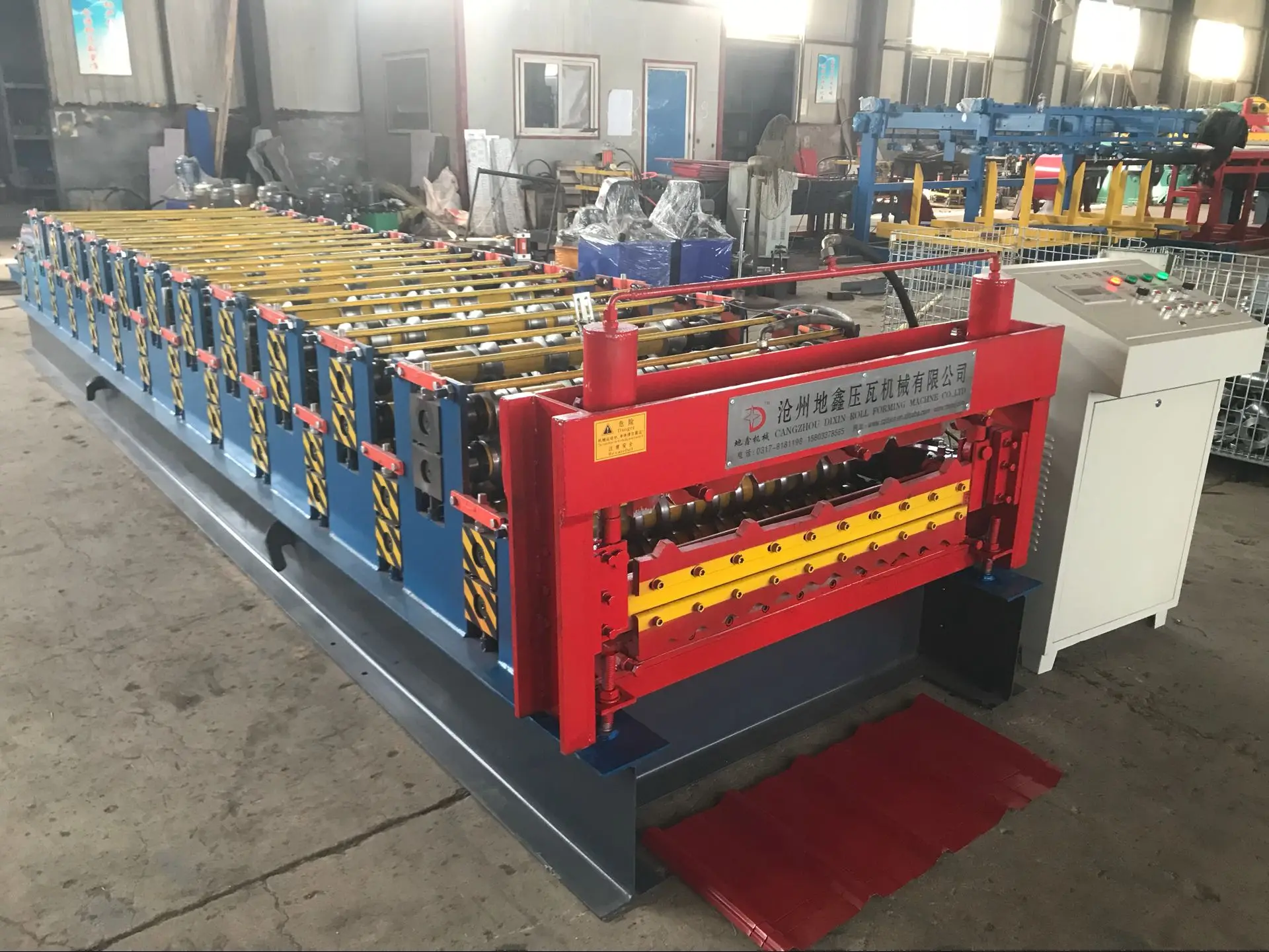

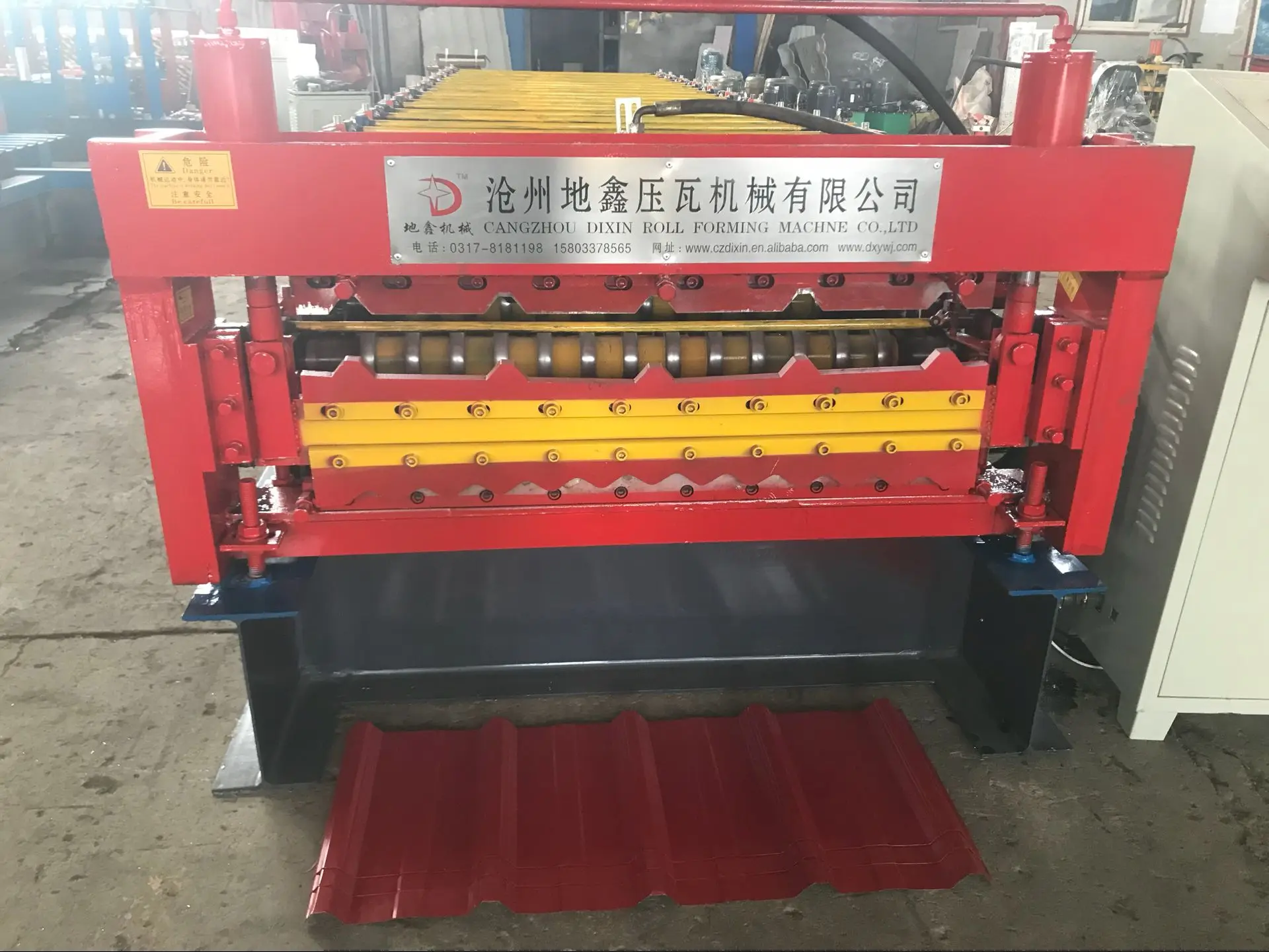

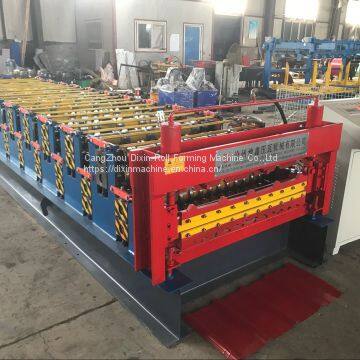

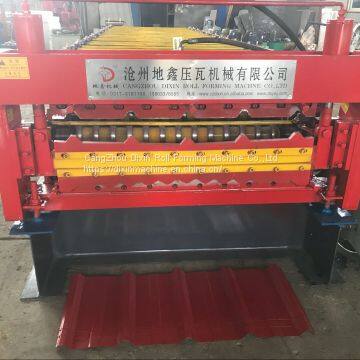

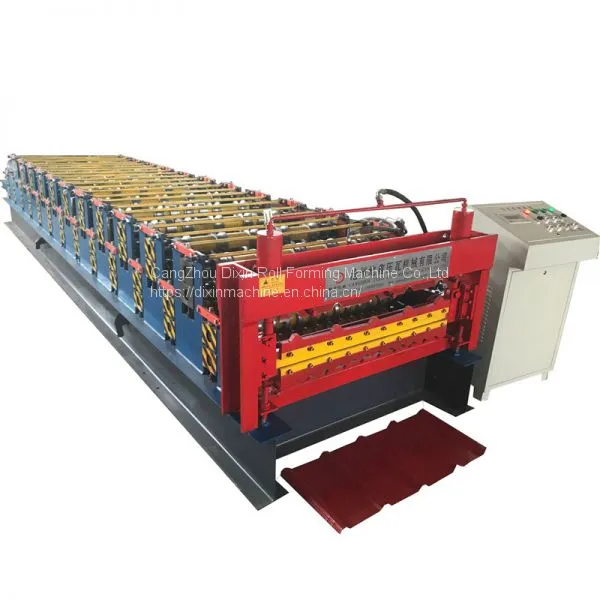

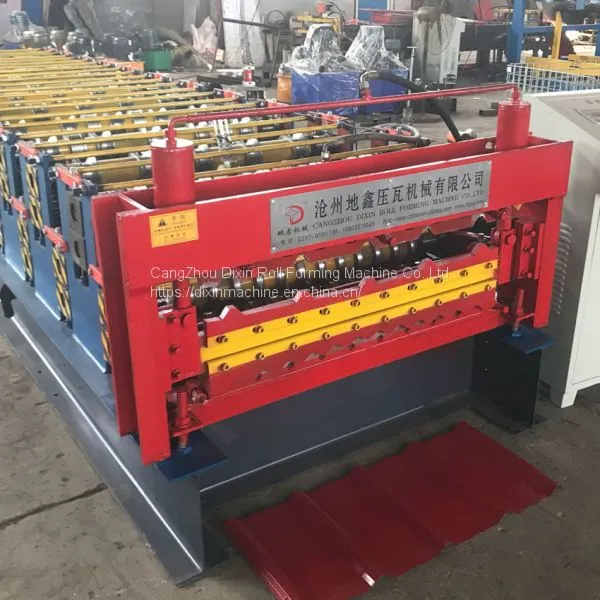

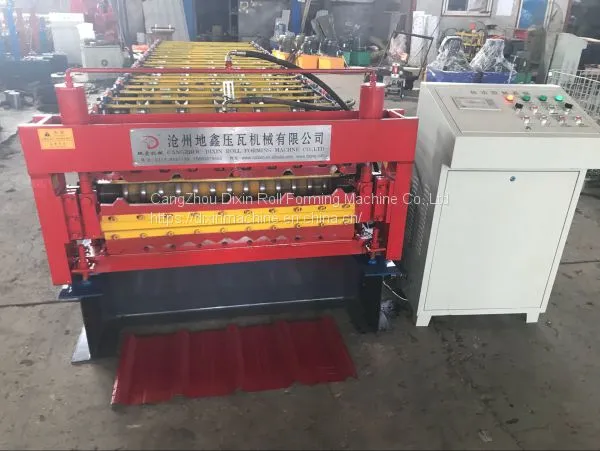

Kenya 836-840 Corrugated Steel Roofing Double Layer Sheet Roll Forming Machine
Kenya 836-840 Corrugated Steel Roofing Double Layer Sheet Roll Forming Machine

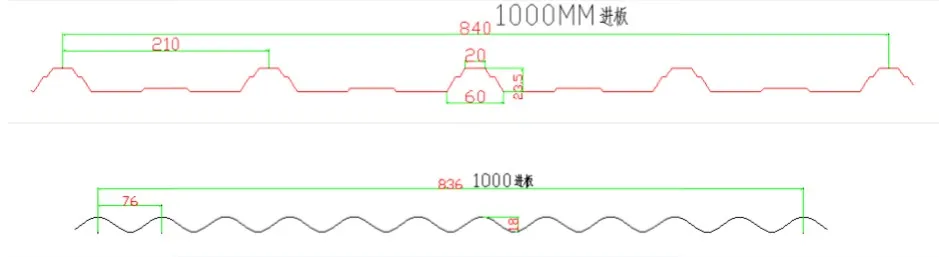

Panel drawing
Usage
Our products are widely used in various fields: industrial factory, civilian building, warehouse, easy steel building, manufacturing, construction and have features such as nice appearance and durable.

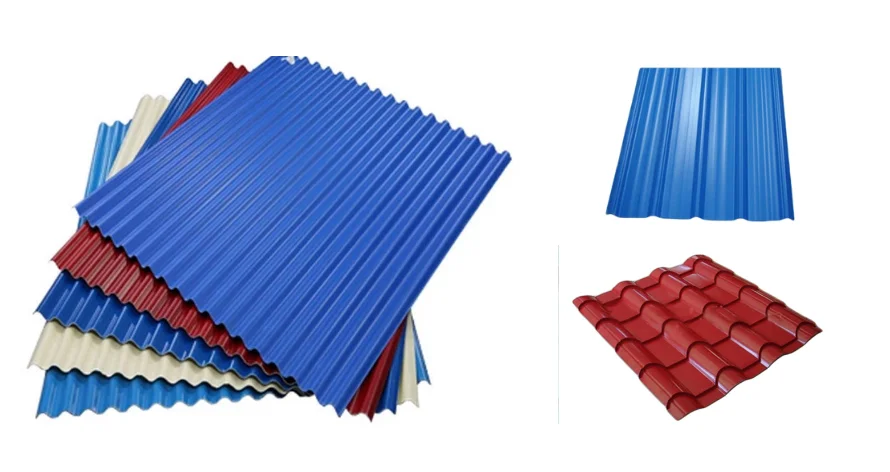

Colored steel tiles produced by this machine look beautiful ,elegant and noble.They are widely used as the roof of garden,factory,hotel,exhibition center and villa,etc.
Technical parameter
| width of material | 1000/914mm |
| thickness of plates | 0.3-0.7mm |
| forming speed | 10-15m/min |
| forming steps for up layer | 9 rows |
| roller material | C45 |
| motor power | 4kw |
| motor brand | Delta |
| hydraulic station power | 4kw |
| voltage | 380V 50HZ 3 Phase |
| length*width *height of the machine | 7*1.6*1.3m |
| roller material | 45# steel |
| diameter of roller | 75mm |
| main frame | 350H steel |
| middle plate | 14mm |
| blade material | Cr12 |
| chain | 1 inch |
Cangzhou Dixin Roll Forming Machine Co.,Ltd,Our company is the professional and leading manufacture,can manufacture ,design,installation and debug various roll forming machines and metal processing sheet equipments ,which produce metal roof wall panel,glazed roof tile , CZ steel purlin,floor desking,roof ridge cap,sandwich panel ,roof rtruss,shutter panel,shutter slat,door frame, guardrail ,and metal sheet uncoiler ,bending ,slitting,cutting,flattening,punching,crimpingl. especially can design machine according to customer's request.


Installation and Training:
1.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.
Our Service:
1.Customer's Design,Size,Color,Logo are accepted.
2.With 20 years professional manufacture experience.
3.Prompt Delivery&Competitive Price.
4.Main Makets: Middle East, Europe, North American, Africa, Southeast Asia.
After-sales Service:
1.We provide the technical support for whole life of our machines.
2.If buyer need the technican to go aboard ,we will arrange the technican.but the buyers should pay for all the cost including Visa,round trip ticket etc.
Warm prompt
We can produce too many types roofing panels roll forming machine ,especially according to your request to produce.
you need provide panel drawing,feeding width,effective width,and materials thickness,
then we can send you more machine details.please feel free contact me.
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.
Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
Q6. If I am in Beijing,or Shanghai ,how to visit your company?
A6: 1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
