Good Price Iron Corrugating Aluminum Trapezoidal Roll Forming Machine

Good Price Iron Corrugating Aluminum Trapezoidal Roll Forming Machine photo-1

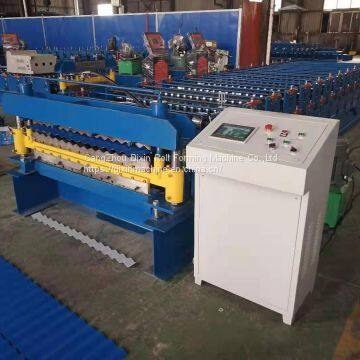

Good Price Iron Corrugating Aluminum Trapezoidal Roll Forming Machine photo-2

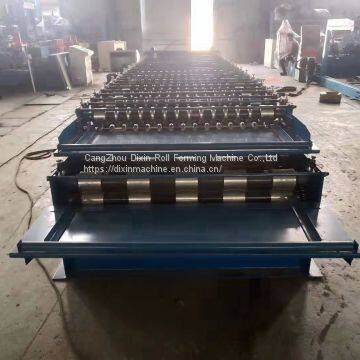

Good Price Iron Corrugating Aluminum Trapezoidal Roll Forming Machine photo-3

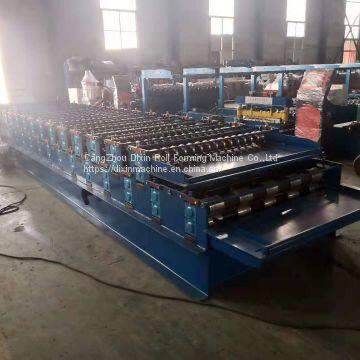

Good Price Iron Corrugating Aluminum Trapezoidal Roll Forming Machine photo-4

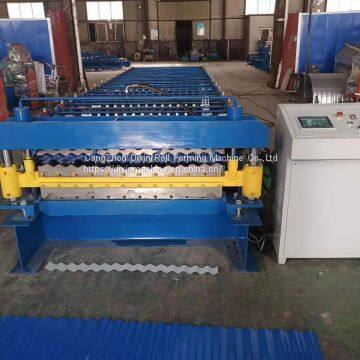

Good Price Iron Corrugating Aluminum Trapezoidal Roll Forming Machine photo-5
US$ 8800 - 11000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Dixin
Place of Origin:
China
Model Number:
Customized
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
30 days
Brand Name Dixin
Place of Origin China
Model Number Customized
Use Roof
Certification CE,ISO
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight 3.8Tons
Dimension(L*W*H) 8000*1500*1500
Production Capacity 8-12m/min
Condition New
Voltage 380v
Power(W) 4+4kw
Type Tile Forming Machine
Tile Type Colored Steel




Technical parameter


Specifications for double deck roll forming machine
1Processing materialaluzinc/galvanized steel/colored steel coil
2Material thickness0.3-0.8mm
3Main motor power4 kw
4Pump power4 kw
5Shaft diameter75mm
6Forming steps13 steps
7Roller material45# forged steel, with hard chrome plating
8Main frame300H steel
9Medium plate thickness16mm
10Control systermPLC computer control with inverter
11Power supply380V, 3 Phase, 60Hz or as your requirement


Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel  purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.

Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.  We can satisfy the different needs of different markets.

other type.JPG



1. Free technical support and free accessories supply.

2. Engineer available to service machinery overseas.

3. One year warranty is provided.

4. Long life technical guidance for free.

5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.



We have the most professional technical team And many years of rich production experience.Start with the selection of raw materials.We produce and process each process carefully.Only hope the customer can use the best machine.

.jpg

Q1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.

Good quality is for long-term business cooperation.



Q2. Can you provide OEM service for roll forming machine?

A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.



Q3. What’s your standard trade terms ?

A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.



Q4. How about the quality control?

A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.



Q5. How about the after-sale service?

A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.



Q6. If I am in Beijing,or Shanghai ,how to visit your company?

A6: 1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.



Product Tags: Argentina Standard roofing corrugated and trapezoidal , corrugated Aluminum Roof Tile Roll Forming Machine , roofing double layers galvanized , color coil raw materials
