Colored Steel Corrugated Roll Forming Machine Trapezoidal Forming Machine

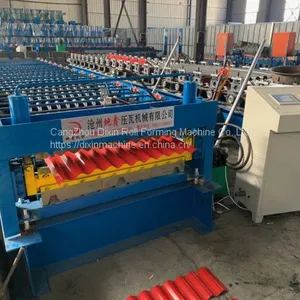

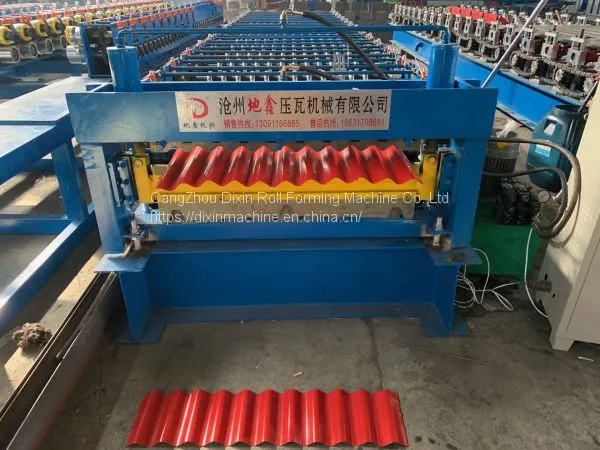

Colored Steel Corrugated Roll Forming Machine Trapezoidal Forming Machine photo-1

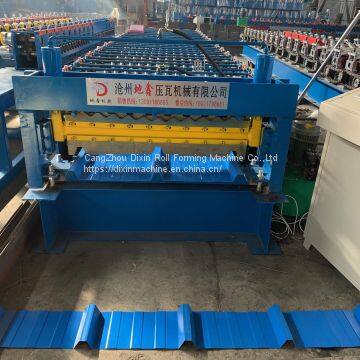

Colored Steel Corrugated Roll Forming Machine Trapezoidal Forming Machine photo-2

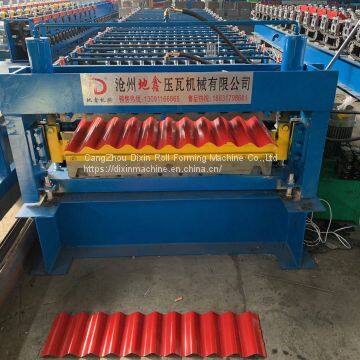

Colored Steel Corrugated Roll Forming Machine Trapezoidal Forming Machine photo-3

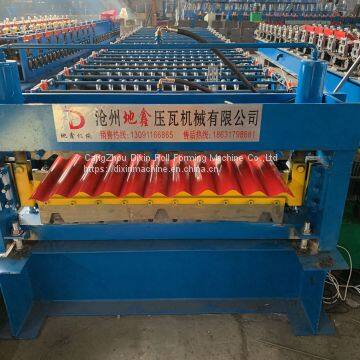

Colored Steel Corrugated Roll Forming Machine Trapezoidal Forming Machine photo-4

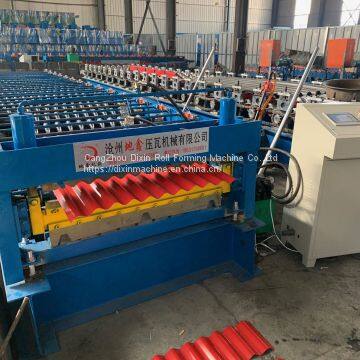

Colored Steel Corrugated Roll Forming Machine Trapezoidal Forming Machine photo-5
US$ 10000 - 14500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DIXIN
Place of Origin:
China
Model Number:
1000
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
25 days
Brand Name DIXIN
Place of Origin China
Model Number 1000
Use Roof
Certification CE,ISO
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight 4.5T
Production Capacity 8-12m/min
Condition New
Voltage 380v
Power(W) 5.5kw
Type Tile Forming Machine
Tile Type Colored Steel

Colored steel Corrugated Roll Forming Machine Trapezoidal forming machine

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site.

Technical parameter

Suitable Material

Material

GI, PPGI, PPGL

Width

1200 mm

Thickness

0.3-0.8mm

Material of rollers

High grade 45# forged steel, surface hard chromium plating

Rows of rollers

Up layer : 13 stations

Middle layer : 12 stations

Down layer : 12 stations

Material of shafts

High grade 45# forged steel

Diameter of shafts

70mm

Material of blade

Cr12 Heat Treatment

Cutting Mode

Hydraulic Guide Column

Speed

20-25m/min

Side plate thickness

16 mm

Chain size

1 inch

Total power

7.5 kw

Voltage

380V 50HZ 3Phase

Appearance size (About)

7000mm*1500mm*1600mm

Weight(About)

8 tons

Electronic control system

PLC (Delta) Touch Screen


Working flow




2019 Automatic colored steel roof flat metal sheet corrugated roll forming tile making machine made in Botou city for sale

sales terms
  • Payment Method

30% as deposit ,balance payment after inspection while before delivery.

  • Production Period

30 days after the 30% deposit.

  • Packing Method

Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.

  • After-sell Service

In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.

  • Installation

 If installation is needed, the seller will dispatch a technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist the seller to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians.

 Position the machine in the buyer’s factory.

 Prepare necessary electric wiring.

 Prepare material of trial running.

 Provide labors for assistance and installation during installation.

Our Services

12 Months guarantee. if some part of the machine is broken. we will supply the best part,but if the damaged parts due to operate error,buyer will pay for the shipping fee.

After-sale service:

We sent technician to your country to fix the machine.the buyer shoule bear all the cost includng:visa,roundtrip ticket and suitable accommodation,also buyer should pay the salary 100USD/DAY.

2019 Automatic colored steel roof flat metal sheet corrugated roll forming tile making machine made in Botou city for sale

FAQ

1. You are the manuafacturer or trading company ?

     A: We are the professional manufacturer , and we have more than 20 years professional experiece in the          field of roll forming machine.

2. Can you make the machine according to my design or photo type?

      A: Yes. We have an experienced team to work out the most suitable design and production plan

     for the machine.
3. How can we be assured that you will deliver us quality machine with spare parts?

    A:1. Customers to send the technical people to our factory for checking the quality.

        2.We can send the technicians to the buyer`s factory for the installation of the machine.
4.What policy of your garentee?

    A: Within the One-YEARS period, we could supply you the replacement parts free of charge

    for any damaged parts caused by quality problems after two years,you need to buy by factory cost.


Product Tags: Steel Profile Glazed Tile IBR Corrugated Double , High performance single and glazed roof panel , 0.3-0.8mm IBR Corrugated Roofing Sheet
