Competitive Price Roofing Tile Double Layer Roof Roll Forming Machine

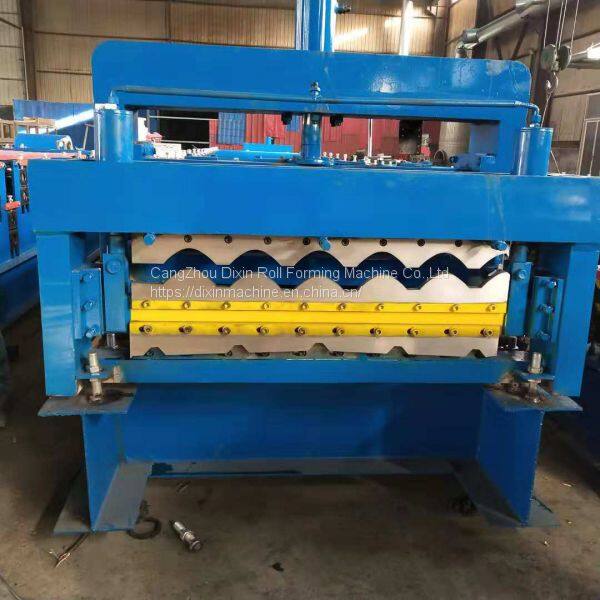

Competitive Price Roofing Tile Double Layer Roof Roll Forming Machine photo-1

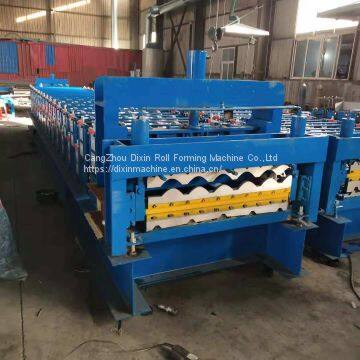

Competitive Price Roofing Tile Double Layer Roof Roll Forming Machine photo-2
Competitive Price Roofing Tile Double Layer Roof Roll Forming Machine photo-3

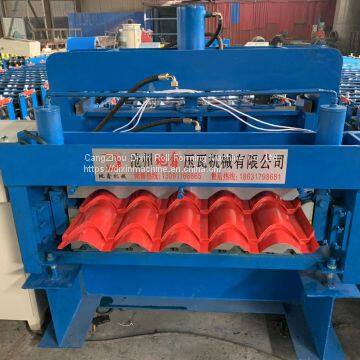

Competitive Price Roofing Tile Double Layer Roof Roll Forming Machine photo-4

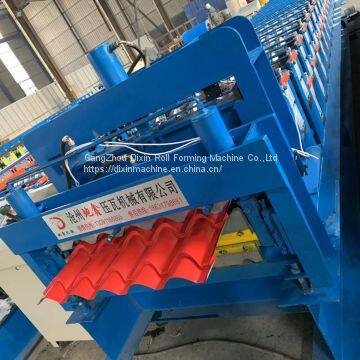

Competitive Price Roofing Tile Double Layer Roof Roll Forming Machine photo-5
US$ 9800 - 13200 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Dixin
Place of Origin:
China
Model Number:
Customized
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
30 days
Brand Name Dixin
Place of Origin China
Model Number Customized
Use Roof
Certification CE,ISO
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight 4T
Dimension(L*W*H) 6000*1500*1300
Production Capacity 8-12m/min
Condition New
Voltage 380v
Power(W) Customized
Type Tile Forming Machine
Tile Type Colored Steel

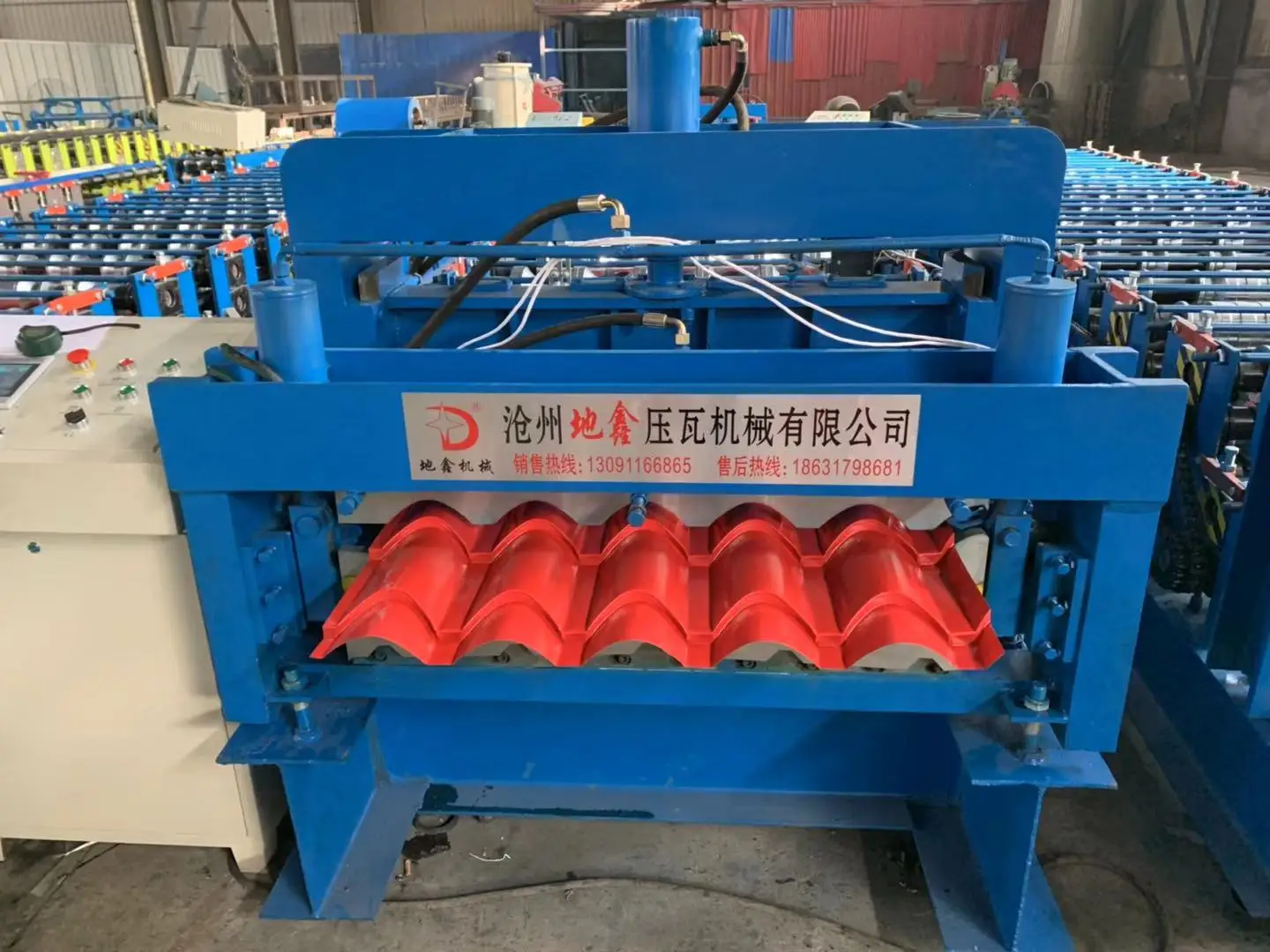

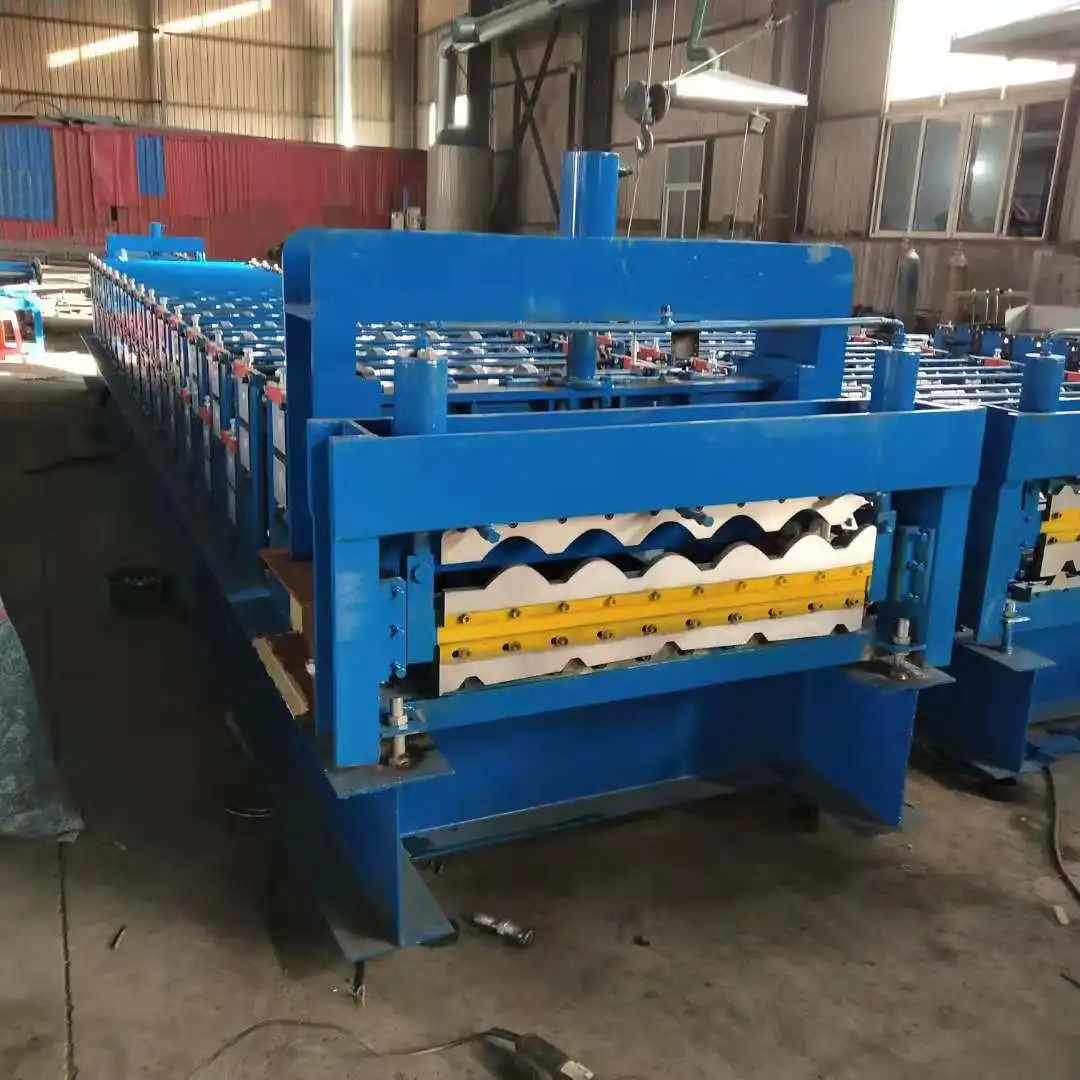

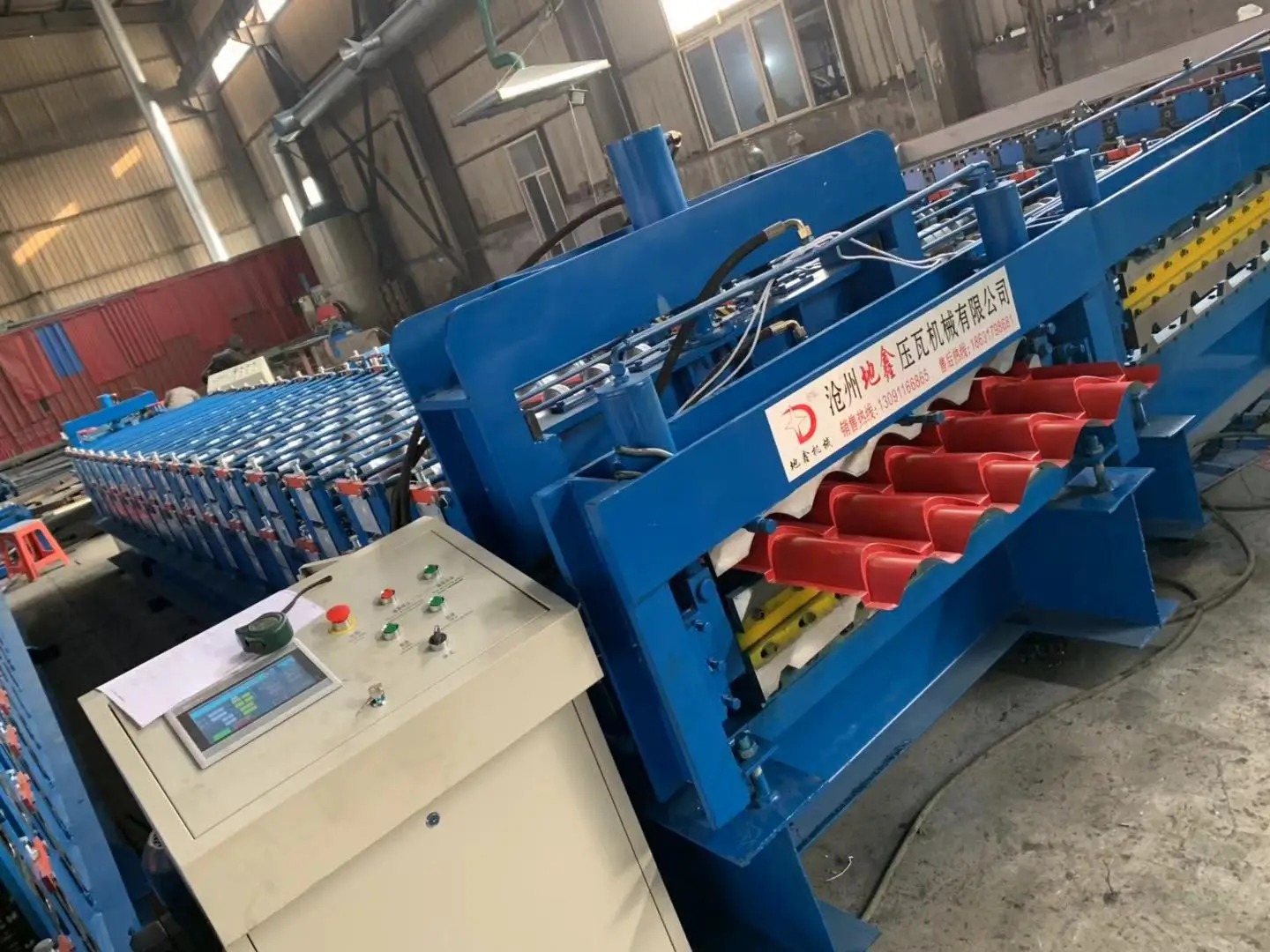

 Competitive price roofing tile double layer roof roll forming machine

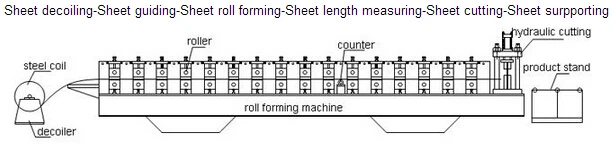

Working flow

New glazed roof tile Roll Forming Making Machine With Good quality



New glazed roof tile Roll Forming Making Machine With Good qualityNew glazed roof tile Roll Forming Making Machine With Good qualityNew glazed roof tile Roll Forming Making Machine With Good qualityNew glazed roof tile Roll Forming Making Machine With Good quality


Technical parameter


No

Item

    Parameter

01

   Material feeding width

1000mm

02

Material thickness

0.3~1.0mm

03

Uncoiler

Manual Uncoiler

04

Loading weight

 5ton

05

Forming speed

8-15m/min

06

Forming Steps

16 stations

07

Shafts materials

45# high quality steel

08

Shafts diameter

70mm

09

Roller materials

45# high quality steel,   hard chrome coated 0.05mm

10

Transmission

Chains-sprockets

11

Main motor power

11kw

12

Cutting blade

Cr12 with quenched   treatment 60-62

13

Hydraulic power

5.5kw

14

Weight

Approx 6.2t

15

Overall dimensions

8600x1500x1300mm


 Working flow


1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.

2.Port:TIANJIN XINGANG PortLead .

3.Time: Shipped in 35 days after payment.

Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.

New glazed roof tile Roll Forming Making Machine With Good quality

Our Services

1. Free technical support and free accessories supply.

2. Engineer available to service machinery overseas.

3. One year warranty is provided.

4. Long life technical guidance for free.

5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.

New glazed roof tile Roll Forming Making Machine With Good quality

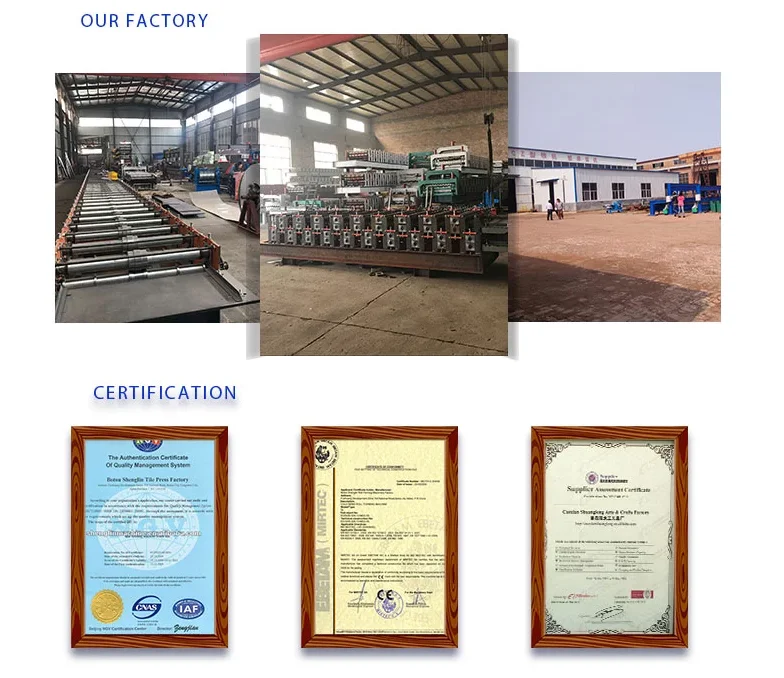

Cangzhou Dixin Roll Forming Machine Co.,Ltd,Our company is the professional and leading manufacture,can manufacture ,design,installation and debug various roll forming machines and metal processing sheet equipments ,which produce metal roof wall panel,glazed roof tile , CZ steel purlin,floor desking,roof ridge cap,sandwich panel ,roof rtruss,shutter panel,shutter slat,door frame, guardrail ,and metal sheet uncoiler ,bending ,slitting,cutting,flattening,punching,crimpingl. especially can design machine according to customer's request.

New glazed roof tile Roll Forming Making Machine With Good quality


Q1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.

Good quality is for long-term business cooperation.



Q2. Can you provide OEM service for roll forming machine?

A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.



Q3. What’s your standard trade terms ?

A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.



Q4. How about the quality control?

A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.



Q5. How about the after-sale service?

A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.



Q6. If I am in Beijing,or Shanghai ,how to visit your company?

A6: 1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.


Product Tags: Glazed Tile Hydraulic trapezoidal Roof Sheet , Color Steel Roof Roll Forming glazed tile machine , long-life Double Layer glazed tile
