Home > Products > self priming pump > ZW Self priming sewage drainage pump for wastewater

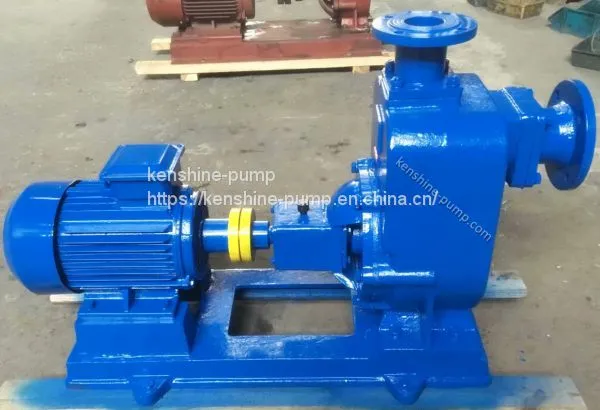

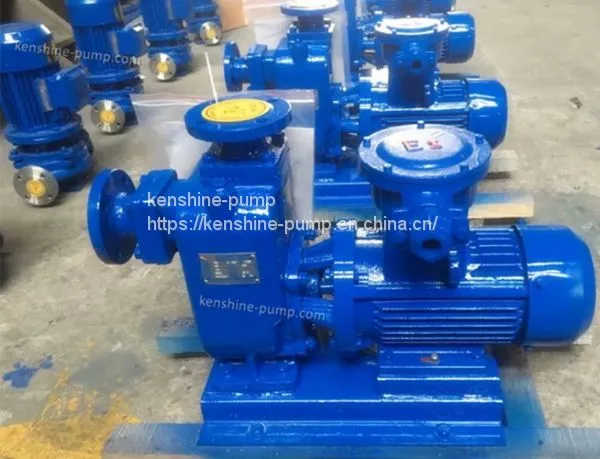

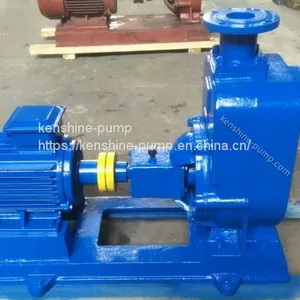

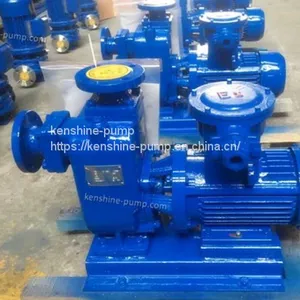

ZW Self priming sewage drainage pump for wastewater
- 1000 Set / Sets per Month
- Shanghai
- T/T
- 7 days
Product Details
Brand Name: | kenshine-pump | Place of Origin: | China | Model Number: | 50ZW15-30 |
Application: | Sewage | Fuel: | Other, electric motor | Power: | Electric |
Usage: | Other, sewage drainage | Theory: | Centrifugal Pump | Standard or Nonstandard: | Standard |
Structure: | Single-stage Pump | Pressure: | Low Pressure |
Product Description
ZW Self priming sewage pump can be made of cast iron or stainless steel and driven by standard motor or explosion proof motor. The pump can directly be connected with motor or by shaft coupling.
ZW Self priming sewage pump is used to transfer the wastewater or waste liquids with solid grain or fiber etc impurities. Suction height is up 5meters.
ZW series self-priming sewage pumps are with self priming and sewage discharge. It means the pumps can not only be self priming as the same as ZX series self priming pump for clean water without foot valve and pouring water but also suck and discharge the large grain and long fiber and sediment and impurity in the waste water. And the performance is very steady. It is very convenient to operate and move and install and maintain.
①Environment temperature≤45℃,Liquids temperature≤120℃。
②Liquid PH: Cast iron pump :6~9,Stainless steel :1~14。
③Max grain diameter can be 60% of caliber for pump. Length of fiber can be 5 times as caliber for pump.
④Impurity weight into liquid can not more than 15% of liquid weight. Liquid density≤1240kg/cm3
Parameter:
Model | Flow (m3/h) | Head (m) | Power (KW) | Rotary speed (r/min) | Efficiency (%) | suction height (m) |
ZW25-8-15 | 8 | 15 | 2.2 | 2900 | 45 | 5.5 |
ZW32-5-20 | 5 | 20 | 2.2 | 2900 | 45 | 5.5 |
ZW32-10-20 | 10 | 20 | 2.2 | 2900 | 45 | 5.5 |
ZW32-9-30 | 9 | 30 | 3 | 2900 | 48 | 5.5 |
ZW40-10-20 | 10 | 20 | 2.2 | 2900 | 45 | 5.5 |
ZW40-20-15 | 20 | 15 | 2.2 | 2900 | 45 | 5.5 |
ZW40-15-30 | 15 | 30 | 3 | 2900 | 48 | 5.5 |
ZW50-10-20 | 10 | 20 | 2.2 | 2900 | 45 | 5.5 |
ZW50-20-12 | 20 | 12 | 2.2 | 2900 | 45 | 5.5 |
ZW50-15-30 | 15 | 30 | 3 | 2900 | 48 | 5.5 |
ZW50-20-35 | 20 | 35 | 5.5 | 2900 | 48 | 5.5 |
ZW65-30-18 | 30 | 18 | 4 | 1450 | 45 | 5.5 |
ZW65-25-30 | 25 | 30 | 5.5 | 2900 | 50 | 5.5 |
ZW65-25-40 | 25 | 40 | 7.5 | 2900 | 50 | 5.5 |
ZW65-40-25 | 40 | 25 | 7.5 | 2900 | 50 | 5.5 |
ZW65-65-25 | 65 | 25 | 7.5 | 2900 | 52 | 5.5 |
ZW80-40-16 | 40 | 16 | 4 | 1450 | 50 | 5.0 |
ZW80-40-25 | 40 | 25 | 7.5 | 2900 | 50 | 5.5 |
ZW80-25-40 | 25 | 40 | 7.5 | 2900 | 50 | 5.5 |
ZW80-65-25 | 65 | 25 | 7.5 | 2900 | 52 | 5.5 |
ZW80-80-35 | 80 | 35 | 15 | 2900 | 45 | 5.5 |
ZW80-40-50 | 40 | 50 | 18.5 | 2900 | 50 | 5.5 |
ZW80-50-60 | 50 | 60 | 22 | 2900 | 55 | 5.0 |
ZW100-100-15 | 100 | 15 | 7.5 | 1450 | 50 | 5.5 |
ZW100-80-20 | 80 | 20 | 7.5 | 1450 | 53 | 5.5 |
ZW100-100-20 | 100 | 20 | 11 | 1450 | 53 | 5.5 |
ZW100-100-30 | 100 | 30 | 22 | 2900 | 53 | 5.5 |
ZW100-80-45 | 80 | 45 | 30 | 2900 | 55 | 5.5 |
ZW100-80-60 | 80 | 60 | 37 | 2900 | 53 | 5.5 |
ZW100-80-50 | 80 | 80 | 45 | 2900 | 50 | 5.5 |
ZW125-120-20 | 120 | 20 | 15 | 1450 | 55 | 5.5 |
ZW150-180-14 | 180 | 14 | 15 | 1450 | 60 | 5.5 |
ZW150-180-20 | 180 | 20 | 22 | 1450 | 60 | 5.0 |
ZW150-180-30 | 180 | 30 | 37 | 1450 | 65 | 5.0 |
ZW150-180-38 | 180 | 38 | 55 | 1450 | 45 | 6.0 |
ZW200-280-14 | 280 | 14 | 22 | 1450 | 65 | 5.0 |
ZW200-280-20 | 280 | 20 | 37 | 1450 | 62 | 5.0 |
ZW200-300-25 | 300 | 25 | 45 | 1450 | 59 | 5.0 |
ZW200-280-28 | 280 | 28 | 55 | 1450 | 55 | 5.2 |
ZW250-420-20 | 420 | 20 | 55 | 1450 | 61 | 4.5 |
ZW300-800-14 | 800 | 14 | 55 | 1450 | 65 | 4.5 |
