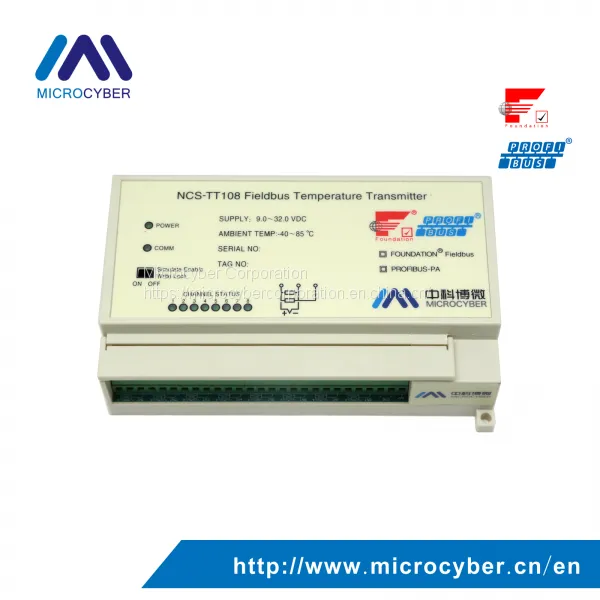

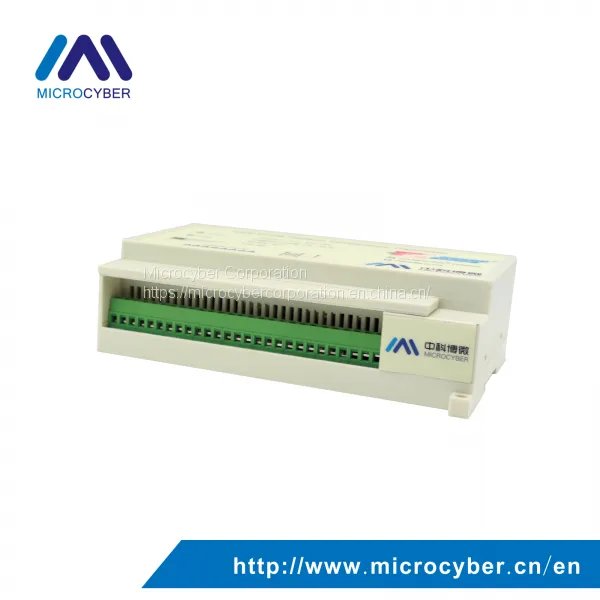

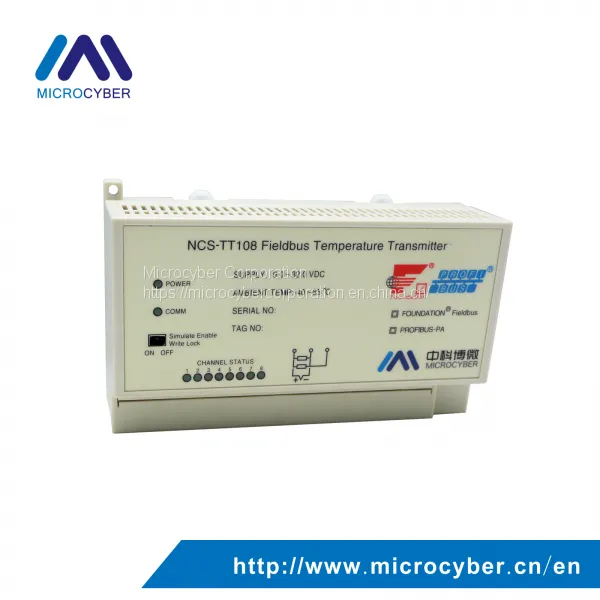

Help CenterHot Intelligent Isolated Temperature Measurement Multi Channel Transmitter
Related Products
-
Hot Sale Head Mounted Temperature Measurement 4-20mA Temperature TransmitterUS$ 60 - 78MOQ: 1 Piece -
Digital Temperature Transmitter/Controller NCS-TT105 With FF ProtocolUS$ 390 - 430MOQ: 1 Piece
-
Industrial DIN Rail Temperature Transmitter NCS-TT106H-R With HART ProtocolUS$ 62 - 80MOQ: 1 Piece
-
G0310 MODBUS to HART Gateway Modbus-RTU Protocol to HART ProtocolUS$ 160 - 190MOQ: 1 Piece
-
HART 4-20mA Protocol to Modbus RTU RS485 External Smart GatewayUS$ 189 - 199MOQ: 1 Piece
Parameter |
Value |
Input Signal |
Resistance: PT100, CU50, CU100, 0~500Ω, 0~4000Ω Thermocouple: B, E, J, N, K, R, S, T Voltage signal: -100mV～100mV |
Channel |

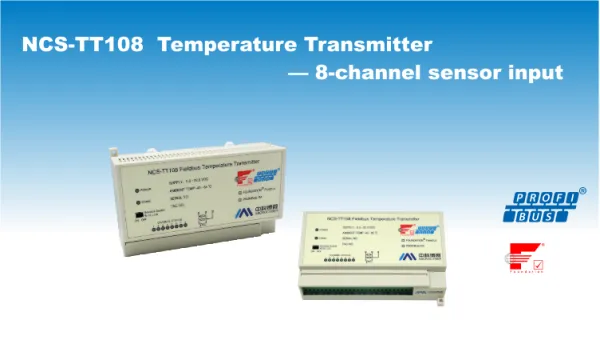

8-channel |

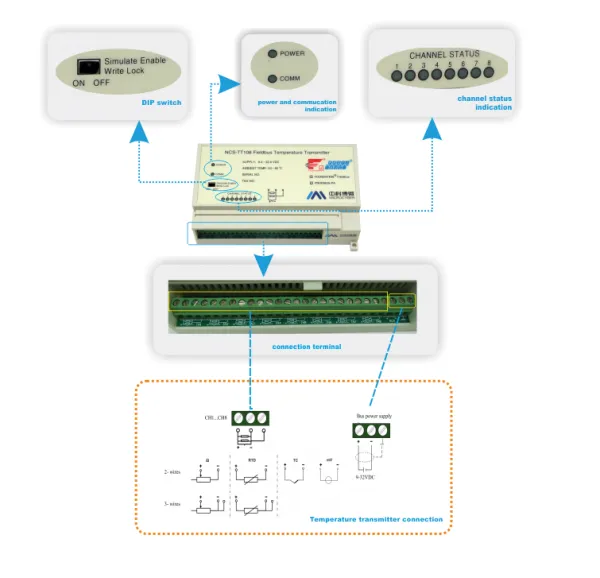

RTD Wiring |
2-wire, 3-wire, |
Bus Power |
9~32 VDC Current consumption (static): ≤20mA |
Bus Signal |
Communication ratio 31.25Kbit/s, current mode |
Isolation |
Between input channel and bus: 500Vrms (707 VDC) Between temperature converter module: 500Vrms (707 VDC) The two temperature input channels in the module are not isolated. |
Working Temperature |
-40℃~85℃ |
Humidity Range |
0%~100%RH |
Start Time |
≤5s |
Refresh Time |
0.2s |
Protection |
IP20; Outside box IP67 |
Vibration |
Arbitrary axial 0~200Hz, error is±0.05%/g of largest range |
EMC |
Bus terminal: GB/T 18268-2000 Table A1 Sensor terminal: GB/T 18268-2000 Table 1 |
Signal Type |
Suggested Range (℃) |
Accuracy |
Resistance |
0~500Ω,0~4000Ω |
±0.05% |
PT100 |
-200~850℃ |
±0.2℃ |
PT1000 |
-200~850℃ |
±0.1℃ |
CU50 |
-50~150℃ |
±0.3℃ |
CU100 |
-50~150℃ |
±0.2℃ |
mV |
-100Mv~100mV |
0.05% |
B |
500℃~1810℃ |
±1.0℃ |
E |
-200℃~1000℃ |
±0.4℃ |
J |
-190℃~1200℃ |
±0.4℃ |
K |
-200℃~1372℃ |
±0.4℃ |
N |
-190℃~1300℃ |
±0.8℃ |
R |
0℃~1768℃ |
±1.0℃ |
S |
0℃~1768℃ |
±1.0℃ |
T |
-200℃~400℃ |
±0.4℃ |
mV |
-100Mv~100mV |
0.05% |
B |
500℃~1810℃ |
±1.0℃ |
E |
-200℃~1000℃ |
±0.4℃ |
J |
-190℃~1200℃ |
±0.4℃ |
K |
-200℃~1372℃ |
±0.4℃ |
N |
-190℃~1300℃ |
±0.8℃ |
R |
0°C ~ 1768°C |
±1.0°C |
S |
0 °C~ 1768°C |
±1.0°C |
T |
-200°C ~ 400°C |
±0.4°C |
