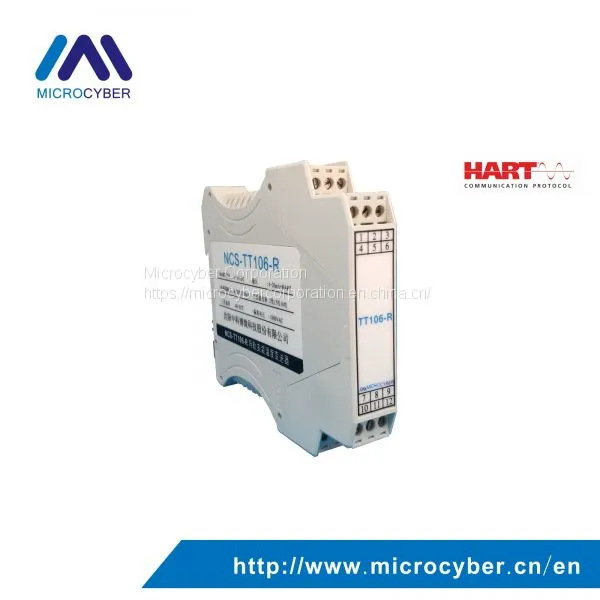

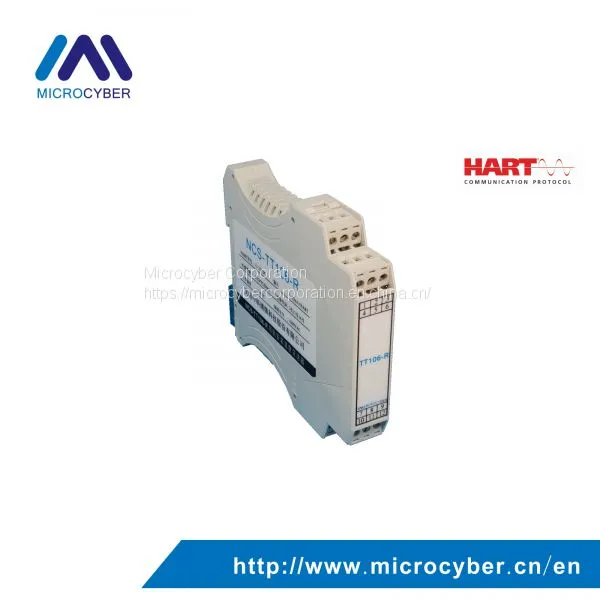

Industrial DIN Rail Temperature Transmitter NCS-TT106H-R with HART protocol
- 1000 Piece / Pieces per Month
- Shenyang
- T/T
Product Details
Brand Name: | Microcyber | Place of Origin: | China | Model Number: | NCS-TT106H-R |
Temperature Range: | -40℃~85℃ | Usage: | Industrial | Theory: | Temperature Transmitter |
Product Description
Parameter | Value |
Input Signal | Resistance: PT100, CU50, CU100, 0~500Ω, 0~4000Ω Thermocouple: B, E, J, N, K, R, S, T Voltage signal: -100mV~100mV |
Channel | Double |
RTD Wiring | 2-wire, 3-wire, 4-wire |
Bus Power | 11~35 VDC Current consumption (static): ≤14mA |
Isolation | 1000VAC |
Working Temperature | -40℃~85℃ |
Humidity Range | 0%~95%RH |
Start Time | ≤5s |
Refresh Time | 0.8s-1.3s |
EMC | GB/T 18268.1-2010 |
Protection | IP20(terminal IP00) |
Signal Type | Suggested Range (℃) | Accuracy(25℃) |
Resistance | 0~500Ω, 0~4000Ω | ±0.04Ω ±0.35Ω |
PT100 | -200~850℃ | ±0.15℃ |
PT1000 | -200~850℃ | ±0.15℃ |
CU50 | -50~150℃ | ±0.15℃ |
CU100 | -50~150℃ | ±0.1℃ |
mV | -100mV~100mV | 0.025mV |
B | 500℃~1810℃ | ±0.77℃ |
E | -200℃~1000℃ | ±0.2℃ |
J | -190℃~1200℃ | ±0.35℃ |
K | -200℃~1372℃ | ±0.4℃ |
N | -190℃~1300℃ | ±0.5℃ |
R | 0℃~1768℃ | ±0.75℃ |
S | 0℃~1768℃ | ±0.7℃ |
T | -200℃~400℃ | ±0.35℃ |
