Product Overview

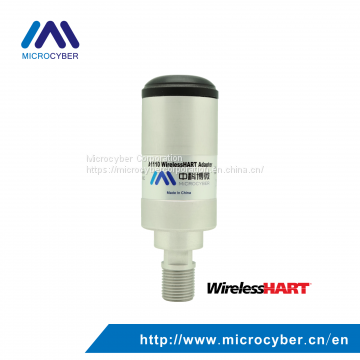

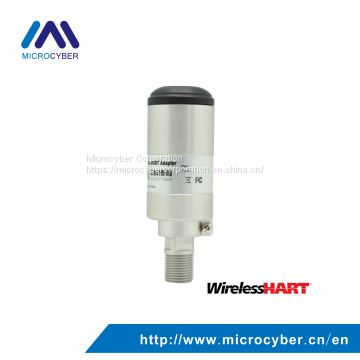

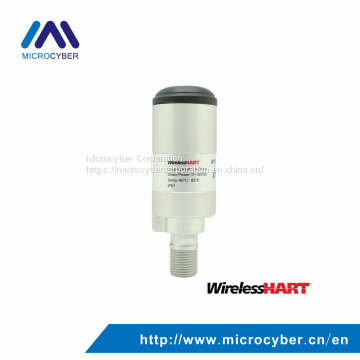

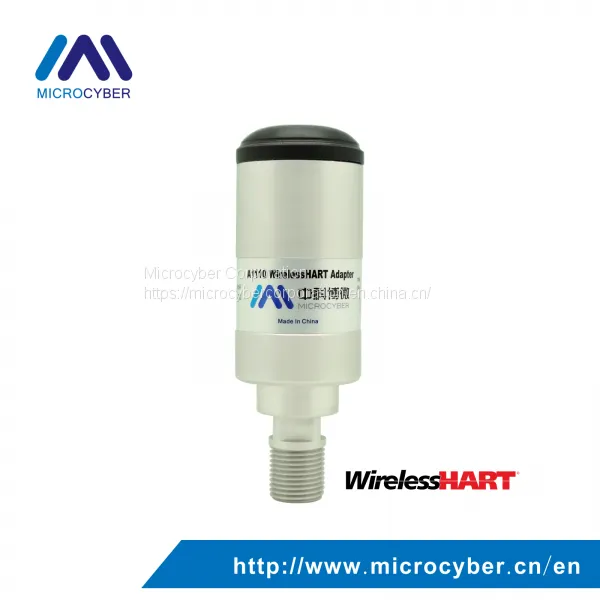

A1110 WirelessHART adapter is in line with the latest version of HART7.6 specification. It can seamlessly integrate the original HART equipment into WirelessHART network and protect the original assets. A1110 provides a variety of power supply modes, such as 4-20mA, external power supply, battery power supply and so on. A1110 makes all HART device data read access at any location possible, meanwhile it supports remote configuration and maintenance.
Features

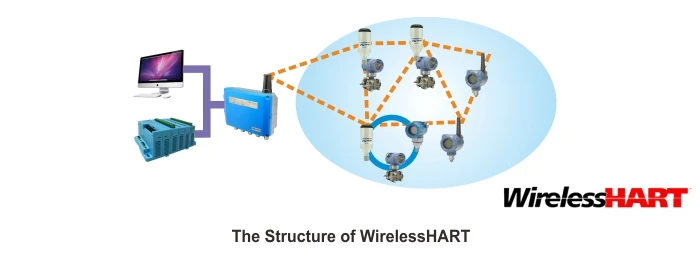

Provide WirelessHART network seamless integration solutions
Support HART5, 6, 7 device
Support 2 wire, 3 wire or 4 wire HART device
Support 4-20mA loop taking power and external power supply mode
Reliability of wireless data higher than 99.9%
Conform to HART7.6 specification standard
Details

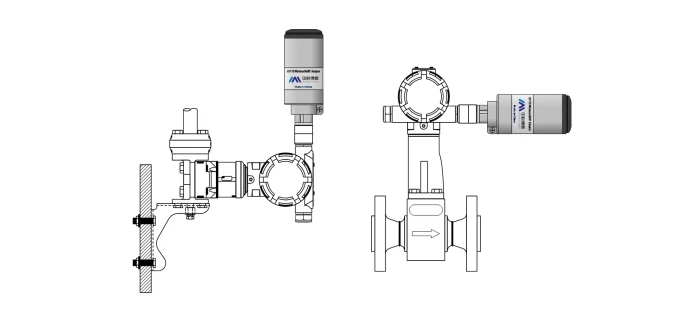

Install
Parameters
Technical Specifications
System | |
Platform | WirelessHART network |
Support the number of sub-devices | 4 |
Support sub-device type | 2,3 or 4-wire HART device |
Conforms to HART protocol version | HART7.6 |
Support sub device HART protocol version | HART5,6,7 |
Install the interface | 1/2 NPT |
RF | |
Fequency band | 2.4GHz...2.48GHz |
Number of channels | 15 |
Raw data rate | 250kbps |
Output Power | 10dBm |
Receiver sensitivity | -90 dBm |
Transmission distance | Outdoor 200 meters, indoor 50 meters |
Antenna | Integrated Omni-directional antenna |
Upload data cycle | 1 s- 60 min |
Working conditions | |
Power supply | 4-20mA loop power, external DC power |
External power supply voltage | 24VDC (11-30), overload protection (55VDC) |
Circuit voltage drop | 2.5V |
Operating temperature | -40°C - 85°C |
Operating humidity | 0-100% |
Storage temperature | -40°C - 85°C |
Standards compliant | |
International protection | IP67 |
Receiver Sensitivity
Technical Specifications
Model | Product description | |
A1110 | Wireless adapter | |
Output | ||
W | Wireless | |
Power input | ||
Standard | Standard | |
A | Loop power, external power supply | Yes |
Install the connector | ||
Standard | Standard | |
1 | 1/2- 14 NPT | Yes |
Wireless update rate, operating frequency and protocol | ||
Standard | Standard | |
A3 | The update rate can be configured by the user,2.4GHz DSSS,WirelessHART | Yes |
Antenna | ||
Standard | Standard | |
A9 | Omni-directional antenna | Yes |
Typical model:A1110 W A 1 A3 A9 | ||
Size
Size of A1110 WirelessHART Adapter (Unit:mm)
