Product Overview

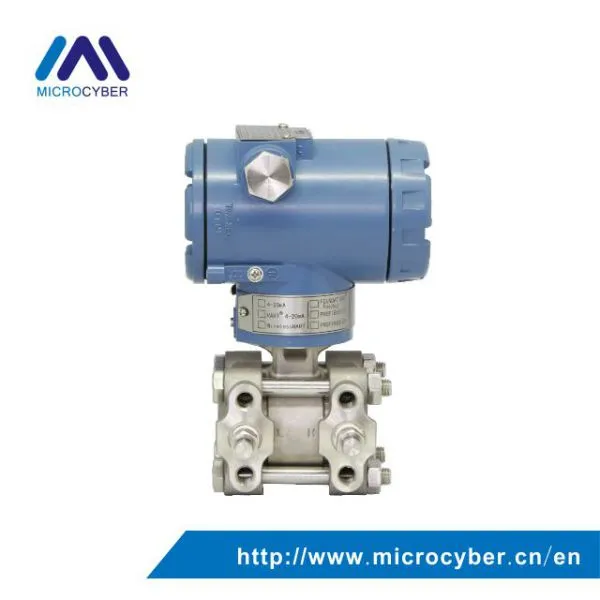

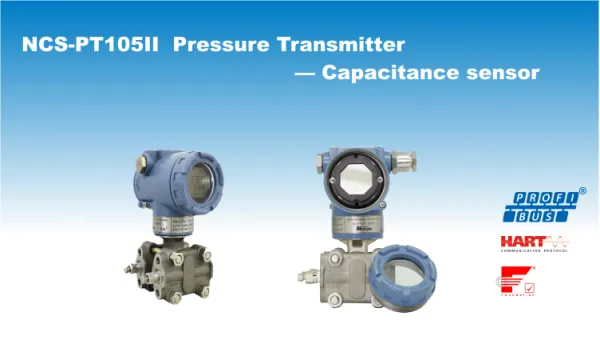

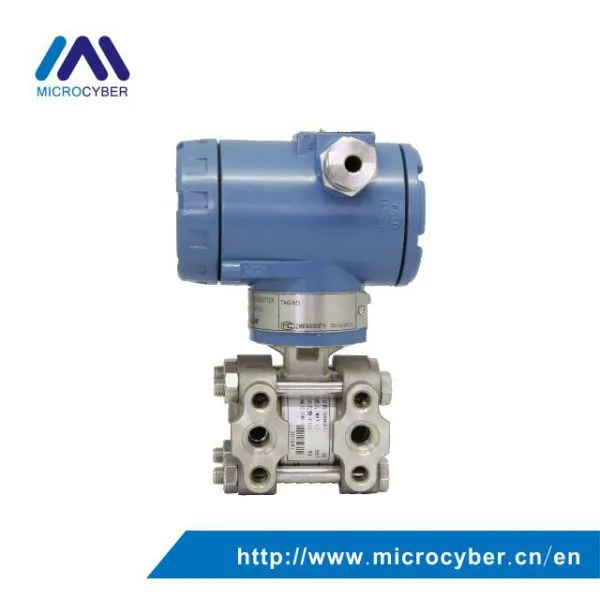

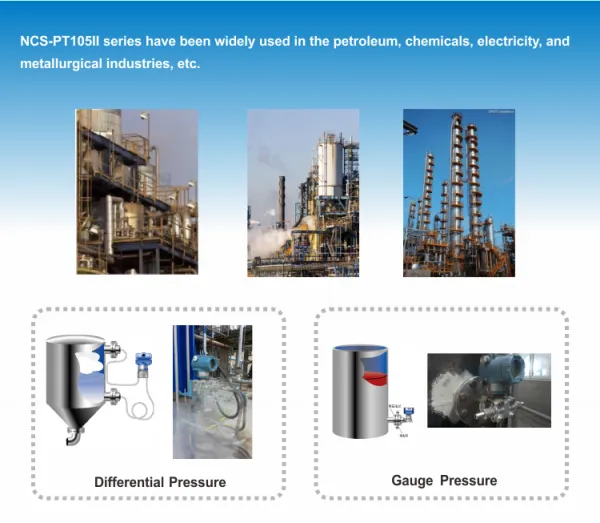

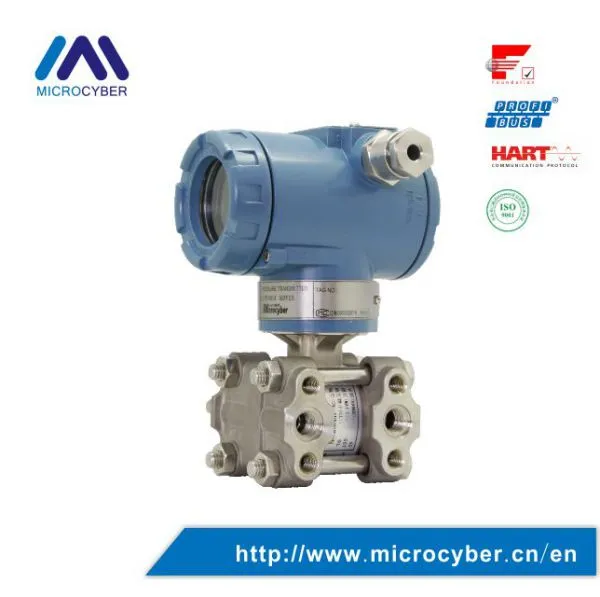

As a new generation of smart fieldbus pressure transmitter, NCS-PT105II series pressure transmitter with capacitance sensor is available on FF H1, Profibus PA and HART protocols. The Transmitter has high accuracy, better reliability and intrinsically safety. It can measure pressure, differential pressure, liquid level, flow, and other industrial parameters. It can be widely used in the petroleum, chemicals, electricity, and metallurgical industries, etc.
Features
Performance up to 0.075% of accuracy
Differential pressure, high static pressure, gauge pressure, absolute pressure, micro differential pressure
Automatically environmental temperature compensation
Parameters can be set by magnetic sticks, communicator, HOST software
Measurement media: liquid, gas and stream
HART®, FOUNDATION™ Fieldbus, PROFIBUS®
Up to ±0.1% of Upper Range Limit (URL) for 1 year
Details
Type Selection
Model |
Type |
NCS-PT105ⅡSG |
Gauge Pressure Transmitter |
NCS-PT105ⅡSA |
Absolute Pressure Transmitter |
NCS-PT105ⅡSD |
Differential Pressure Transmitter |
NCS-PT105ⅡSH |
Differential Pressure Transmitter for High Line Pressure |
Parameters
Parameter |
Value |
Accuracy |
Up to ±0.075% of span |
Stablity |
Up to ±0.1% of Upper Range Limit (URL) for 1 year |
Warranty |
Up to 2-year limited warranty |
Range Rate |
20°C, range rate 10:1 |
Measurement Range |
Up to 6,890 kPa differential; Up to 41,370 kP gauge |
Output |
Differential pressure, gauge pressure, absolute pressure (scaled variable) |
Communication Protocol |
HART®, FOUNDATION™ Fieldbus, PROFIBUS® |
Process Wetted Material |
316L SST, Alloy C-276, Tantalum |
Diagnostics |
Sensor, storage, communication; software/hardware failure alarm |
Explosion-proof |
Exia, Exd, IP65/IP67 |

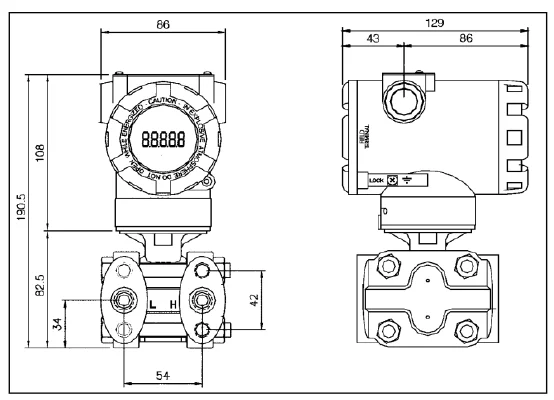

Size
