Modbus RTU to Fieldbus FF Built-in Module

Modbus RTU to Fieldbus FF Built-in Module thumbnail-1
Modbus RTU to Fieldbus FF Built-in Module thumbnail-2
Modbus RTU to Fieldbus FF Built-in Module thumbnail-3
Modbus RTU to Fieldbus FF Built-in Module thumbnail-4
Modbus RTU to Fieldbus FF Built-in Module thumbnail-5
Modbus RTU to Fieldbus FF Built-in Module photo-1
Modbus RTU to Fieldbus FF Built-in Module photo-2
Modbus RTU to Fieldbus FF Built-in Module photo-3
Modbus RTU to Fieldbus FF Built-in Module photo-4
Modbus RTU to Fieldbus FF Built-in Module photo-5
US$ 200 - 230 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Microcyber
Model Number:
M0313
Contact Supplier Request Quote Chat Now
Microcyber Corporation
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Microcyber
Model Number M0313
Product Overview
M0313 module makes it possible to convert Modbus RTU protocol directly to FF H1 protocol. Using M0313 module, the difficulty of development can be reduced and the upgrade of Modbus RTU device can be easily achieved. Only by simply configuration, the users can realize conversion from Modbus RTU protocol to FF protocol. M0313 module is provided with two LED indicating lights, used to indicate the current working status.
Features

  • Support 1 Modbus RTU slave device

  • 1 RES function block complying to FF specification

  • 1 Modbus transducer block

  • 4 PID function blocks complying to FF specification

  • 4 for each AI,AO,DI,DO function block complying to FF specification, each function block supports 8 channels

  • Modbus RTU device upgrading

  • LED working status indicator



Details

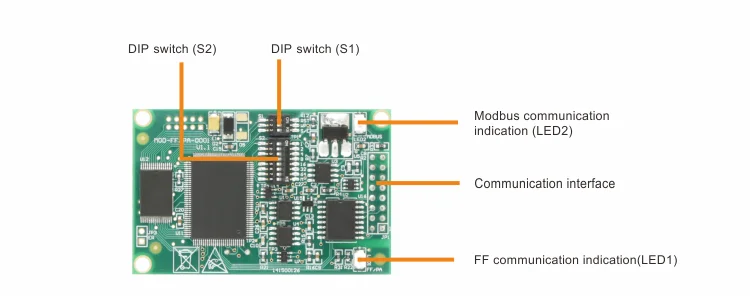

Whole Structure of  M0313 Module







Working Principle

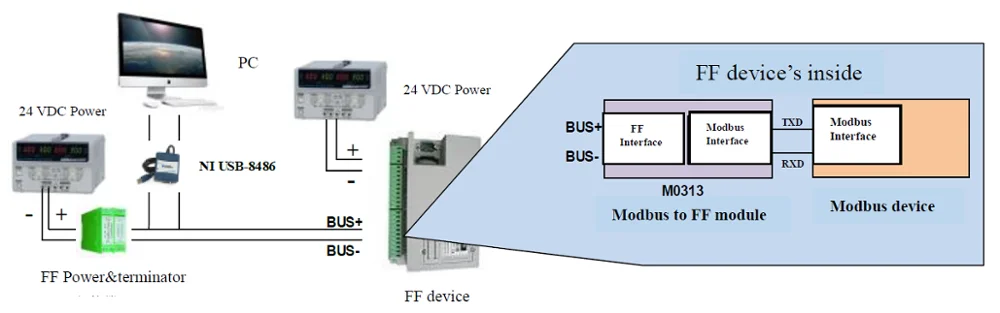

M0313 System Connection Diagram

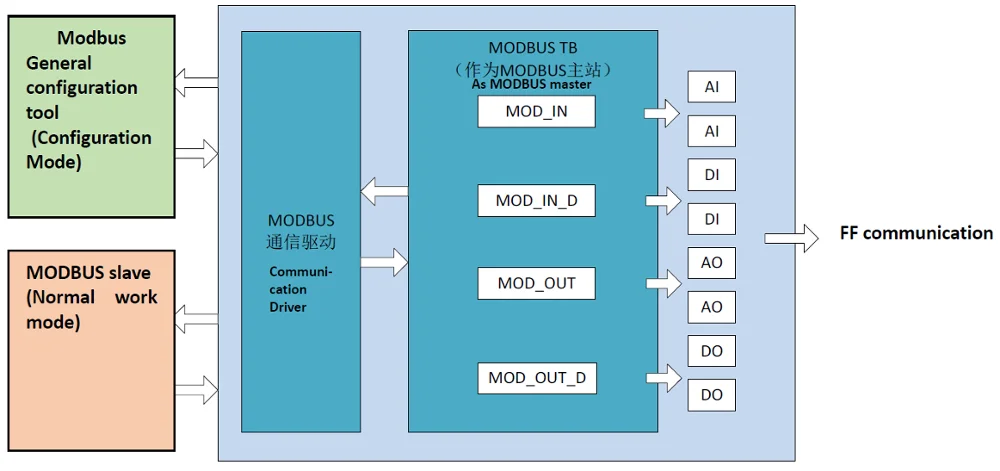

M0313  Working Principle Diagram



Specification

Parameters

Parameter

Value

Working Temperature

-40 °C ... +85 °C

Storage Temperature

-40 °C ... +85 °C

Power Supply

9 … 36 V, 14 mA @ 24 V

Dimension (L x W x H)

65 x 42 x 13 mm

Interface

TTL

Indicator Light

Rx/Tx, bus-specific

Weight

16 g

Original protocol

Modbus

New protocol

FF, IEC61158

Electromagnetic compatibility

GB/T 18268.1

Noise immunity

GB 9254

Installation

DIP16 2.54mm

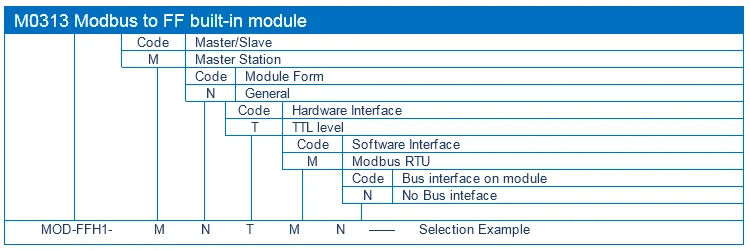

Selection







Size

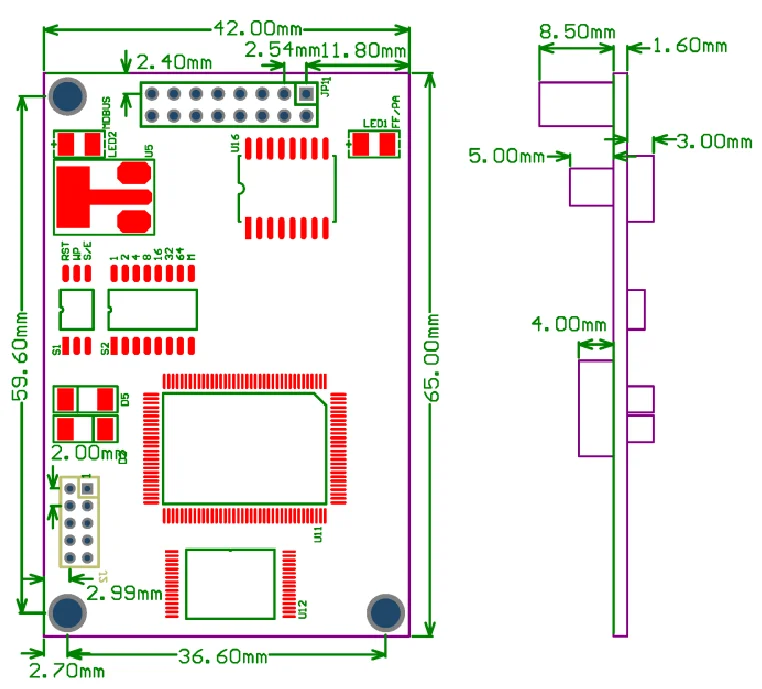

Size of  M0313 Modbus to FF Module (Unit:mm)
