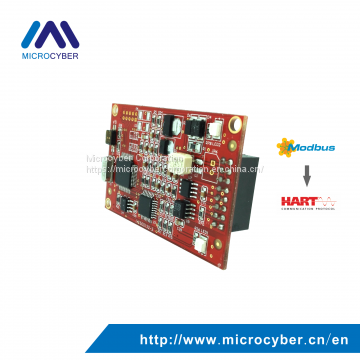

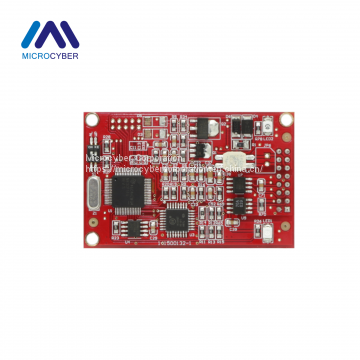

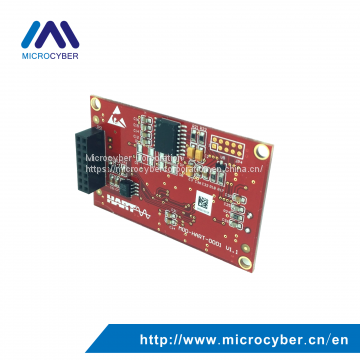

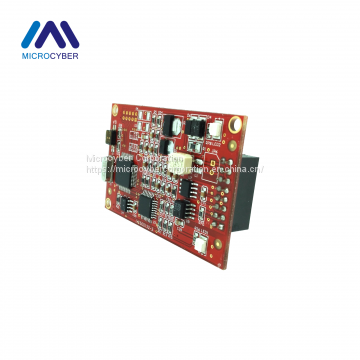

Modbus to HART Built-in Communication Module
Product Overview
M0310 module makes it possible to convert Modbus RTU protocol directly to HART protocol. Using M0310 module, the difficulty of development can be reduced and the upgrade of Modbus RTU device can be easily achieved. Only by simply configuration, the users can realize conversion from Modbus RTU protocol to HART protocol. M0310 module is provided with two LED indicating lights, used to indicate the current working status.
Features
Comply with HART PROTOCOL standard V7.0
HART slave station and Modbus master station form
Support 1 Modbus RTU slave device
Support 6 device variables,4 dynamic variables
Configured by HART interface
Write-protection of users data
Support high/low current transfinite alarm
TTL Modbus interface
LED power and communication indicator
Parameters
Parameter |
Value |
Working Temperature |
-40 °C ... +85 °C |
Storage Temperature |
-40 °C ... +85 °C |
Power Supply |
12 … 42 V |
Dimension (L x W x H) |
65 x 42 x 15 mm |
Interface |
TTL |
Indicator Light |
Rx/Tx, bus-specific |
Weight |
15 g |
Original protocol |
Modbus; GB/Z 19582.1-2004 |
New protocol |
HART; GB/T 29910.1~.6-2013 |
Electromagnetic compatibility |
GB/T 18268.1 |
Noise immunity |
GB 9254 |
Installation |
DIP16 2.54mm |
