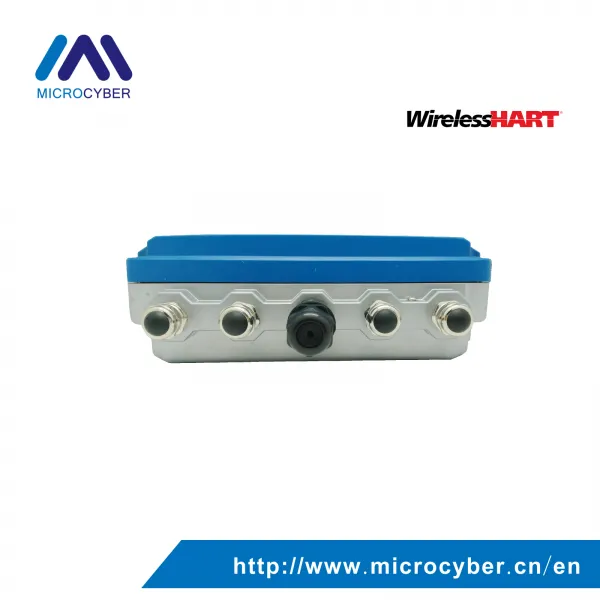

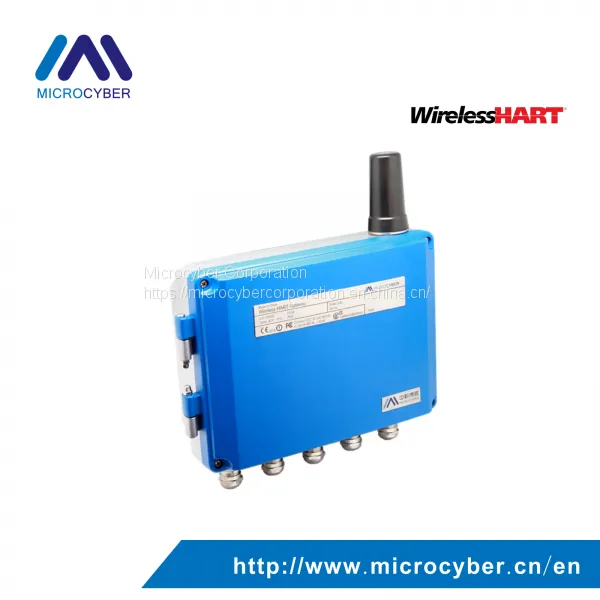

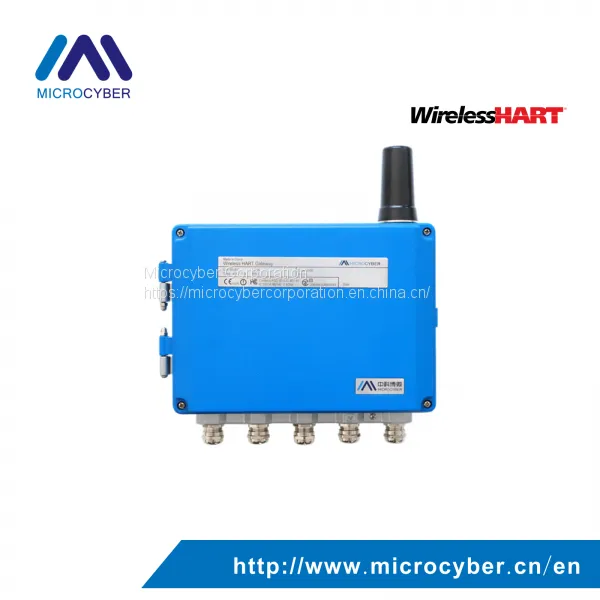

G1100 WirelessHART intelligent Gateway establish ,manage, mainten of WirelessHART net work
WirelessHART smart wireless gateway is in charge of establishment, management and maintenance of WirelessHART network, and network optimization, to make the devices in the network work in the effective and safe situation. Meanwhile WirelessHART smart gateway integrates device wireless information in the network to the PC system or data application, and provides related security assurance.
WirelessHART smart wireless gateway has the leading data reliability, network safety and advanced customer experience. It provides Web service for real-time network running check and data, without any restrictions. The engineer shall check abundant device status and device information in the Web service. And it provides total configuration function and the user may configure the device at any time and anyway.
When the user is determining the network structure and protocol to integrate, the physical connection type is pretty important. Ethernet is the primary physical connection type, and RS485 can be used as the optional one. When the sub-gateway is sending integrate data to host system, and the network structure below is helpful.
If the user has higher security requirements, the user shall connect WirelessHART gateway to PC system via LAN (rather than WAN)
Ethernet LAN Structure
RS485 connection supports Modbus RTU protocol. With this connection type, gateway shall connect RS485 bus, the bus is generally connected with I/O board or Modbus I/O board.
RS485 LAN Structure
The gateway supports RS485 serial port’s Modbus RTU and Modbus TCP based on Ethernet. As a sub-device of Modbus network, polling by Modbus master device or client end (PC system) is requested.
Microcyber’s production center is 1700m2, with anti-static ground, ventilating system, air source transporting system, temperature and humility control system and production devices. The production center consists of 4 workshops and 1 professional lab, they are: production workshop, assembly workshop, ageing workshop, maintenance workshop and product lab. There are professional production line, pressure transmitter assembly line, instrument assembly line, control system module assembly line and product testing line. Microcyber has the batch capacity for 10 thousand devices per year.
