Home > Instruments & Meters > Meter for Liquid & Gas > Thermometer & Hygrometer > Digital Temperature Transmitter/Controller NCS-TT105 With FF Protocol

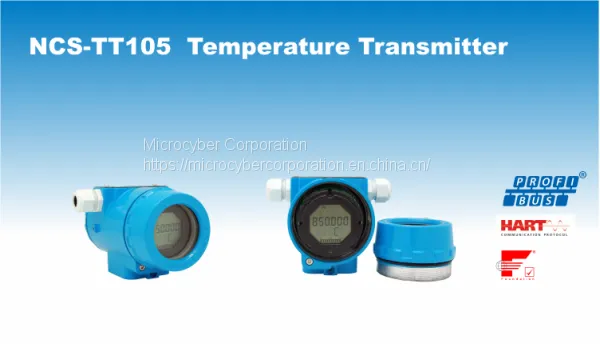

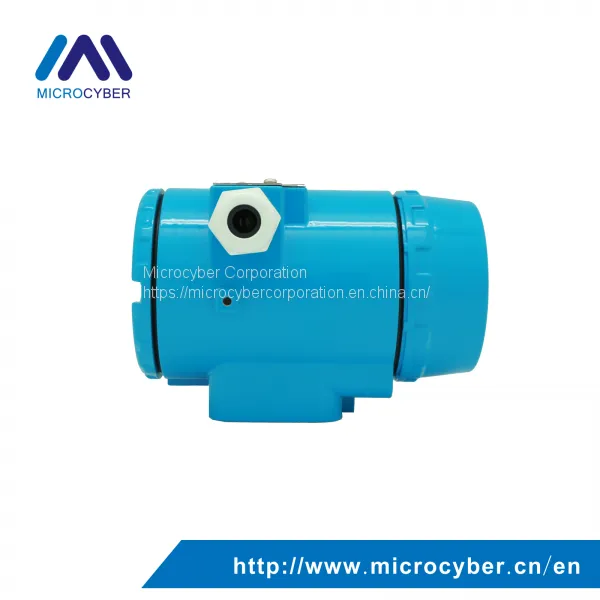

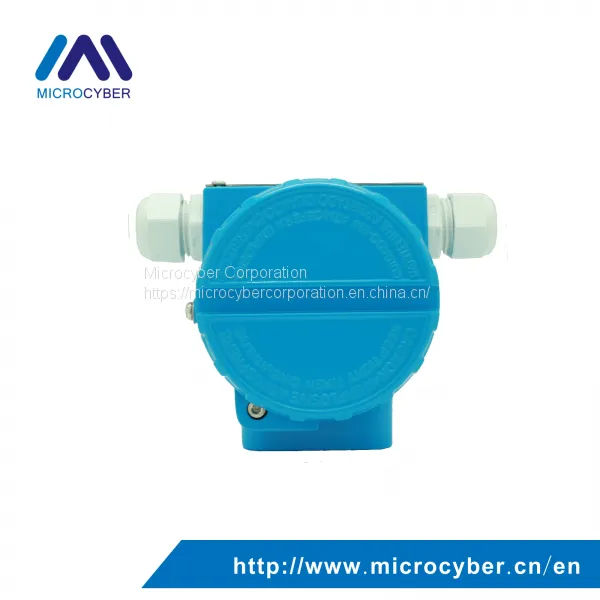

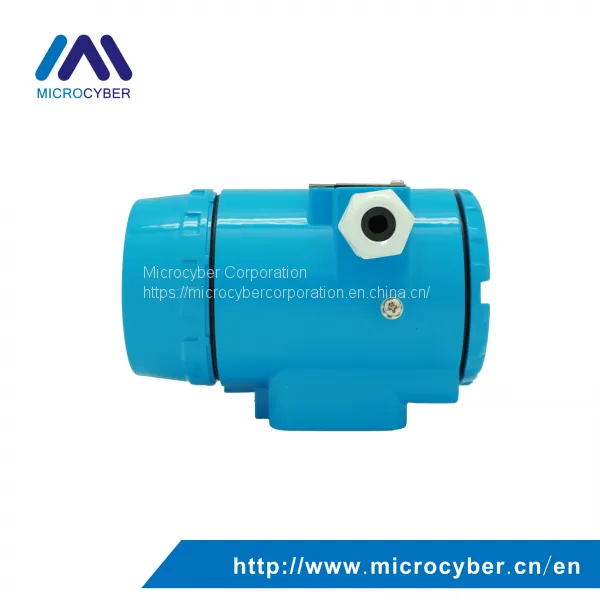

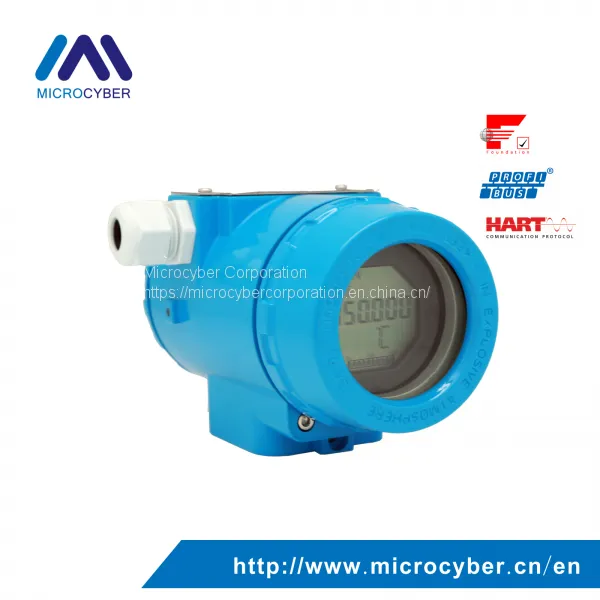

Digital Temperature Transmitter/Controller NCS-TT105 With FF Protocol
US$ 390 - 430
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Microcyber
Place of Origin:
China
Model Number:
NCS-TT105
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenyang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Industrial DIN Rail Temperature Transmitter NCS-TT106H-R With HART ProtocolUS$ 62 - 80MOQ: 1 Piece -
Hot Intelligent Isolated Temperature Measurement Multi Channel TransmitterUS$ 500 - 550MOQ: 1 Piece
-
Hot Sale Head Mounted Temperature Measurement 4-20mA Temperature TransmitterUS$ 60 - 78MOQ: 1 Piece
-
G0310 MODBUS to HART Gateway Modbus-RTU Protocol to HART ProtocolUS$ 160 - 190MOQ: 1 Piece
-
HART 4-20mA Protocol to Modbus RTU RS485 External Smart GatewayUS$ 189 - 199MOQ: 1 Piece
Brand Name
Microcyber
Place of Origin
China
Model Number
NCS-TT105
Usage
Industrial
Theory
Temperature Transmitter
Parameter |
Value |
Input Signal |
Resistance: PT100, PT1000, CU50, CU100, 0~500Ω, 0~4000Ω Thermocouple: B, E, J, N, K, R, S, T Voltage signal: -100mV～100mV |
Channels |
2 Channels |
RTD connection |
2, 3 wire |
Power Supply of Fieldbus |
FF/PA：9～32 VDC/Current : ≤ 14mA HART: 12～42VDC |
Insulation |
Between housing and terminal board: 500 Vrms (707 VDC) |
Display |
6-digit numeric and 5-digit alphabet LCD Display |
Operation Temperature |
-40 ～ 85℃ (Without display) -30 ～ 70℃ (With display) |
Humidity Range |
0% ～ 100% RH |
Start Time |
≤ 5s |
Update Time |
0.2s |
Protection grade |
IP 65 |
EMC |
Designed to comply IEC 61000 (GB/T 18268-2000) |
