Introduction

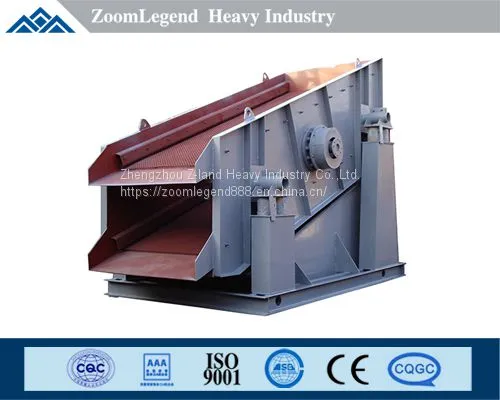

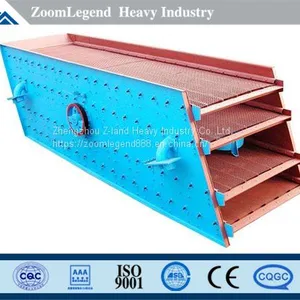

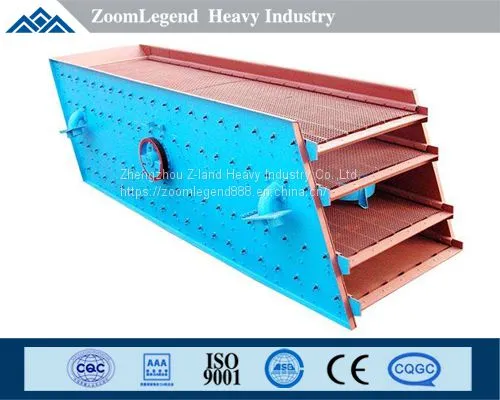

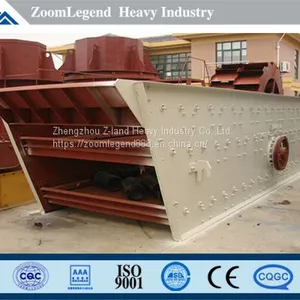

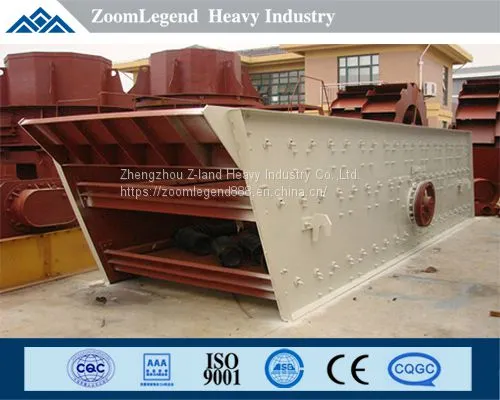

The vibrating sieve machine makes circular movement, it is a multi-layer and new type of vibrating screen, which is specially designed for the stone screening in quarry, and can also be used for product grading in coal dressing, mineral dressing, building materials, electric power and chemical industry.
[Application]: sand and stone yard, concrete making sand, dry mortar, mechanism sand, power plant desulfurization, quartz sand, etc.
[Materials]: river pebbles, granite, basalt, iron ore, limestone, calcite, quartz, diabase, etc.
Advantage
1.Novel structure
Novel structure, large processing capacity and high screening efficiency.
2.Convenient maintenance
Adopt cylinder eccentric shaft exciter and partial block to adjust amplitude, easy to use and maintain.
3.Long service life
Use spring steel woven screen or punching screen plate, long service life, not easy to plug holes.
4.Little noise
Rubber vibration isolation spring, long service life, low noise, stable over resonance area.
Working principle
Vibrating sieve machine is mainly composed of screen box, screen mesh, vibrator, vibration damping spring device, bottom frame,etc.
The motor rotates the exciter eccentric block at high speed through the v-belt.The eccentric block in operation generates a large centrifugal force, which stimulates the circular movement of the sieve box with a certain amplitude. The material on the sieve box is subjected to the impulse passed by the sieve box on the inclined sieve surface and produces a continuous throwing movement. When the material meets the sieve surface, the particles smaller than the sieve hole are screened through, so as to realize classification.
Technical Parameter
Model |
Deck Size (㎡) |
Capacity (m3/ h) |
Motor Power (kw) |
Weight (t) |
2YK1224 |
2.88 |
20-120 |
5.5 |
2.15 |
2YK1235 |
4.2 |
20-150 |
5.5 |
2.45 |
3YK1235 |
4.2 |
20-150 |
7.5 |
3.05 |
4YK1235 |
4.2 |
20-150 |
11 |
3.65 |
YK1545 |
6.75 |
22-150 |
11 |
4.2 |
2YK1545 |
6.75 |
22-150 |
15 |
5.2 |
3YK1545 |
6.75 |
22-150 |
15 |
6.05 |
4YK1545 |
6.75 |
22-150 |
18.5 |
7.14 |
YK1860 |
10.8 |
32-350 |
15 |
4.65 |
2YK1860 |
10.8 |
32-350 |
18.5 |
6.14 |
3YK1860 |
10.8 |
32-350 |
18.5 |
7.59 |
4YK1860 |
10.8 |
32-350 |
22 |
9 |
