High efficient GZD vibrating feeder in Saudi Arabia
- 60 Set / Sets per Month
- Qingdao, Shanghai port
- T/T L/C
- 25 days
- Hanging Vibrating Feeder Screw ZSW Series Vibration Feeder For Quarry Stone
- Coal Mining Industry Vibratory Feeder Industrial And Vibrating Feeder Capacity Calculation
- Vibratory Feeder Industrial And Vibratory Feeder Controller Price
- Vibratory Feeder Industrial And Vibrating Feeder Capacity Calculation
- Mining Selecting Vibratory Feeder Industrial For Sale
- Vibratory Feeder Industrial And Vibratory Feeder Controller Price
Product Details
Brand Name: | Zoomlegend | Place of Origin: | China | Model Number: | GZD-750×2500 |
Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 year |
Weight: | 3260kg | Dimension(L*W*H): | 2500×1460×780mm | Power Type: | Electric |
Application: | the metallurgical, coal, ore concentration, construction, chemical and grinding industries matched with the machines in crushing and screening. | Condition: | New | Power(W): | 1100*2 |
Capacity(t/h): | 100 |
Product Description
I.Product Introduction
Vibrating feeder is a kind of machine to feed materials in patches and particles to the receiving device evenly, regularly and continuously from the storage bin when it works. In the sand production line (sand production line and stone production line), it can feed continuously and evenly to the crushing machines and roughly screen materials. The vibrating feeder is mostly applied in the metallurgical, coal, ore concentration, construction, chemical and grinding industries matched with the machines in crushing and screening.
II.Working Principle

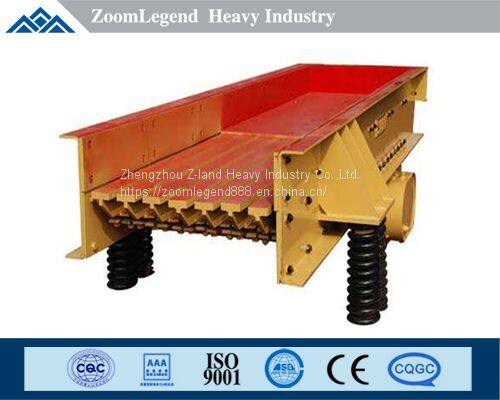

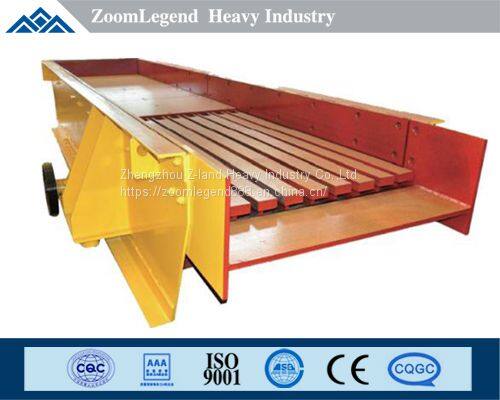

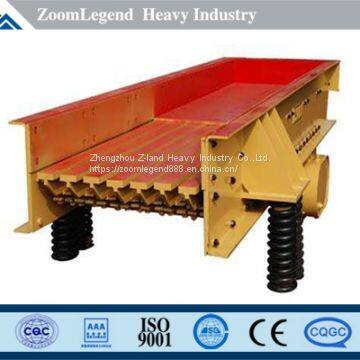

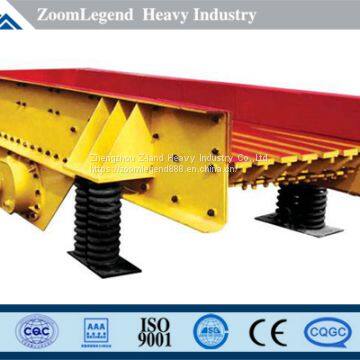

GZD Vibrating feeder is mainly consisted of vibrating frame, vibrating motor, spring, supporting base and wear-resistant liner. The startup of the vibrating motor forces the frame to vibrate on the supporting spring. Driven by the vibration, the materials slip and sling on the chute so that the materials will move forward and the feeding is completed.
III.Technical Parameters
Model |
| Capacity (t/h) | Motor Power (kw) | Installation Slope (°) | Total Weight (kg) | Chute Dimension (mm) | Outer Dimension (L×W×H)(mm) | ||
GZD-650×2300 | 300 | 80 | 1.1×2 | 10 | 2798 | 650×2300 | 2300×1360×780 | ||
GZD-750×2500 | 350 | 100 | 1.1×2 | 10 | 3260 | 750×2500 | 2500×1460×780 | ||
GZD-850×3000 | 400 | 120 | 3×2 | 10 | 3607 | 850×3000 | 3110×1800×1600 | ||
GZD-1000×3600 | 500 | 150 | 5.5×2 | 5 | 3895 | 1000×3600 | 3850×1950×1630 | ||
GZD-1100×4200 | 580 | 240 | 5.5×2 | 5 | 4170 | 1100×4200 | 4400×2050×1660 | ||
GZD-1100×4900 | 580 | 280 | 7.5×2 | 5 | 4520 | 4900×1100 | 5200×2050×1700 | ||
GZD-1300×4900 | 650 | 450 | 11×2 | 5 | 5200 | 4900×1300 | 5200×2350×1750 | ||
GZD-1500×5600 | 1050 | 450-800 | 12×2 | 10 | 7500 | 1500×5600 | 5700×2000×1750 |
IV.Characteristics
GZD Series vibrating feeder is featured by simple structure, even feeding, good continuity, adjustable exciting force, and easy operation to alter and control the flow at all times. As the vibrating source, the eccentric block has several strong points, such as low noise, electricity saving, good adjustability and prevention of materials blockage. The closed body can avoid the dust pollution, featured by stable vibration, reliable operation and long duration; the exciting force is adjustable to alter and control the flow at any time which is easy and stable; as the vibrating source, the vibrating motor has several strong points, such as low noise, electricity saving, good adjustability and prevention of materials blockage. Vibrating feeder is characterized by simple structure, reliable operation, convenient installation and adjustment, lightness, small size and easy maintenance. The closed body can avoid the dust pollution.
This series of vibrating feeder is characterized by reliable operation, low noise, non-blockage of materials, long duration, convenient maintenance, lightness, small size, easy installation and adjustments and good comprehensive performance. The closed body can avoid the dust pollution.
