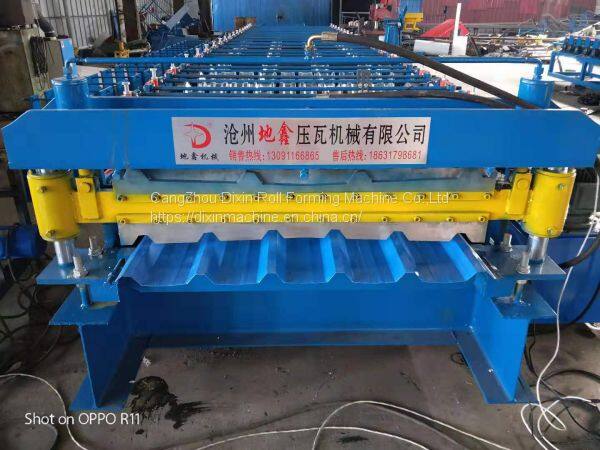

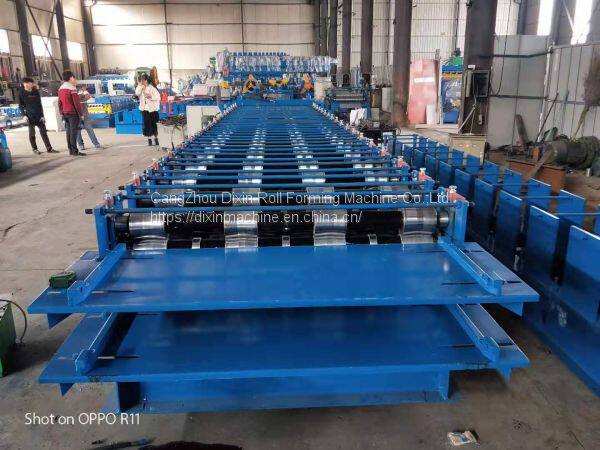

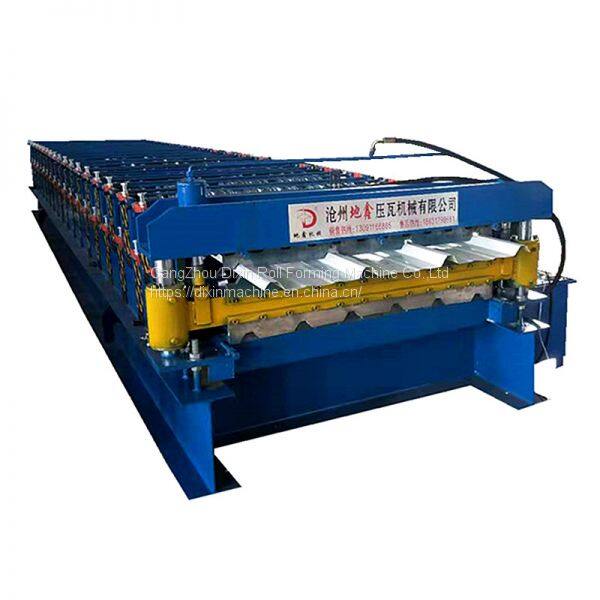

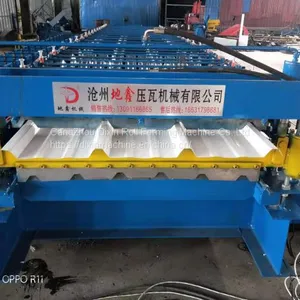

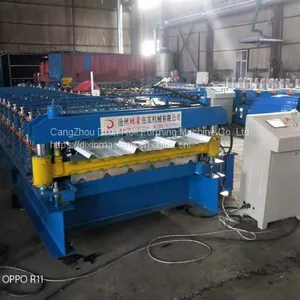

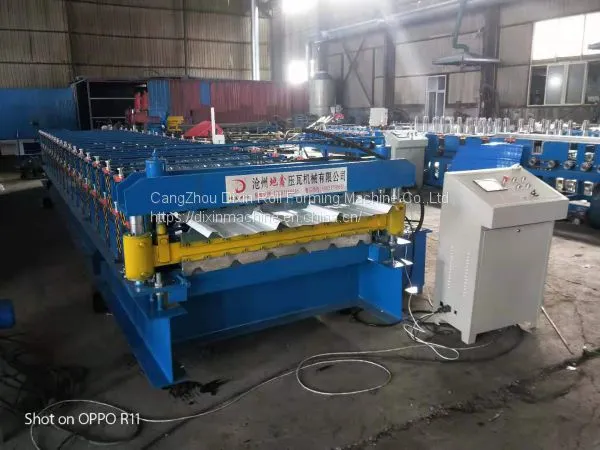

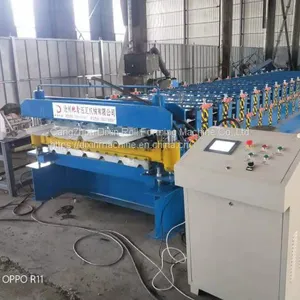

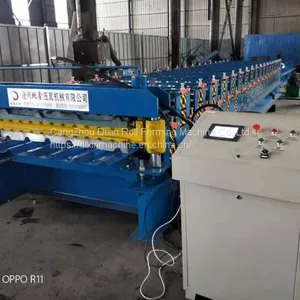

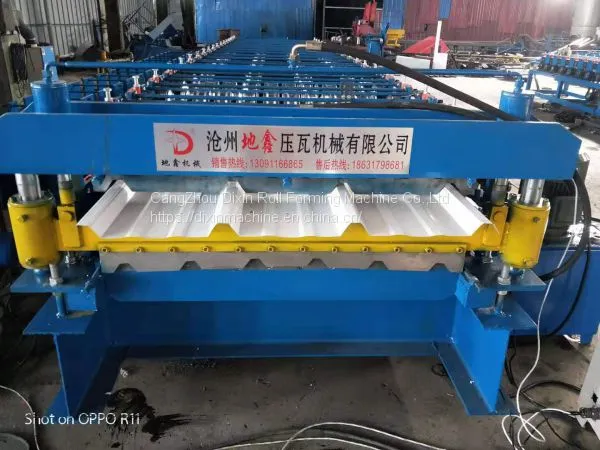

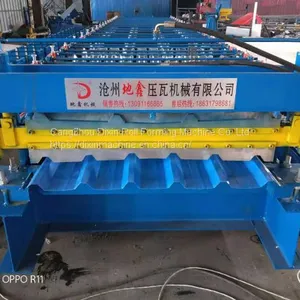

Trapezoidal corrugated forming Machine From Best China Manufacturer
Click here for more
Technical parameter
Suitable material |
PPGI or galvanized coil |
|
Suitable material |
Raw material width:1220mm thickness 0.25-0.8mm |
|
Productivity |
10-18m/min |
|
Roller forming steps |
16steps |
|
Roller material |
45# after heating treatment and with chromium |
|
Spacer, balance bar, screw |
All do chromium to ensure beautiful appearance |
|
Diameter of active shaft |
75mm |
|
Main machine structure |
350H |
|
Wall plate |
18mm |
|
Power |
7.5KW main motorno noise |
|
Shear |
Hydraulic shear, blade material CR12 |
|
Transmission |
1.2inch chain |
|

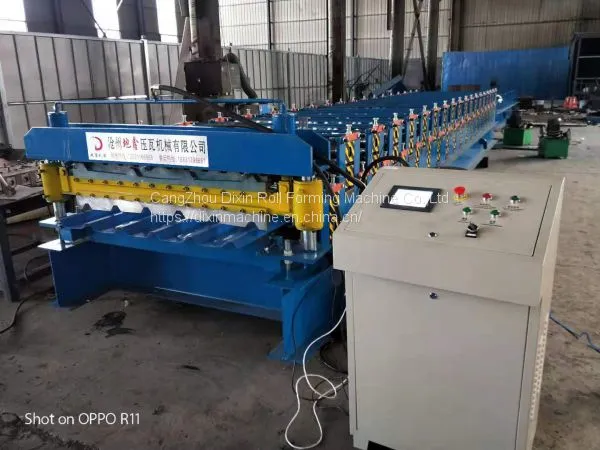

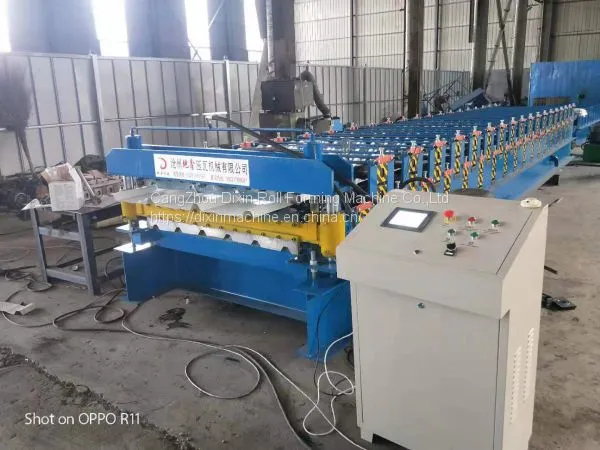

Control system |
PLC(Panasonic)control withTouch Screen, Mitsubishi frequency converter Encoder(Omron) |
|
Hydraulic system |
5.5kw |
|
Voltage |
AC380V/50HZ/3 phase or AC220-240V/60HZ/3 phase or AC220-240V/60HZ/single phase |
|
Upgrade manual decoiler |
Max loading weight:6500kgs,Inner Diameter:508-610mm,max coil width:1250mm |
|
Set off table |
one pcs, 6 step roller, each is 3000mm long |
|
Size(length*width*height) |
8600*1500*1500 |
|
Weight |
4T |
|
Cangzhou Dixin Roll Forming Machine Co.,Ltd,Our company is the professional and leading manufacture,can manufacture ,design,installation and debug various roll forming machines and metal processing sheet equipments ,which produce metal roof wall panel,glazed roof tile , CZ steel purlin,floor desking,roof ridge cap,sandwich panel ,roof rtruss,shutter panel,shutter slat,door frame, guardrail ,and metal sheet uncoiler ,bending ,slitting,cutting,flattening,punching,crimpingl. especially can design machine according to customer's request.
Service
1. We can produce the specialmachine,send your drawing to us,we can desgin for you.
2. If you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. We provude a one year warranty and lifelong technical support,wa can send our technical to you to give you on-site training.The training period would be for no more than one week with the customer paying for the visa,return ticket,food ,accommodations and a daily wage of US100
4. Engineer available to service machinery overseas.
5. If you come to visit our factory ,we can book the room for you,car pick up to send.
Please contact me anytime
