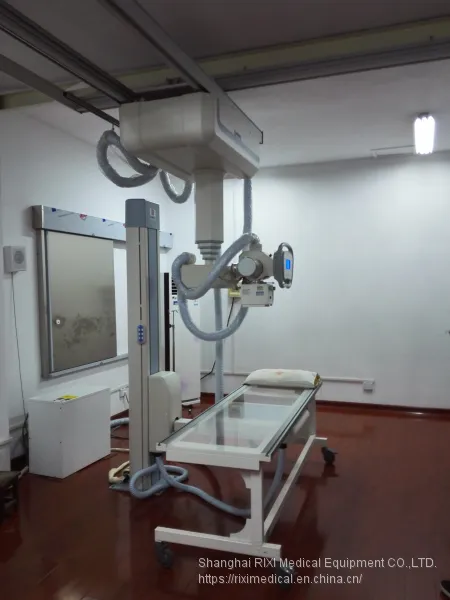

Help CenterRX2210 High Frequency Digital X-ray Radiography System
Related Products
-
RX2211 High Frequency Digital X-ray Radiography SystemNegotiableMOQ: 1 Unit -
RX2310C High Frequency Mobile C-arm SystemNegotiableMOQ: 1 Unit
-
RX2310B High Frequency Mobile Digital C-arm SystemNegotiableMOQ: 1 Unit
-
RX2310B High Frequency Mobile C-arm SystemNegotiableMOQ: 1 Unit
-
RX2310C High Frequency Mobile Digital C-arm SystemNegotiableMOQ: 1 Unit
Key features:
1, RX2210 use the most advanced flat-panel detector, which is imported from France, Thales brand, it designed for surgical and interventional units, this detector is ready to run almost instantly .
2, it offers a wide variety of operating modes ,from 30 to 100 images/ second, to meet the requirements for different types of surgery ,including vascular,
cardiovascular, neurological ,orthopedic and pediatric.
3, it’s based on cesium iodide technology, featuring exceptional x-ray absorption capacity . All systems fitted with the detector dose, high-quality images can be easily obtained.
Technical parameter:
Item No |
technology parameter |
|
1.Generator | ||
Supplier |
Canada CPI(domestic brand for optional) |
|
2.Tube | ||
Supplier |
Japan TOSHIBA(domestic brand for optional) |
|
Item No |
E7240X |
|
Power output |
50KW |
|
Tube currency |
25-630mA |
|
Voltage output |
40-150KV |
|
Power requirement |
3phase,380V |
|
U-C arm | ||
SID |
1000-1800mm |
|
Arm up and down moving range |
650-1700mm |
|
Tube rotating |
360° |
|
Detector rotating range |
0°- 90° |
|
3.Flat Panel Detector France Trixell（domestic brand for optional) | ||
Vision |
(16"×17") |
|
Pixel matrix |
2880×2880 |
|
Gray-scale |
16bit |
|
Spatial resolution |
3.4lp/mm |
|
Tube focus |
0.6/1.2mm |
|
Warranty : the Flat Panel , x ray tube, generator for 3years, whole machine for one year.
Power supply: Three-phase 380V
