SF100BG 100mA Photography X-ray Machine Human and Veterinary

SF100BG 100mA Photography X-ray Machine Human and Veterinary thumbnail-1
SF100BG 100mA Photography X-ray Machine Human and Veterinary thumbnail-2
SF100BG 100mA Photography X-ray Machine Human and Veterinary thumbnail-3
SF100BG 100mA Photography X-ray Machine Human and Veterinary thumbnail-4
SF100BG 100mA Photography X-ray Machine Human and Veterinary photo-1
SF100BG 100mA Photography X-ray Machine Human and Veterinary photo-2
SF100BG 100mA Photography X-ray Machine Human and Veterinary photo-3
SF100BG 100mA Photography X-ray Machine Human and Veterinary photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
RIXI Medical
Place of Origin:
China
Model Number:
SF100BG
Contact Supplier Request Quote Chat Now
Shanghai RIXI Medical Equipment CO.,LTD.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name RIXI Medical
Place of Origin China
Model Number SF100BG
Properties Medical X-ray Equipments & Accessories
Specifications

fixed medical radiographing x-ray machine 100mA
1. ISO approved
2. Quick delivery
3. High Quality
4. Quick delivery



Certificate: ISO13485





Conventional analog radiography X-ray equipment 100mA for human or veterinary use.



We have six models X-ray machine, three mobile types and three fix types.

Hot mobile x-ray machine are our hot sale:

 50mA mobile SF50IIA ISO approved, 70mA mobile SF70A CE approved, 100mA

mobile SF100BY CE approved.

Three fix x-ray machines:

100mA x-ray with fixed bed SF100BG ISO approved, 200mA x-ray with movable bed

SF200BS ISO approved, 300mA x-ray with movable bed SF300BS ISO approved.

All these six models can be used for human radiography and veterinary radiography.

But most customers would prefer 70mA mobile SF70A for veterinary use.



Africa, Asia, Latin America, Parts Europe are our main markets.


General Description

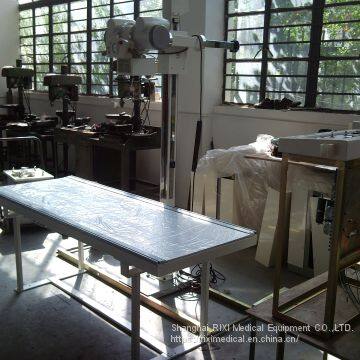

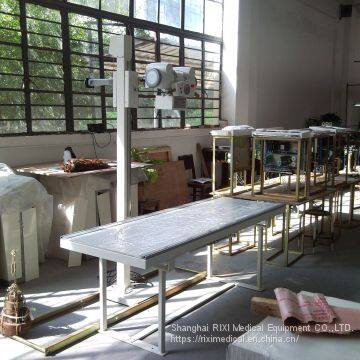

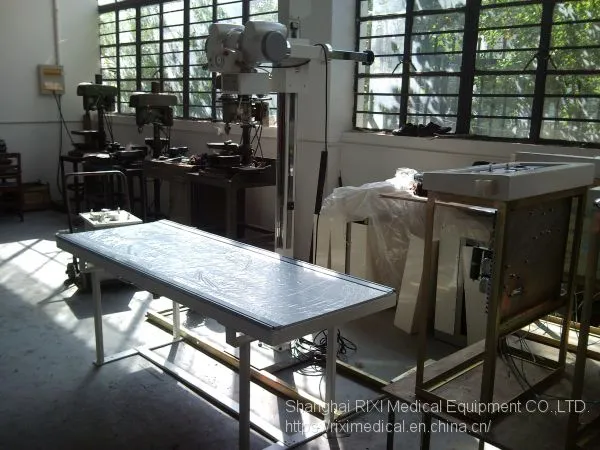

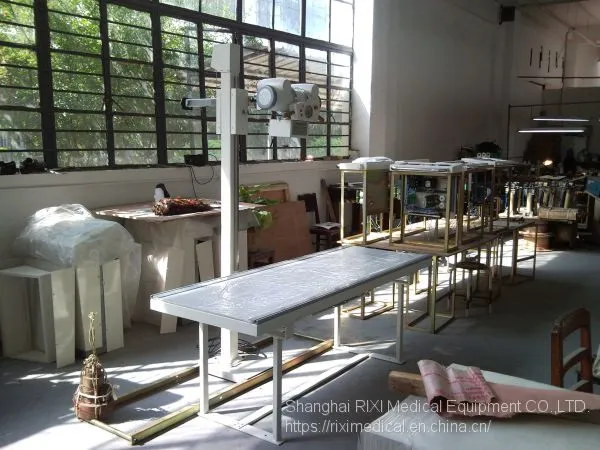

Model SF100BG 100mA medical photography x-ray unit

can  be used for head, chest, belly, arms and legs, bone in lying position, stand position, side position of photograph.



Model SF100BG 100mA medical photography X-ray unit

can use for ordinary photograph and grid photography.



Advantages

Used for general radiography and ray-filter radiography.

1. Single bed with single bulb

2. Good design,complete functions and reasonable structure.

3. High-pressure system march-past structure. Full-wave rectification and high voltage generator, independent x-ray

 tube assembly (tangential type pipe sleeve), large power output, stable performance.

4. Power supply voltage (V), photography (kV), stepless continuous adjustable. Equipped with

  voltage stabilizer, space charge compensator, kV compensator and power supply compensator so that the X-ray

 output of this unit can be kept constant.

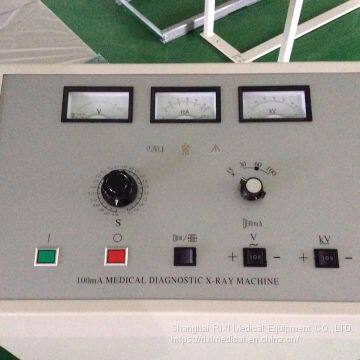

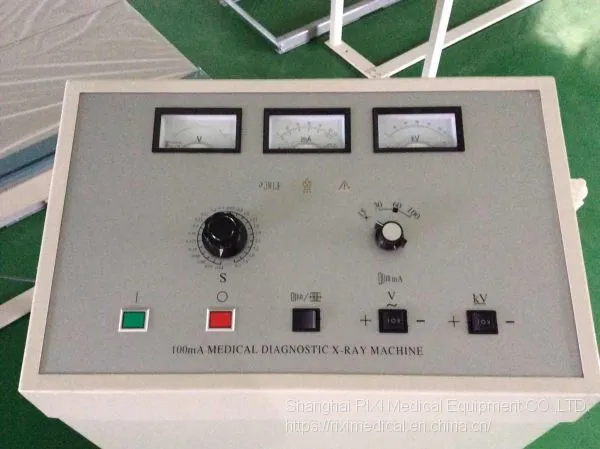

5. Timer circuit, exact time control. kV, mA and s capacity interlocking  control system

6. Flat photographic bed, with vibrating type ray-filter.

7. Only track, easy to install



Main Technical Conditions

Mains Voltage:220V/380V ±10% AC ; Phase: Single Phase

Supply Capacity:7kVA

Power Frequency:50Hz ±1%

Power Inner Resistance: not more than 0.6 for 220V; not more than 2 for 380V

Main Technical Specifications

Maximum rated capacity

Current(mA)

Voltage (kvp)

Exposure time(s)

15

90

0.04-6.3

30

90

0.04-6.3

60

90

0.04-6.3

100

85

0.04~2.5

Timer

0.04s ~6.3s   in 22 shifts, electronic type

Photographic bed

Bed face (L*W*H) 1900*695*700mm

Ray-filter:
1. grid density: N28;
2. convergence distance:100cm;
3. grid ratio: r8

High voltage transformer unit

Capacity 7kvA; Max. DC output voltage 90kv; Max.DC output current 100mA

Pillar of x-ray source unit

1. moving in length along the bed: >1350mm
2. move in breadth: >360mm
3. moving up and down: 720-1800mm

Specification of x ray tube

XD4-2.9/100  small focus 1.8mm, big focus 4.3mm





Packing details

Gross weight 600kg
N.W. 500kg
Packing dimension 218cm*80cm*113cm, 1.97CBM





Certificate&Warranty&service

ISO13485;

12 months from the date of shipment;

Best after-sale service, technical support forever.





Mobile types suitable for veterinary

50mA mobile x-ray unit model SF50IIA with ISO13485;  70mA mobile x-ray unit model SF70A with CE certificate; 100mA mobile x-ray unit model SF100BY with CE certificate
