50MA Medical Diagnostic X ray unit
Certificate: ISO13485, CE, FSC
Bedside Conventional analog radiography X ray unit 50mA for human or veterinary use.
General introduction:
1. Type SF50BY 50 mA mobile medical radiography x ray unit is a full wave rectification photographic medical diagnosis machine whose tube head can take photos. It is suitable for X-ray photographing in wards and operation rooms in all hospitals as well as special hospitals, especially
in orthopaedics-wards. It can also used for X-ray photographing in the family sickrooms.

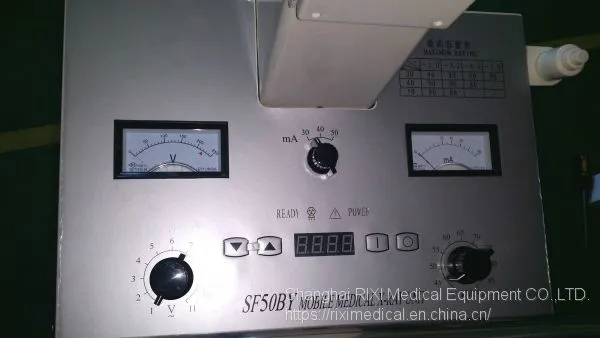

2. Due to its adoption of high voltage silicon stack full-wave rectification technology, the efficiency of the X-ray tube used in the machine is heightened. This machine has a kV, mA and s capacity interlocking control system, and an overload indicating so as to prevent the tube head of the machine from damaging due to the accident operation. Either the wired manual
exposure or the remote control exposure may be used by the technician at his selection during
photographing. In the course of exposure, there will appear a sound and light indication for the
convenience of patients and technicians.
3. This machine is equipped with an electric beam limiting device, on which there is an indicator
indicating the ray beam aiming at the center of the X-ray film, the position of the focus center of the patient against the center of the X-ray film can thus be determined easily with reference to the indication.

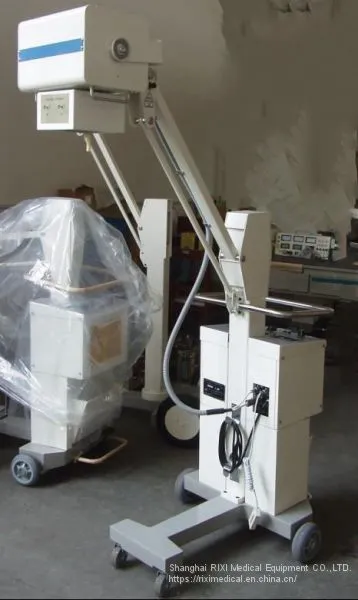

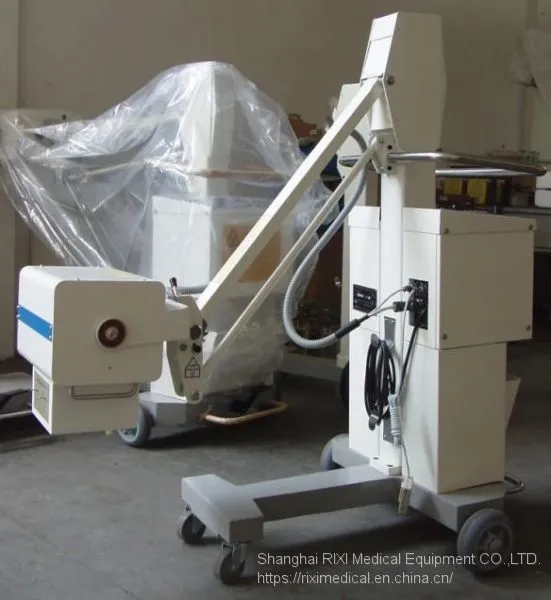

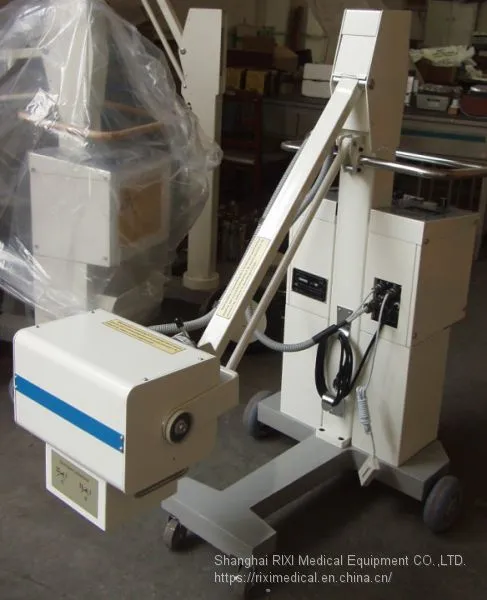

4. This x ray unit is also provided with a tube head cantilever moving up and down. It is easily to
set the tube head of the machine to required angle and height for the convenience of photographing. If it is necessary to move the whole machine, lower the machine tube head cantilever to its lowest
position, and lock it up for the convenience and safety of machine movement.
5.The total weight of the x ray unit is 90 kg, and easy to be moved with a light handcart (65 cm in width) through the corridor in the ward of hospital and between hospital beds.
Main purpose and features
1. Used for X-ray radiography in wards, especially in orthopaedic wards.
2. Single focus point, high voltage silicon stack full-wave rectification.
3. kV, mA and s capacity interlocking control system, overload indicating system.
4. Wired manual exposure & remote control exposure
5. Sound and light indication during the course of exposure.
Maximum ratings
|
s kVp
mA |
0.08~1.0 |
2~2.5 |
3.2~4.0 |
5.0~6.3 |
30 |
90 |
90 |
90 |
90 |
40 |
90 |
90 |
90 |
/ |
50 |
90 |
80 |
/ |
/ |
90 |
/ |
/ |
/ |
Main Technical Data
1. Power requirements
Voltage:180-240V Frequency:50Hz; Internal resistance: ≤1Ω Power capacity: 5k VA
Current (Max., instantaneous)
2. Timer: 0.08s to 6.3s, in 20 shifts, electronic type
3. Maximum distance from the focus of the X-ray tube to the ground ≥1820 mm
4. Minimum distance from the focus of the X-ray tube to the ground ≤550 mm
5. The maximum exposure field is 350×350 mm if the distance between the
focus of the X-ray tube and the film is 650 mm, and the maximum exposure
field is 450×450 mm if the distance between the focus and the film 1000 mm.
6. The remote control exposure distance ≥ 6m.
7. X-ray tube focus:2.3×2.3
8. The required pulling force to move the whole machine ≤50N (5kg)
9. Net weight of the unit:90kg
Packing datas
| Gross weight | 200kg |
| N.W. | 110kg |
| Packing dimension | 150cm*132cm*80cm, 1.58CBM |
Certificate&Warranty&service
CE, ISO13485; 12 months from the date of shipment;
Best after-sale service, technical support forever.
Mobile types suitable for veterinary
50mA mobile X ray unit model SF50BY with ISO, CE, FSC certified; 70mA mobile X ray unit model SF70BY with CE, ISO, FSC certified; 100mA mobile X ray unit model SF100BY with CE, FSC, ISO certified.
Main countries we had exported to:
Nigeria, Lesotho, Liberia, Egypt, Sierra Leone, South Africa, Mozambique, Sudan, Kenya, Benin, Indonesia, Vietnam, Turkey, Philippines, Cambodia, Myanmar, Saudi Arabia, Georgia, Chile, Paraguay, Bolivia, Mexico, Albania, Romania etc.
