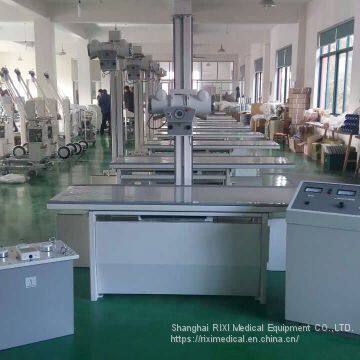

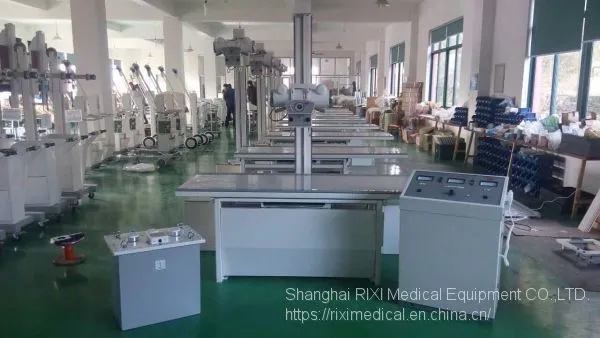

200mA x ray machine stationary model SF200BZ
1. Main purpose and features:
1.Single bed with single bulb

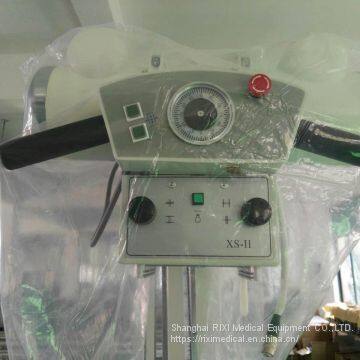

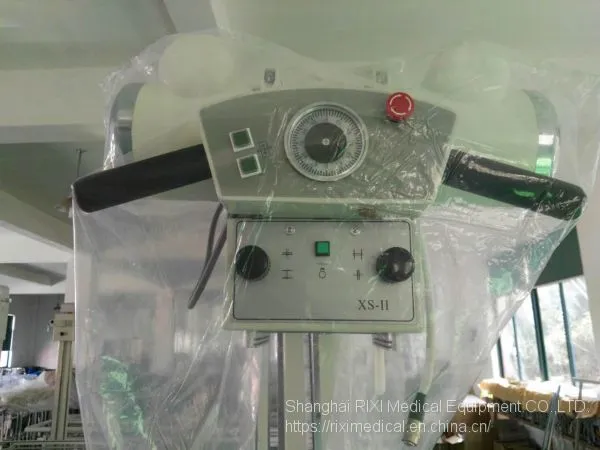

2.High visual and operational console with tube voltage ,tube current, and photographic time
display on the LCD monitor
3.Prestore 8 kinds of photograph parameters and select, modify,store the parameters under
condition of choice
4.Auto power and voltage control,kv continuously adjustable ,auto Fault Alarm
5.Premier high voltage with high power SCR zero control circuit
6.X-RAY sub-assembles are equipped with Tangential-pipe kits

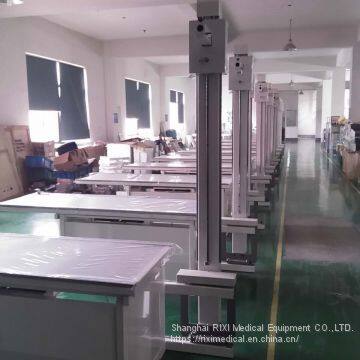

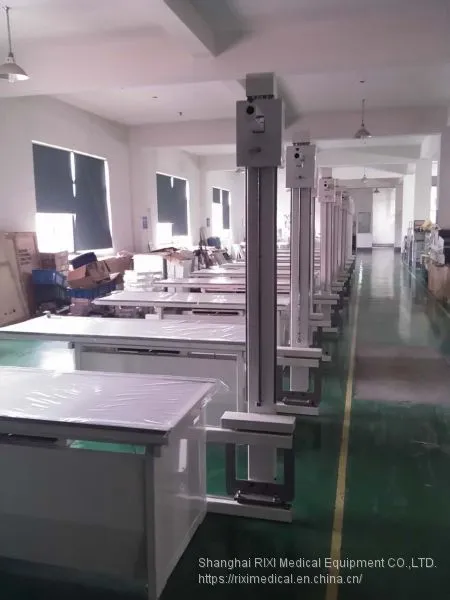

graph bed, column, Vibration Filter limiter integrated equipment without necessity of
up-and-down tunnel
graphy bed can be moved both laterally and vertically, column can turn 4*90
9.Function of load chains, exposure time control ,Start and stop rotating anode, Preheat
filament, sub-assembles temperature control, and so on.
2. Main Technical Data:
1. Power supply
single phase 220V/380V±10% Frequency:50Hz±1Hz Rating>20kVA Internal resistance: 220V:0.25Ω 380V:0.75Ω
2. Photography
Voltage: 50-100kV *50-120 kV
Current: 50mA, 100mA for small focus; 50mA,100mA,150mA,200mA for big focus.
Time:0.04~6.3s
X-ray tube |
Model |
XD51-20.40/125 |
Focus |
Small focus:1×1mm, Big focus:2×2mm |
|
Radiographic table |
Table face(L*W*H) |
2000mm×710mm×700mm |
Moving range of table face |
620mm×200mm |
|
Ray-filter |
Travel (in length):620mm (in breadth):200mm |
|
Grid density N28 | ||
Convergence distance of 100cm | ||
Grid ratio R8 | ||
Pillar of X-ray tube unit |
Moving in length along radiographic table |
1800mm or 1600mm |
|
Distance to ground as moving up and down (along upright post) |
630mm~1750mm |
|
Rotary around the center of cross arm |
±180º |
|
|
Rotary around the shaft line of X-ray annular tubes |
-10º~60º~+120º |
|
|
Max size of cassette for radiography |
356mm×432mm(14"×17") |
|
3. X-ray Accessories:
x-ray film cassette: 8'' * 10'', 10'' * 12'', 12'' * 15''
high speed intensifying screen(blue sensitive):8'' * 10'', 10'' * 12'', 12'' * 15''
x-ray film hanger(stainless steel):8'' * 10'', 10'' * 12'', 12'' * 15''
Kodak x-ray film(blue sensitive):8'' * 10'', 10'' * 12'', 12'' * 15''
x-ray darkroom light: single color;
x-ray film developing tank: 3 gallon;
Lead apron
Lead cap
Fix powder&developer powder
