SF300BZ 300mA Medical X-Ray Machine

Name: SF300BZ 300mA Medical X-Ray Machine
Brand: RIXI Medical
SKU: 161014533
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

RIXI Medical

Place of Origin:

China

Model Number:

SF300BZ

Shanghai RIXI Medical Equipment CO.,LTD.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name RIXI Medical

Place of Origin China

Model Number SF300BZ

Properties Medical X-ray Equipments & Accessories

USE General radiography、X-Ray-filter radiography

Main Features

● Single bed with single bulb

● Rotary anode X-ray tube assembly and tangential type tube sleeve

● Single-phase full wave rectification high-voltage generator

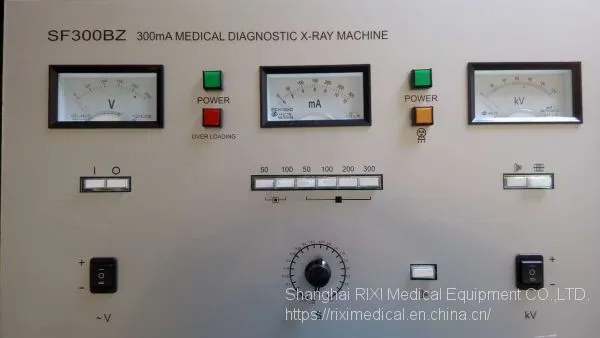

● Power voltage (V), radiograph kilovolt(kv), infinitely variable control

● Filament manostat for x-ray tube and space charge compensator

● Radiograph capacity kV, mA and S interlocking protect

● Adopt digital circuit timer, grading as to R10 priority coefficient., exact time control

● Premier high voltage with high power SCR zero control circuit

● Photograph bed, column, vibration filter limiter integrated equipment without necessary of

up-and-down tunnel

Technical Data

Demand of Power Supply	Capacity: not less than 30kVA
	Single-phase & three-phase are both available. Voltage, frequency: 380V/220V ± 10% 50Hz ± 0.5Hz
	Internal resistance	380V: 0.75Ω, 220V: 0.25Ω
Power Supply	Adjust range: 380V±10% at 380V; 220V±10% at 220V continuously adjustable
Radiography	Voltage: 50-125KV continuously adjustable
	Current: small focus: 50mA, 100mA big focus: 50mA,100mA, 200mA, 300mA
	Time: 0.04-6.3s
High Voltage Generator	Capacity	20kVA ( instantaneous )
	Max DC output voltage	125KV
	Max DC output current	300mA
X-ray tube	Model: XD51.20-40/125
	Focus: small focus: 11mm; big focus: 22mm
Radiographic table	L * W * H		2000mm * 710mm * 700mm
	Moving range of bed surface		longitudinal: 620mm transverse: 200mm
	Ray-filter of bed		Longitudinal travel: ≥ 500mm
			Grid density: N-28; Grid ratio: r8
			Convergence distance: 1m
X-ray tube assembly	Moving longitudinally along radiographic table: 1800m m or 1600mm
	Moving up and down (along the pillar): 630mm - 1750mm
	Rotary around the center of cross arm: ±180°
	Rotary around the shaft line of x-ray annular tube:-10º~60º~+120º
Max size of cassette for radiography		356mm * 432mm (14’’ * 17’’)
Optional: x-ray chest stand, other x-ray darkroom accessories
