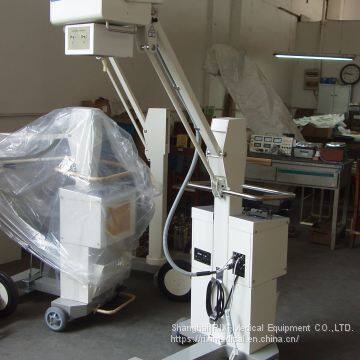

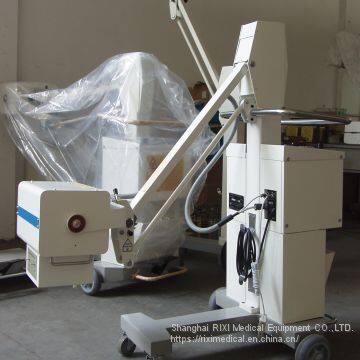

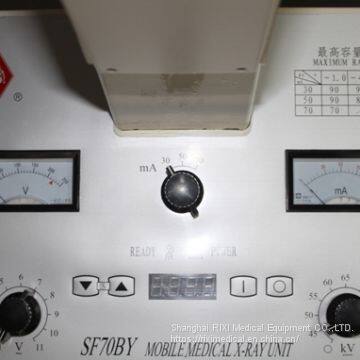

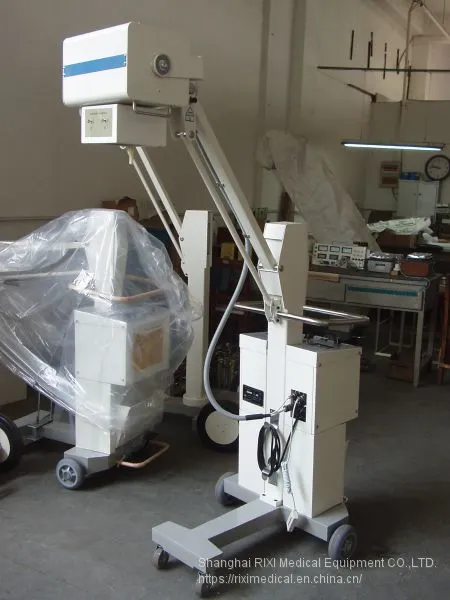

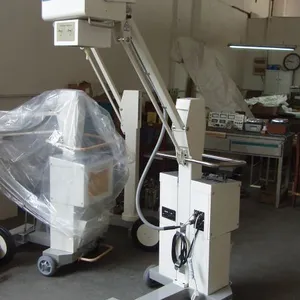

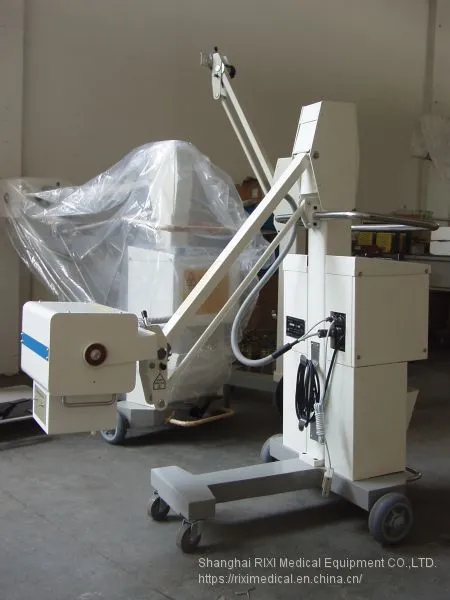

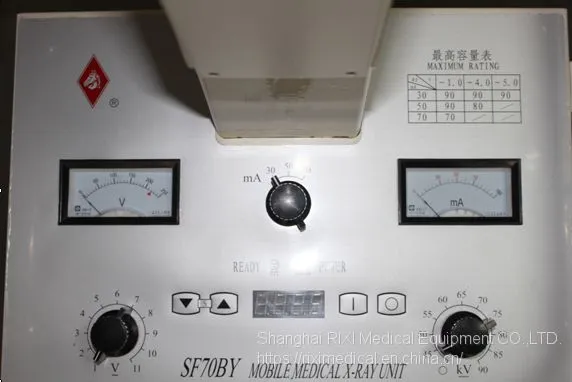

70mA SF70BY Medical X-ray for Animal

70mA SF70BY Medical X-ray for Animal thumbnail-1
70mA SF70BY Medical X-ray for Animal thumbnail-2
70mA SF70BY Medical X-ray for Animal thumbnail-3
70mA SF70BY Medical X-ray for Animal thumbnail-4
70mA SF70BY Medical X-ray for Animal photo-1
70mA SF70BY Medical X-ray for Animal photo-2
70mA SF70BY Medical X-ray for Animal photo-3
70mA SF70BY Medical X-ray for Animal photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
RIXI Medical
Place of Origin:
China
Model Number:
SF70BY
Contact Supplier Request Quote Chat Now
Shanghai RIXI Medical Equipment CO.,LTD.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name RIXI Medical
Place of Origin China
Model Number SF70BY

70mA  medical x-ray for Animal and human SF70BY



1. Main purpose and features:

1. Fullwave rectification and modular X-ray tube head.
2. Cantilever construction, Compact in design, easy of movement.
3. Be used for Radiography in hospital wards or operating rooms.

2. Main Technical Data /Maximum ratings:
kV      S

mA

0.06-1.0

1.2-2.5

3.2-6.3
30
90
90
90
50
90
80
/
70
70
/
/

1.Power requirements
  Voltage:180-240V  Frequency:50Hz
  Internal resistance: ≤1ΩRating:5k VA
  Current:Maximum15A for radiography

2.Time:0.08 to 6.32 steps electronic

3.Maximum height from X-ray tube focus to floor>1820mm

4.Minimum height from X-ray tube focus to floor

5.Collimator:Maximum film size at 1000mm
Focal distance: 430×430mm

6.Maximum remote control distance:6m

7.X-ray tube focus:2.6*2.6

8.Unit moving force:

9.Net weight of the unit:90kg



Other Models:

50mA mobile x ray; 100mA mobile x ray

100mA stationary x ray; 200mA stationary x ray (have stock); 300mA stationary x ray
