700W Series Sealed Portable Charger
- Shanghai
- T/T L/C PayPal Other
- 10 days
You May Like
Product Details
| Brand Name | Pengtu | Place of Origin | China | |
| Model Number | PTDS4805 | Output Power | 700W | |
| Output Current | 5A | Output Frequency | 100-200KHZ | |
| Output Voltage | 48V | Input Voltage | 220V |
Product Description
Product introduction and application areas
The 700W Series Sealed Portable Battery charger are designed with aluminum profile structure.They are suitable for liquid-rich lead-acid batteries,sealed(colloidal)lead-acid batteries,lithium batteries,nickel-metal hydride batteries,nickel-cadmium batteries,etc.They can be used to cycling charge and floating charge the battery in electric car,electric motorcycle,sightseeing car,patrol car,forklift,communication,electric power,ship,etc.
Technical parameters
. Ac input voltage range: 200-240VAC;45-65HZ
. AC max input current:3.6A 220VAC
. Max Efficiency: 90% (Full Load)
. Noise: ≤65dB
.Working temperature:-30℃~＋55℃
.Storage temperature:-40℃~＋95℃
Product specifications
.Dimensions:193*93*64mm
. Net weight: 1.2kg
Multiple protection
.Output over current protection .Output reverse connection protection
.Output over voltage protection .Over temperature protection
.Output short circuit protection .Fully charge automatic shutdown
.Output no-load protection

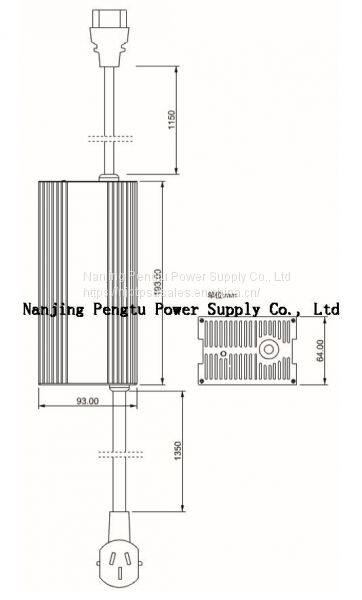

Mechanical Size&Model selection
Item | Battery Rated Voltage | Max Output Voltage | Max output current |
PTDS4805 | 48V | 68V | 5A |
PTDS4810 | 48V | 68V | 10A |
PTDS6005 | 60V | 85V | 5A |
PTDS6010 | 60V | 85V | 10A |
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptpowersales@163.com.
