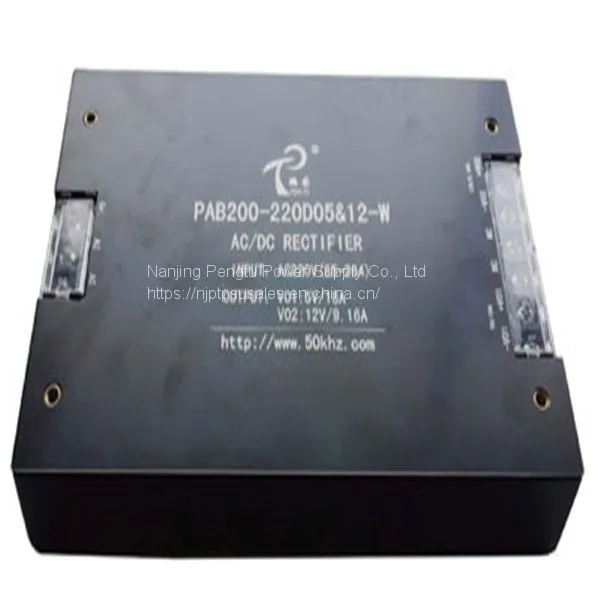

PAB-W Series 200-300W Power Supply

PAB-W Series 200-300W Power Supply.Product details are as follows:

※Features

●Wide range of input voltage

●Broadband noise filter of input

●Surge suppress circuit of input

●Comply with UL 1950, IEC950 safety regulation

●Attractive outline design

●Terminal connection method

●Fast dynamic response

Conditions:All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.

※Input Characteristic

Voltage range

220VAC (Normal Rated Value): 100～2240VAC  176～264 VAC

※Output Characteristic

●Voltage set-point accuracy ……±2%

●Line Regulation (Main) ……±0.5%

●Load regulation (Main) ……±0.5%

●Output Current Limited ……120%(Type)

●Output current ………3-60A for optional

●Output voltage ………5-48V

●Power …………200-300W

※General Characteristic

●Switching frequency ………100-200 KHz

●Isolation resistance ………200 MΩ

※Isolation voltage

●Input-output: >1500 VAC/MIN (Leakage current＜5mA)

●Input-case: >1500 VAC/MIN (Leakage current＜5mA)

●Output-case: >500 VDC/MIN

●Main-Vice:  >500 VDC/MIN

※Environmental Characteristic

●Case Temperature ………………………Industry: -25-+85℃
                   Military I: -40-+85℃

                   Military II: -55-+85℃

●Storage temperature ……………………Industry: -45+105℃

                       Military: -55-+105℃

※Protection Features

●Input under voltage protection         ●Output over current protection

●Output short circuit protection        ●Over temperature protection

※Model selection

Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptpowersales@163.com.

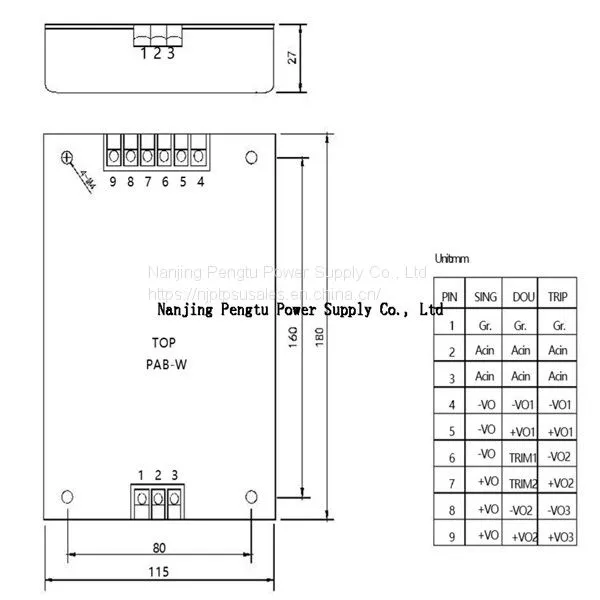

※Mechanical Drawing & Pin definition
