2.5KW Series Isolated DC DC Converter Charger.Product introduction and application areas
This series products are adopted the modular design,widely used for lights,wipers,horns and dc air conditioners in electric bus,City trolleybus,tramcar,subways and BTS,100%electric car and hybrid electric car.It can be matched with fan cooling and water cooling.
Technical parameters
.Input voltage range:200-450VDC/200-750VDC(for option)
.Rated Output voltage:14VDC/27VDC(for option)
.Max Efficiency:94%(Full Load)
.Noise:≤55dB
.Working temperature:-30°C~＋55°C
.Storage temperature:-40°C~＋95°C
.Communication:CAN(for option)
Product specifications
.Dimensions:276*158*16mm
.Net weight:2kg
Multiple protection
.Output overcurrent protection .Input overvoltage protection
.Output overvoltage protection .Input undervoltage protection
.Output short circuit protection .Over temperature protection
.Output reverse connection protection .CAN communication for option

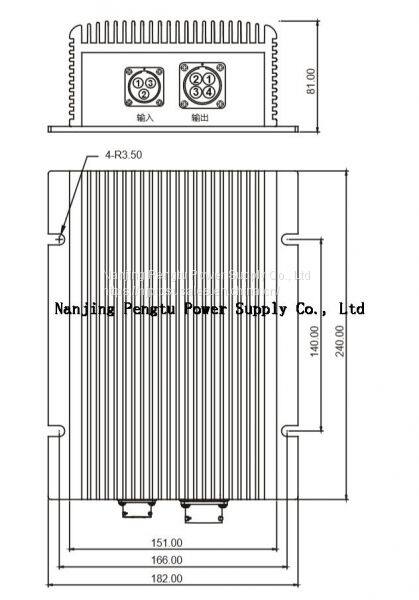

Mechanical Size&Model selection
Item |
Input voltage range (Vdc) |
Output Voltage (Vdc) |
Output current (A) |
PD2K5E14YK178 |
200-450 |
14 |
178 |
PD2K5E27YK92 |
200-450 |
27 |
92 |
PD2K5G14YK178 |
200-750 |
14 |
178 |
PD2K5G27YK92 |
200-750 |
27 |
92 |
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptpowersales@163.com.
