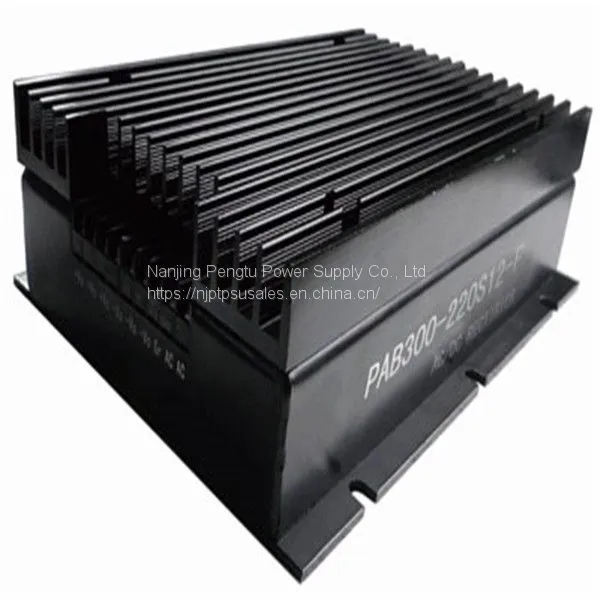

PAB-F5 Series 300-600W AC DC Converter 220vac.Product details are as follows:
※Features
●Wide range of input voltage
●Broadband noise filter of input
●Surge suppress circuit of input
●Comply with UL 1950, IEC950 safety regulation
●Attractive outline design
●Terminal connection method
●Fast dynamic response
Conditions:All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.
※Input Characteristic
Voltage range
220VAC (Normal Rated Value):176～264 VAC
※Output Characteristic
●Voltage set-point accuracy ……±2%
●Line Regulation (Main) ……±0.5%
●Load regulation (Main) ……±0.5%
●Output Current Limited ……120%(Type)
●Output current ………3-30A for optional
●Output voltage ………12-48V
●Power …………300-600W
※General Characteristic
●Switching frequency ………100-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VAC/MIN (Leakage current＜5mA)
●Input-case: >1500 VAC/MIN (Leakage current＜5mA)
●Output-case: >500 VDC/MIN
※Environmental Characteristic
●Case Temperature ………………………Industry: -25-+85℃
Military I: -40-+85℃
Military II: -55-+85℃
●Storage temperature ……………………Industry: -45+105℃
Military: -55-+105℃
※Protection Features
●Input under voltage protection ●Output over current protection
●Output short circuit protection ●Over temperature protection
※Model selection
Input V. (Vac) |
Input V. range (vac) |
Output V.(V) |
Output Curr. (A) |
Ripple &noise pk-pk (mv) |
Efficiency (Typ) |
Models |
|
SING |
220 |
176-264 |
12 |
25 |
120 |
83% |
PAB300-220S12-F5 |
220 |
176-264 |
15 |
30 |
150 |
83% |
PAB450-220S15-F5 |
|
220 |
176-264 |
24 |
20.8 |
200 |
84% |
PAB500-220S24-F5 |
|
220 |
176-264 |
28 |
17.8 |
280 |
84% |
PAB500-220S28-F5 |
|
DUAL |
220 |
176-264 |
05&28 |
10&10 |
100&280 |
82% |
PAB300-220D05&28-F5 |
220 |
176-264 |
05&19 |
10&12 |
100&190 |
82% |
PAB300-220D05&19-F5 |
|
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptpowersales@163.com.

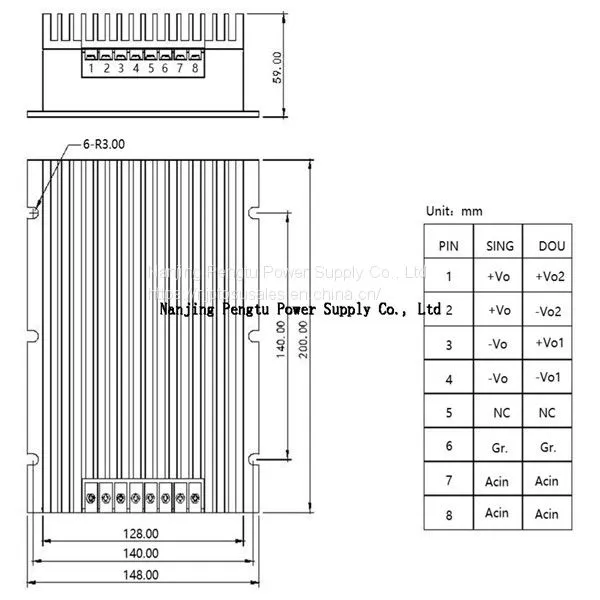

※Mechanical Drawing & Pin definition
