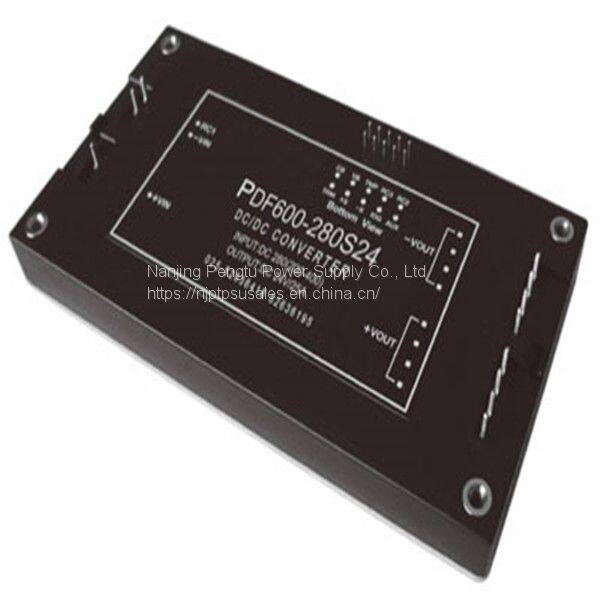

PDF Series 300-500W Full brick power supply.Product details are as follows:
※Features
●Wide range of input voltage
●Design for high reliability,long lifetime
●Under-voltage protection for input
●Full load efficiency up to 88%
●High voltage input,high output power
●Wide range of power,easy toupgrade
Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.
※Input Characteristic
Voltage Range
24VDC (Normal Rated Value): 18～36 VDC
48VDC (Normal Rated Value): 36～72 VDC
110VDC (Normal Rated Value): 66～154 VDC
300VDC (Normal Rated Value):200-400 VDC
※Output Characteristic
●Voltage set-point accuracy ……±2%
●Line Regulation (full load) ……±0.5%
●Load regulation (20%-100%load) ……±0.5%
※General Characteristic
●Switching frequency ………200-350 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VDC
●Input-case: >1050 VDC
●Output-case: >500 VDC
※Environmental Characteristic
●Substrate Working Temperature ………Industry: -40-+100℃
●Storage temperature ……………………Industry: -45-+105℃
※REM Features
Positive Logic:High level or no connect working
※Dimensions:116.80*61*12.70mm
※Protection Features
●Input under voltage protection ●Output short circuit protection
●Input over voltage protection ●Output over current protection
●Output over voltage protection ●Over temperature protection
※Model selection
Input Voltage (V) |
Input Voltage Range (V) |
Output Voltage (V) |
Output Current (A) |
Ripple pk-pk (mv) |
Efficieency (Typ) |
Models |
|
Single |
24 |
18-36 |
24 |
20.8 |
200 |
88% |
PDF500-24S24 |
48 |
36-72 |
24 |
20.8 |
200 |
89% |
PDF500-48S24 |
|
110 |
66-154 |
24 |
20.8 |
200 |
89% |
PDF500-110S24 |
|
300 |
200-400 |
12 |
33.3 |
120 |
88% |
PDF400-300S12 |
|
300 |
200-400 |
24 |
20.8 |
200 |
88% |
PDF500-300S24 |
|
300 |
200-400 |
28 |
17.8 |
280 |
88% |
PDF500-300S28 |
|
300 |
200-400 |
48 |
10.4 |
300 |
89% |
PDF500-300S48 |
|
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptpowersales@163.com.

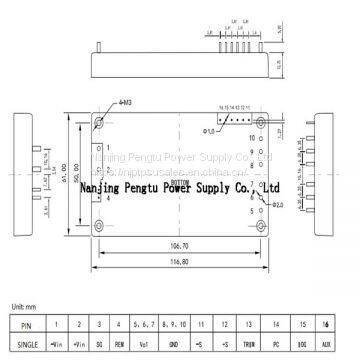

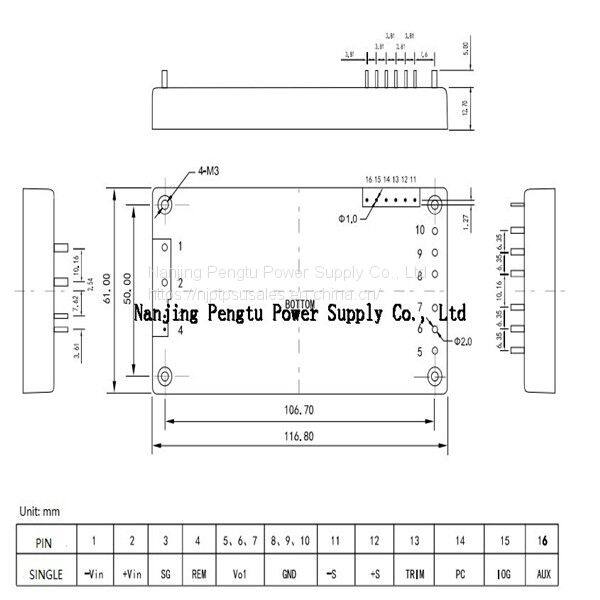

※Mechanical Drawing & Pin definition
