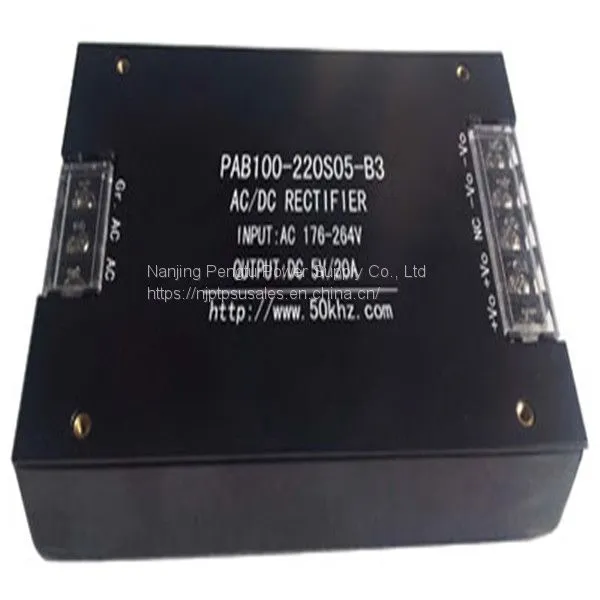

PAB-B3 Series 50-150W AC DC Converter
- 5000 Piece / Pieces per Month
- Shanghaio
- T/T L/C PayPal Other
- 12 days
Product Details
Brand Name: | Pengtu | Place of Origin: | China | Model Number: | PAB100-220S05-B3 |
Output Power: | 50-150 | Output Current: | 20A | Output Frequency: | 100-200KHZ |
Output Voltage: | 5V | Input Voltage: | 176-264V |
Product Description
PAB-B3 Series 50-150W AC DC Converter.Product details are as follows:
※Features
●Wide range of input voltage
●Broadband noise filter of input
●Surge suppress circuit of input
●Comply with UL 1950, IEC950 safety regulation
●Attractive outline design
●Terminal connection method
●Fast dynamic response
Conditions:All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.
※Input Characteristic
Voltage range
220VAC (Normal Rated Value): 176~264 VAC
※Output Characteristic
●Voltage set-point accuracy ……±2%
●Line Regulation (Main) ……±0.5%
●Load regulation (Main) ……±0.5%
●Cross regulation …………±3%
●Output Current Limited ……120%(Type)
●Output current ………3-20A for optional
●Output voltage ………5-48V
●Power …………50-150W
※General Characteristic
●Switching frequency ………100-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VAC/MIN (Leakage current<5mA)
●Input-case: >1500 VAC/MIN (Leakage current<5mA)
●Output-case: >500 VDC/MIN
●Main-Vice: >500 VDC/MIN
※Environmental Characteristic
●Case Temperature ………………………Industry: -25-+85℃
Military I: -40-+85℃
Military II: -55-+85℃
●Storage temperature ……………………Industry: -45-+105℃
Military: -55-+105℃
※Protection Features
●Input under voltage protection ●Output over current protection
●Output short circuit protection ●Over temperature protection
※Model selection
Input V. (Vac) | Input V. range (vac) | Output V.(V) | Output Curr. (A) | Ripple &noise pk-pk (mv) | Efficiency (Typ) | Models | |
SING | 220 | 176-264 | 05 | 20 | 80 | 83% | PAB100-220S05-B3 |
220 | 176-264 | 12 | 10.4 | 120 | 84% | PAB125-220S12-B3 | |
220 | 176-264 | 24 | 6.25 | 200 | 85% | PAB150-220S24-B3 | |
220 | 176-264 | 28 | 5.36 | 280 | 85% | PAB150-220S28-B3 | |
220 | 176-264 | 48 | 3.1 | 300 | 85% | PAB150-220S48-B3 | |
DUAL | 220 | 176-264 | 05&12 | 10&4 | 100&120 | 83% | PAB100-220D05&12-B3 |
220 | 176-264 | 05&24 | 4&4 | 80&200 | 83% | PAB120-220D05&24-B3 | |
220 | 176-264 | 12&24 | 6&3.25 | 120&200 | 84% | PAB150-220D12&24-B3 | |
220 | 176-264 | 05&28 | 2&5 | 50&280 | 83% | PAB120-220D05&28-B3 |
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptpowersales@163.com.

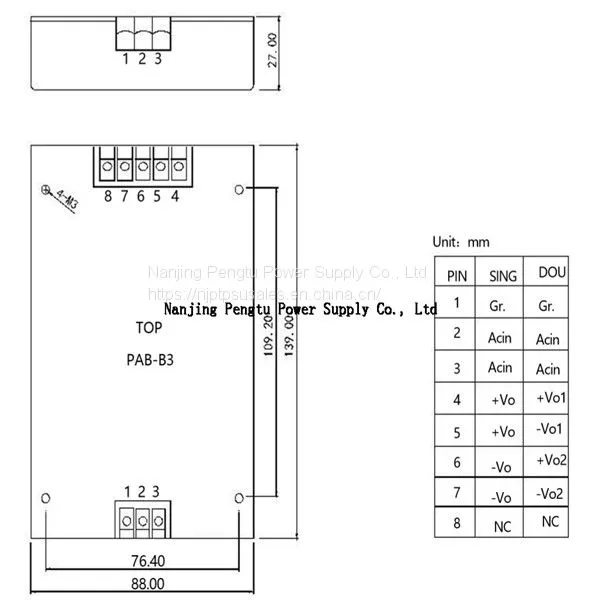

※Mechanical Drawing & Pin definition
