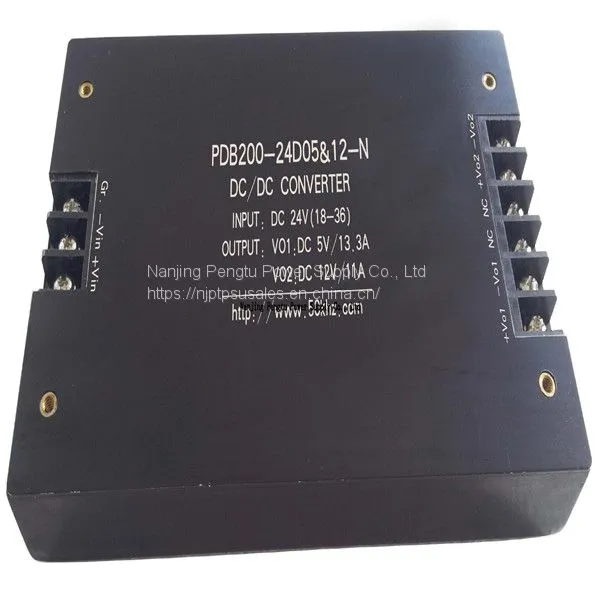

PDB-N Series 100-350W DC DC Power Supply.Product details are as follows:
※Features
●Π type input filter
●2X voltage input
●Output short circuit protection
●Easy installation
●Best case attaching mode
●Design for high reliability, long lifetime
Conditions:All specifications are tested under the room temperature 25℃, normal input voltage and pure negative normal load.
※Input Characteristic
Voltage Range
12VDC (Normal Rated Value): 9～18 VDC
24VDC (Normal Rated Value): 18～36 VDC
48VDC (Normal Rated Value): 36～72 VDC
110VDC (Normal Rated Value):66-154 VDC
600VDC (Normal Rated Value):400～800VDC
※Output Characteristic
●Voltage set-point accuracy ……±2%
●Line Regulation (main) ……±0.5%
●Load regulation (main) ……±0.5%
●Output Current Limiting ………………120%(Tye)
●Output Current ………………………………5～40A for option
●Output Voltage ………………………………5～48V
●Power ……………………………………………100-350w
※General Characteristic
●Switching frequency ………100-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VDC
●Input-case: >1050 VDC
●Output-case: >500 VDC
※Environmental Characteristic
●Substrate Working Temperature ………Industry: -25-+85℃
MilitaryⅠ:-40-+85℃
MilitaryⅡ:-55-+85℃
●Storage temperature ……………………Industry: -45-+105℃
Military:-55-+105℃
※Dimensions:159*98*27mm
※Protection Features
●Input under voltage protection
●Output short circuit protection
●Input over voltage protection
●Output over current protection
●Over temperature protection
※Model selection
Input V. (Vdc) |
Input V. range (vdc) |
Output V.(V) |
Output Curr.(A) |
Ripple (mv) |
Efficieency (Typ) |
Models |
||
SING |
24 |
18-36 |
24 |
14.58 |
200 |
89% |
PDB350-24S24-N |
|
48 |
36-72 |
24 |
14.58 |
200 |
89% |
PDB350-48S24-N |
||
110 |
66-154 |
12 |
25 |
120 |
88% |
PDB300-110S12-N |
||
110 |
66-154 |
24 |
12.5 |
200 |
89% |
PDB300-110S24-N |
||
600 |
400-800 |
24 |
12.5 |
200 |
89% |
PDB300-600S24-N |
||
Dual |
24 |
18-36 |
05&12 |
10&10 |
80&120 |
84% |
PDB170-24D05&12-N |
|
24 |
18-36 |
05&24 |
10&5 |
100&200 |
84% |
PDB170-24D05&24-N |
||
24 |
18-36 |
12&24 |
8&4 |
120&200 |
85% |
PDB200-24D12&24-N |
||
Triple |
24 |
18-36 |
05&12&24 |
6&8&4 |
80&120&200 |
84% |
PDB230-24T05&12&24-N |
|
48 |
36-72 |
05&12&24 |
6&8&4 |
80&120&200 |
84% |
PDB230-48T05&12&24-N |
||
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptpowersales@163.com.

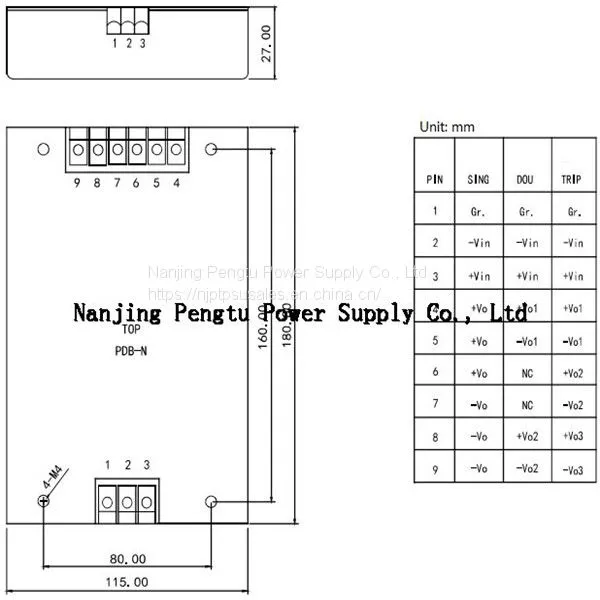

※Mechanical Drawing & Pin definition
