Aluminium Window Door Curtain Wall CNC Control 3 Axis Double Head Any Angle Cutting Saw/aluminium Profile Cutting Machine
US$ 10,000 - 50,000
/ Set
1 Set(Min. Order)
- Qingdao Port
- T/T Credit Card
You May Like
-
Aluminum Vertical Composite Panel Saw Machine
-
3 Axis Aluminum Profile Hole Drilling and Milling Machine Center on Hot Sale
-
Parker Knurling Machine for Aluminum Thermal Break Profile Making
-
1.5KW Power Aluminum Door Window High Speed Corner Crimping Machine Price
-
Aluminum Window Door Copy Router
-
Aluminum Milling Processing Machine
Product Details
| Brand Name | PARKER |
Product Description

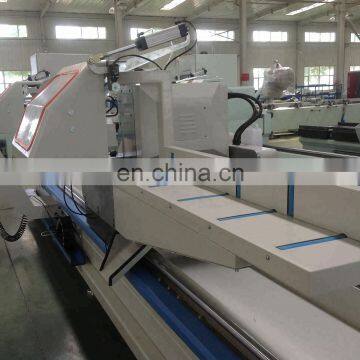

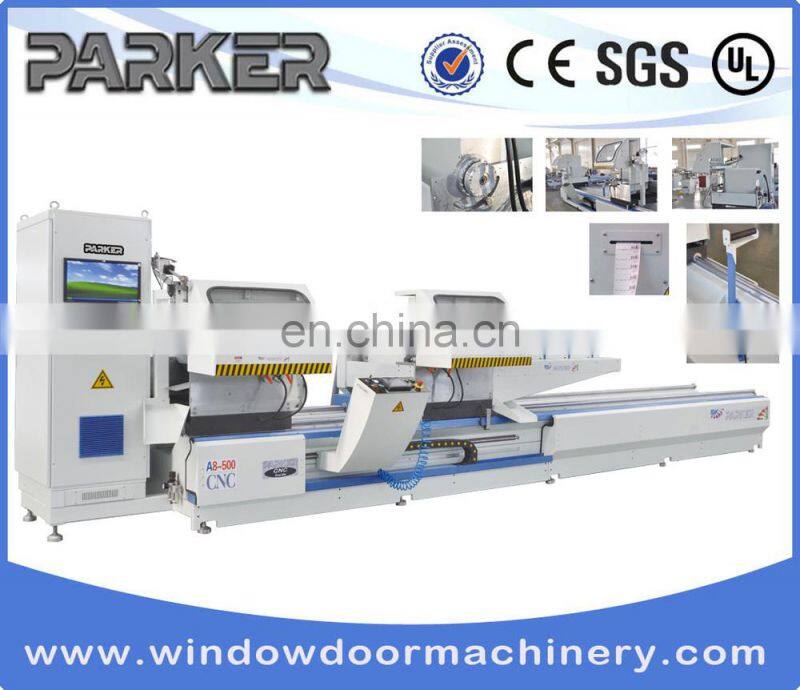

Aluminium window door curtain wall CNC control 3 axis double head any angle cutting saw/aluminium profile cutting machine
Model: A8-500
Features:
- ØThe machine is the most advanced double-head cutting saw.
- ØThe control system adopts the new closed-loop system, and can ensure the accuracy of repeat length.
- ØThe PLC, servo motor, servo driver and touch screen we use the brand Schneider imported from France.
- ØAll the electric spare parts using Schneider imported for France.
- ØThis machine can automatically feed the profiles. Can input the cutting data one time. Automatic continuously different cutting size are available.
- ØThe imported blade (Wemaro imported from Germany) with high precision makes the cutting surface smoothly.
- ØThe servomotor drives the speed reducer to adjust the cutting angle in 45°-157.5°. The imported service motor with high moving speed and high precision should drive the sawing head.
- ØThe imported control system can ensure the cutting quality.

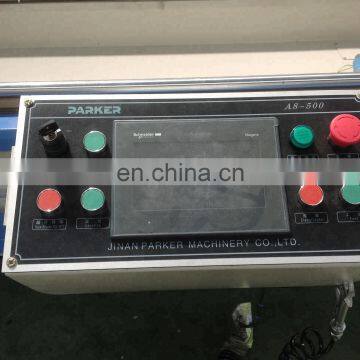

- ØTouch screen and computer make the machine very easy to operate.
- ØThe machine has label printing function (option).
Parameter:
| 380V 50HZ |
| 6.8KW |
| 0.5-0.8MPa |
| Φ500xΦ30x4.4 Z=120 (standard size) |
| 0-2m/min |
| Max5000mm Min480 at 90° Max5000mm Min(double height of profile) at 45° |
| 120mm |
| 230mm |
| 45°-157.5° |
| ±0.2mm |
| ±4´ |
| 7000*1700*2000mm |
| 2200KG |
