Product Details
Brand Name: | PARKER |
Product Description

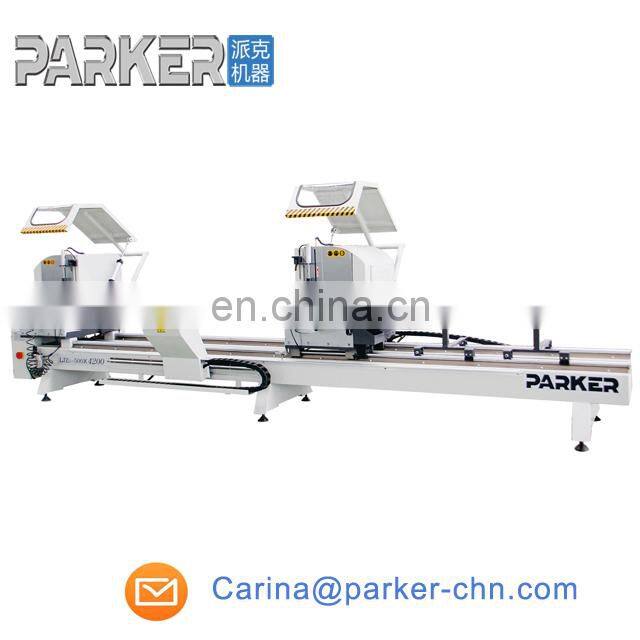

Aluminium Profile Window Door Digital Display Double Mitre Saw Cutting Machine
aluminium profile cutting machine/aluminium saw cutting machines /aluminum double head mitre saw-PARKER
LJZ2S-500x4200
Feature:
♦ LJZ2S-500X4200 is used for cutting of alu-alloy and wall profile. The imported special hard-metal saw features the high precision and efficiency for cutting alu-alloy doors and windows. And the cutting precision has reached the advanced level in the world.
♦ The hi-precision main shaft makes the saw stable and the surface smooth. The gas-liquid damping cylinder realizes smooth feeding and steady moving. The automatically opening and closing protecting cover makes the operation safe and easy.
♦ The moving heads adopt imported linear bearing motion pair, and they features high precision. The moving feeder can efficiently locate the profile, and making the clamping easy and reliable. With the large saws and long structures, the saw has large cutting range.
♦ If CNC system is put in, it can make the cutting much more precise (precision 0.01mm), and the operating more visualized.
Parameter:
♦ Voltage: | 380V 50HZ |
♦ Power: | 4.4KW |
♦ Air pressure: | 0.5-0.8MPa |
♦ Air consumption: | 200L/min |
♦ Blade specification: | Φ500XΦ30X4.4 Z=120 |
♦ Cutter moving speed: | 0-2m/min |
♦ Cutting length: | Max4000mm Min200mm |
♦ Cutting width: | Max.135mm |
♦ Cutting height: | Max.300mm |
♦ Cutting angle: | 45° 90° |
♦ Repeat locating length error: | ±0.2mm |
♦ Angle error | ±4′ |
♦ Surface plainness: | ±0.1mm |
♦ Surface harshness: | Ra12.5μm |
♦ Overall dimension: | 5500mmX1750mmX1990mm |
PARKER PLANT
PARKER SHOW
SHOWROOM
Q: How can I get the best machine for our business?
A: Just let us know your cutting material, size, thickness, and working area needed, we will suggest the most suitable machine and professional solution.
Q: When can we arrange shipment?
We usually arrange shipment in 15 days after getting deposit, but customized machines should be more than 25 days.
Q: This is my first time using this kind of machine, is it easy to operate?
A: Of course the machine is easy to operare. We will send you the English version user manual and install video which shows how to assamble and use the machine clearly, almost all the customers can operate the machine easily. No need to worry about this, after all, Parker will always be here to help!
Q: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual. But in case you have any problem, our professional after-service team will provide you any support you need any time!
B.We can send you free components to you if your machines are in guarantee time.
C.We can send our engineers to repair your machines.
Q: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirments, we reserched many other different machines.
