Aluminum Window Profile CNC Cutting Machine CNC Double Mitre Saw Cutting Machine
- Qingdao Port China
- T/T Credit Card
You May Like
-
Aluminum Window Machine/Corner Connector Cutting Machine/Aluminum Window Corner Key Cutting Saw
-
Double Mitre Saw Aluminium Saw Cutting Machines-aluminum Double Head Mitre Saw/aluminium Profile Cutting Machine-PARKER
-
Aluminum Window Machine CNC Aluminum Profile Cutting Center
-
Parker Machine A8-500 for Aluminum Profile Cutting Saw With CNC
-
Automatic CNC Double Head Cutting Saw For Aluminum
-
Aluminum Sliding Window Roller Bearing Cutter Saw With CNC Parker Machine A8-500 for Aluminum Profile
Product Details
| Brand Name | PARKER | Place of Origin | Shandong, China | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

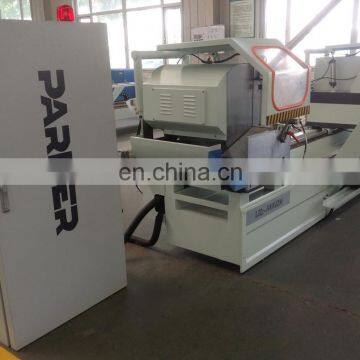

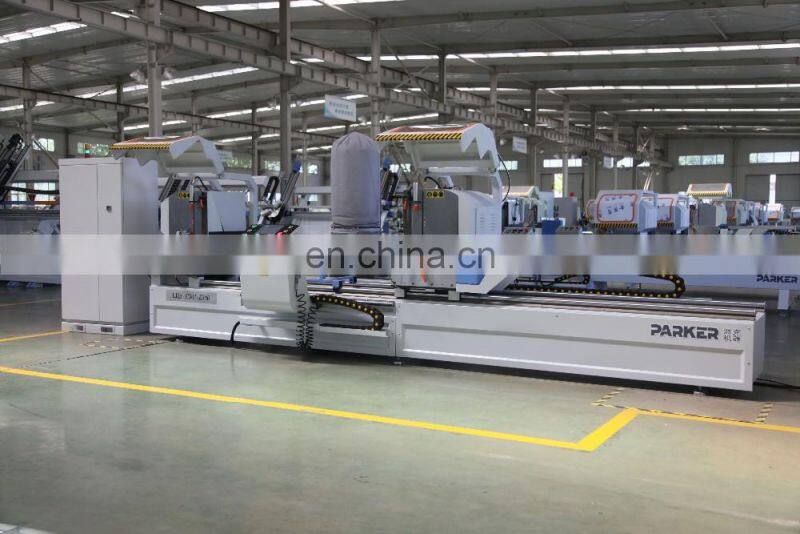

Aluminum Window Profile Saw Cutting Machine
Features

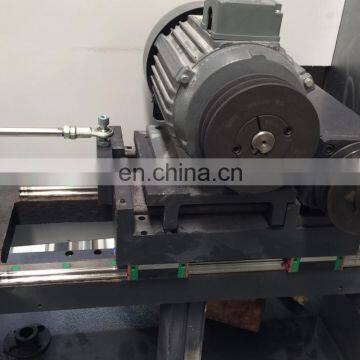

1. Its feeding system adopts imported linear guide pair with high accuracy and long service life.
2. This double head mitre saw adopts imported carbide saw blade which ensures accurate processing and high endurance.
3. Special designed air-controlled angle converting device replaces the magnetic valve control. Magnetic valve problem is eliminated.
4. Due to air-hydraulic damping cylinder, CNC double mitre saw achieves uniform sped feeding and smooth motion.
5. This double head mitre saw is installed with automatic opening guard shield ensuring safety operation.
6. Special designed angle locating device ensures cutting angle's stability.
7. Parker CNC double mitre saw can realize continuous cutting with different lengths.

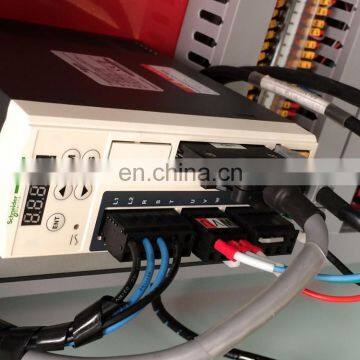

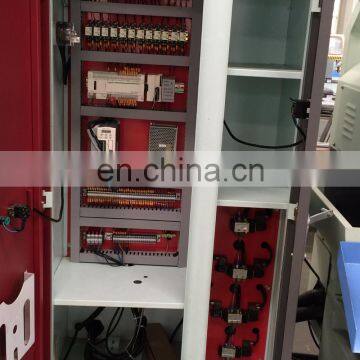

8. This CNC machine is equipped with Schneider and Omron component.
Parameter:
Model | LJZ2-CNC-G500×4200 |
Type | CNC Cutting Machine |
Voltage | 380V 50 Hz |
Power | 4.4 kW |
Air Pressure | 0.5 to 0.8 MPa |
Air Consumption | 200 L/min |
Blade Specification | Φ500 × Φ30 × 4.4 Z = 120 (Standard Size) |
Cutter Moving Speed | 0 to 2 m/min |
Cutting Length | Max. 4200 mm Min. 400 mm |
Cutting Width | Max.135 mm |
Cutting Height | Max. 300 mm |
Cutting Angle | 45° 67.5° 90° |
Repeat Locating Length Error | ± 0.2 mm |
Angle Error | ± 4′ |
Surface Plainness | ± 0.1 mm |
Surface Harshness | Ra12.5μm |
Overall Dimension | 5500 mm × 1750 mm × 1990 mm |
PARKER IS DEVELOPING WITH THE WORLD.

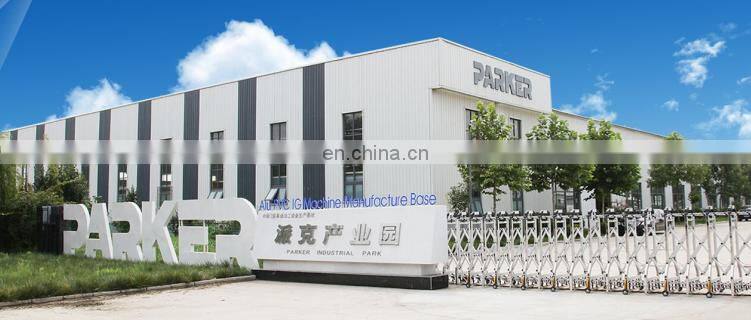

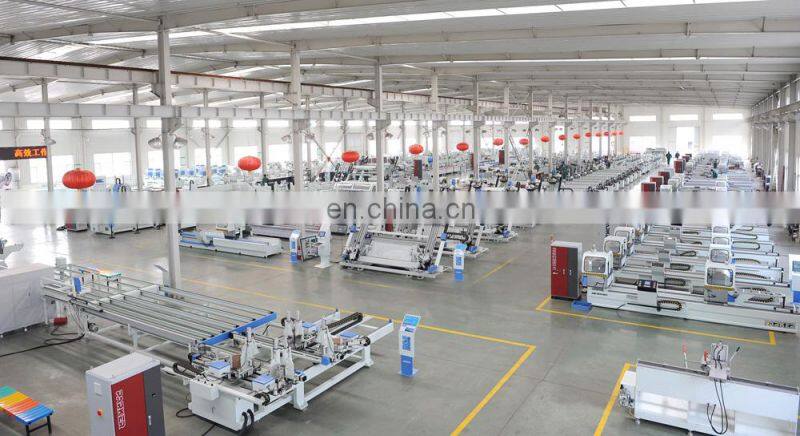

Parker was founded in 2003, since the entry into the window door curtain wall machinery manufacturing field, peck with the best team and most stringent manufacturing standards, has been committed to the global supply of machinery and the best service. Today, with more than 300 employees, Parker Industrial Park covers an area of 70000 square meter, Parker has become Chinese and even the world's window door curtain wall and insulating glass high-end machinery manufacturing base.
