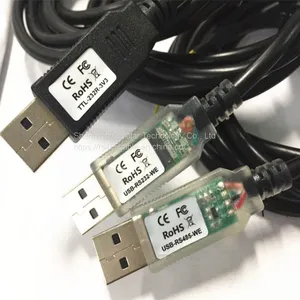

USB-RS485-WE-1800-BT USB TO RS485 CABLE, 1.8M BLACK CABLE, WIRE END

USB RS485 A male to open cable with FTDI chip Usb-rs485-we-1800-bt Usb to Rs485 Converter cable

 USB RS485 Cables

Range of USB to RS485 based converters.

USB-RS485 Converter Cables

           The USB-RS485 cable is a USB to RS485 levels serial UART converter cable incorporating FTDI’s FT232RQ USB to serial UART interface IC device which handles all the USB signalling and protocols. The cable provides a fast, simple way to connect devices with a RS485 interface to USB.

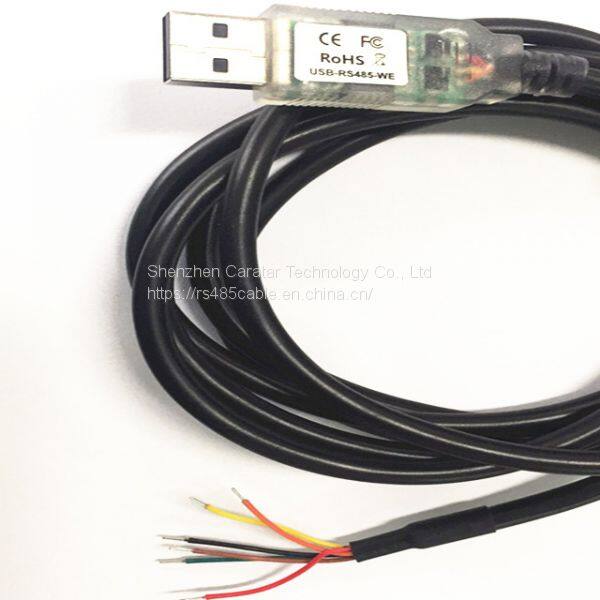

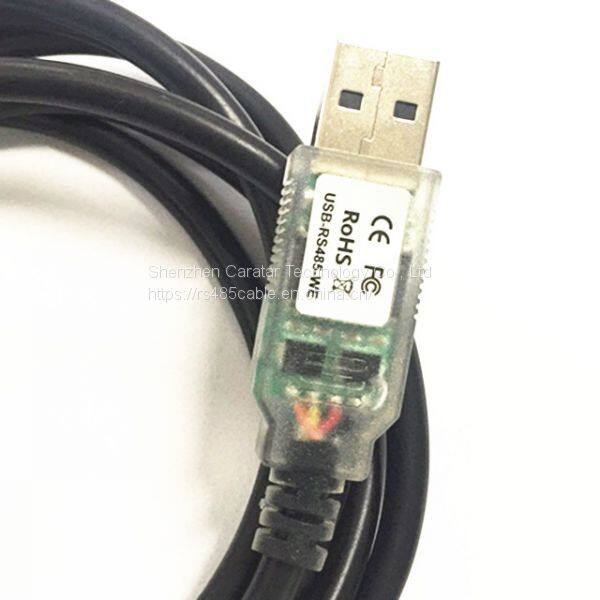

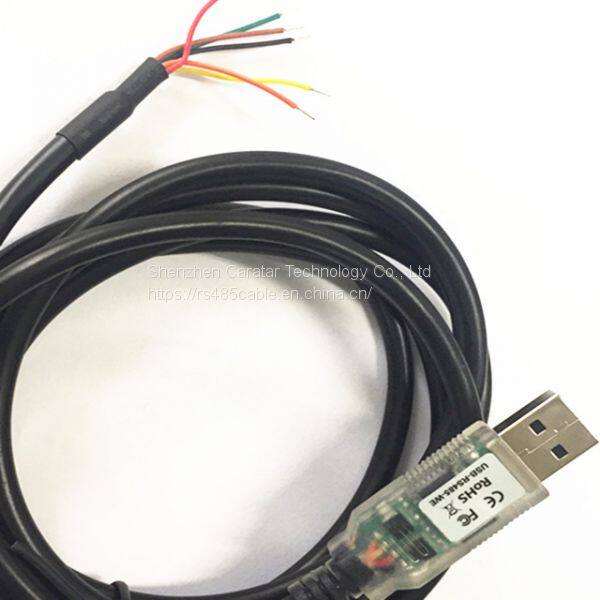

Each USB-RS485 cable contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB connector end of the cable. The integrated electronics also include the RS485 transceiver plus Tx and Rx LEDs which give a visual indication of traffic on the cable (if transparent USB connector specified). The other end of the cable is bare, tinned wire ended connections by default, but can be customised using different connectors to support various applications.

Cables are FCC, CE, RoHS compliant.

 The USB-RS485 cables are USB to RS485 levels serial converters. The cables include FTDI’s FT232RQ USB to serial UART interface IC device, which handles all the USB signalling, and protocols, plus an appropriate transceiver. The cable provides a fast, simple method to connect equipment with an RS485 interface to USB.

Features:
• Entire USB protocol handled by the electronics in the cable.
• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
• TIA-485 and V.28/V.24 communication interface with low power requirements.
• Internal EEPROM with user writeable area.
• Data transfer rates from 300 baud to 3 Mbaud.
• Visual indication of Tx and Rx traffic via LEDs in the transparent USB connector.
• Extended temperature range (-40°C to +85°C).
• Electronics available as separate PCB.

Detailed Images

 6Ft USB Type C to RJ45 Console Cable for MacBook Usb To Serial Rs232 Cable Driver

FTDI Driver: /FTDrivers.htm

The cable provides a fast, simple way to connect devices with a RS485 interface to USB and in addition, it is USB powered and USB 2.0 full speed compatible and supports a data transfer rate up to 3 Mbaud.

• Entire USB protocol handled by the electronics in the cable.

• EIA/TIA-485 communication interface with low power requirements.

• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.

• Data transfer rates from 300 baud to 3M baud

• Low USB bandwidth consumption

• USB 2.0 Full Speed compatible.

• -40°C to +85°C operating temperature range

• Cable length: approx. 1.80m (6 feet)

• FCC and CE compliant

• Drivers for: Windows 8 and 8 (64bit), Windows 7 and 7 (64bit), Windows Vista and Vista (64bit), Windows XP and XP (64bit)

  Chipset	FT232RL
  Product Name	USB-RS485-WE-1800-BT
  Product Type	UART Convert Cable
  Standard Package	PE Bag
  Category	Cable Assemblies
  RoHS	Yes
  Series	USB cables
  Usage	USB to RS485
  Convert From (Adapter End)	USB - A, Plug
  Convert To (Adapter End)	6-way, 0.1", Single In Line (SIL), Female Sockets
  Length	6ft (1.8m)
  Shielding	Unshielded
