Ftdi Usb Rs485 to m8 M12 Serial Conversion Cable RS485 M12 TO USB CABLE
US$ 8.98 - 12.98
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
CARATAR
Place of Origin:
China
Model Number:
FTDI Usb-RS485
Payment & Shipping
Payment Methods:
Port of Shipment:
sz or hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
USB-RS485 Converter Cable Provides a USB to RS485US$ 5.98 - 9.98MOQ: 10 Pieces -
High Quality Ftdi Usb Rs232 Cable Usb Rs485 to Rj11 Cable,RJ45,8P8C,10P10CUS$ 5.98 - 9.98MOQ: 10 Pieces
-
Ftdi Usb Rs485 Wire End Serial Communication Cable PVC Jacket USB2.0 to RS485 RS422 RS232 CableUS$ 5.98 - 9.98MOQ: 10 Pieces
-
Usb to Serial Rs-422/485 Cable Converter Usb to Rs485 Rs422 Communication ConverterUS$ 5.98 - 9.98MOQ: 10 Pieces
-
FTDI USB-RS485-WE-1800-BT USB A Plug to Cut End; Built-in USB to RS485 Serial UART ConverterUS$ 5.98 - 9.98MOQ: 10 Pieces
Brand Name
CARATAR
Place of Origin
China
Model Number
FTDI Usb-RS485
Number of Conductors
6
USB RS485 to M12 Serial Cable
Product Description

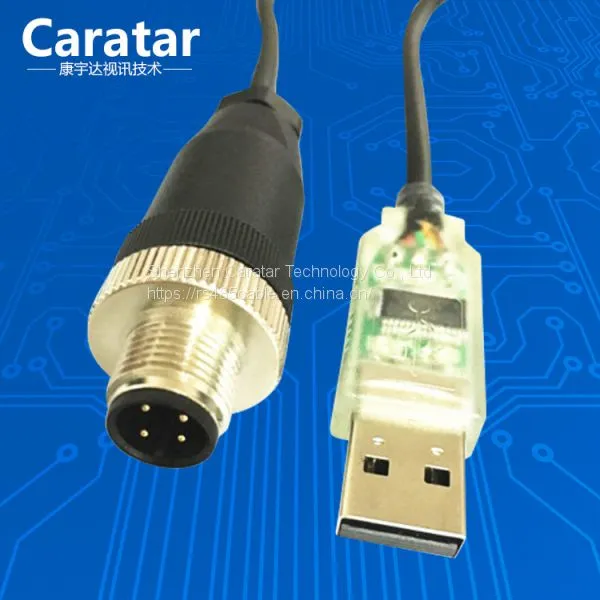

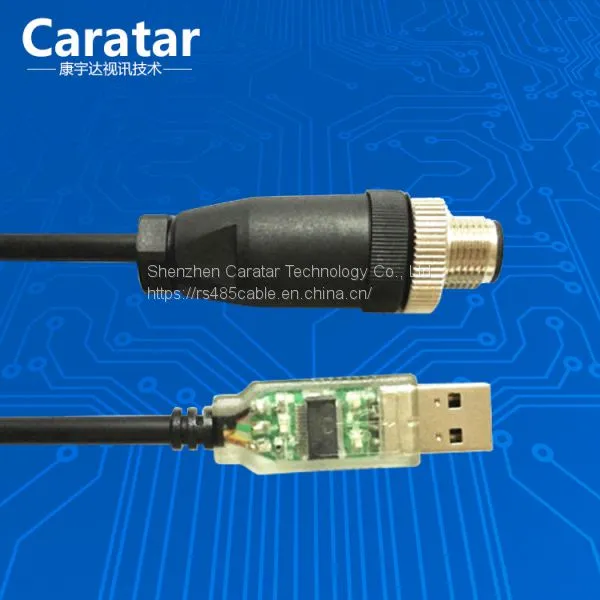

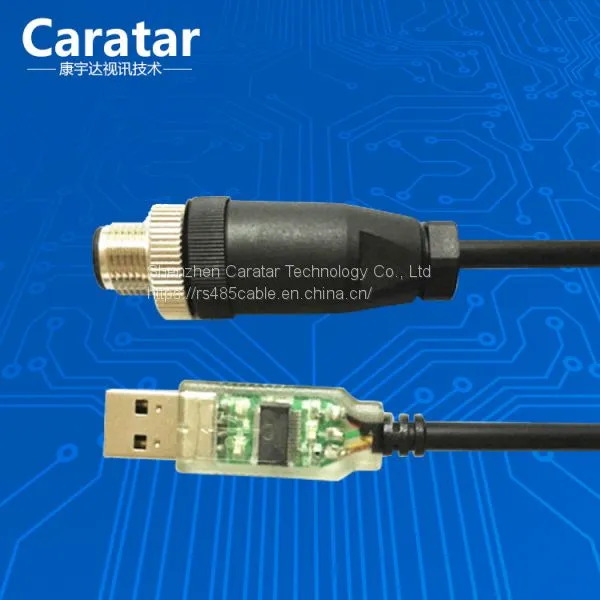

USB to RS-485 Cable, with M12 Male A -coding
Programming cable
5ft USB programming/remote control cable
FTDI chipset for easy setup and reliable operation.
Fully compatable with 32 and 64 bit Windows OS.
RX TX activity LED's to monitor data flow
Flexible cable with molded connectors on both ends
Cable based on: USB-RS485-M12-1800-BT
Connector: Jack M12 Male A - coding
| Processor | FTDI FT232RL |
| RS485 Interface | Included screw terminal header / single wires |
| Fail-safe bias resistors | Yes |
| USB interface | Standard Type A Male |
| Ports | 1-port available for RS485 |
| Signals | RS485, 2-wire half duplex: D+, D-, GND |
| Baud rate | 300-921.600bps (up to 3kbps by using alising) |
| TX / RX buffer size | 256 Byte Transmit Buffer / 128 Byte Receive Buffer |
| Adjustable USB transfer sizes for TX and RX | From 64 bytes to 4096 bytes |
| Adjustable latency timer | 1 to 255 msec |
| Adjustable read and write timeouts | 0 to 10000 msec |
| Flow Control | None, Xon/Xoff, Hardware |
| COM port accessible by | Included virtual COM port drivers or FTD2XX.DLL |
| Special features | Compatible with Modbus RTU/ASCII, BACnet |
| Supports non-standard baud rates | |
| Automatic Send Control | |
| Electrostatic (ESD) protection | 600W surge protection, 15KV static electricity protection |
| Current draw | Static: less than 80mA. Dynamic average: less than 150mA |
| Interface compliance | USB1.1,2.0,3.0, EIA/TIA RS-232 |
| Working temp | -20°C to 60°C |
