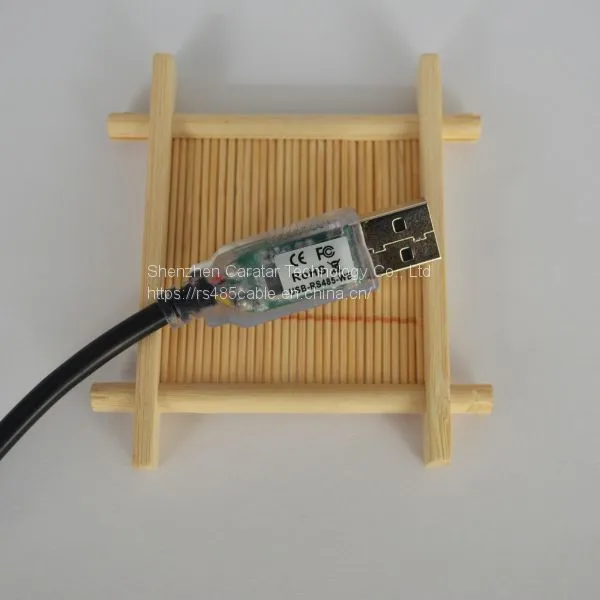

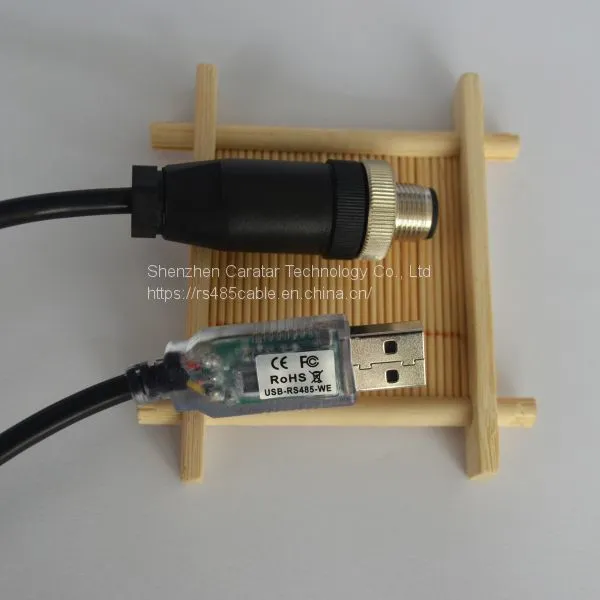

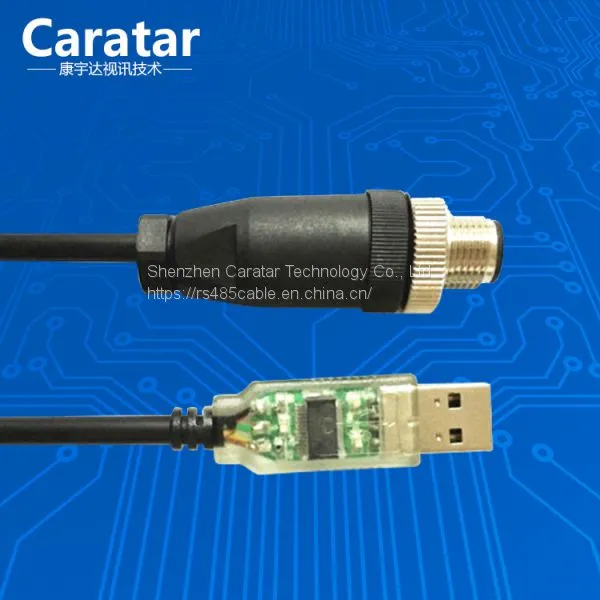

Ftdi usb rs485 to m8 m12 serial USB-RS485-M12 conversion RS485 M12 TO USB cable
USB to RS-485 Cable, with M12 Male A -coding
Programming cable
5ft USB programming/remote control cable
FTDI chipset for easy setup and reliable operation.
Fully compatable with 32 and 64 bit Windows OS.
RX TX activity LED's to monitor data flow
Flexible cable with molded connectors on both ends
Cable based on: USB-RS485-WE-1800-BT

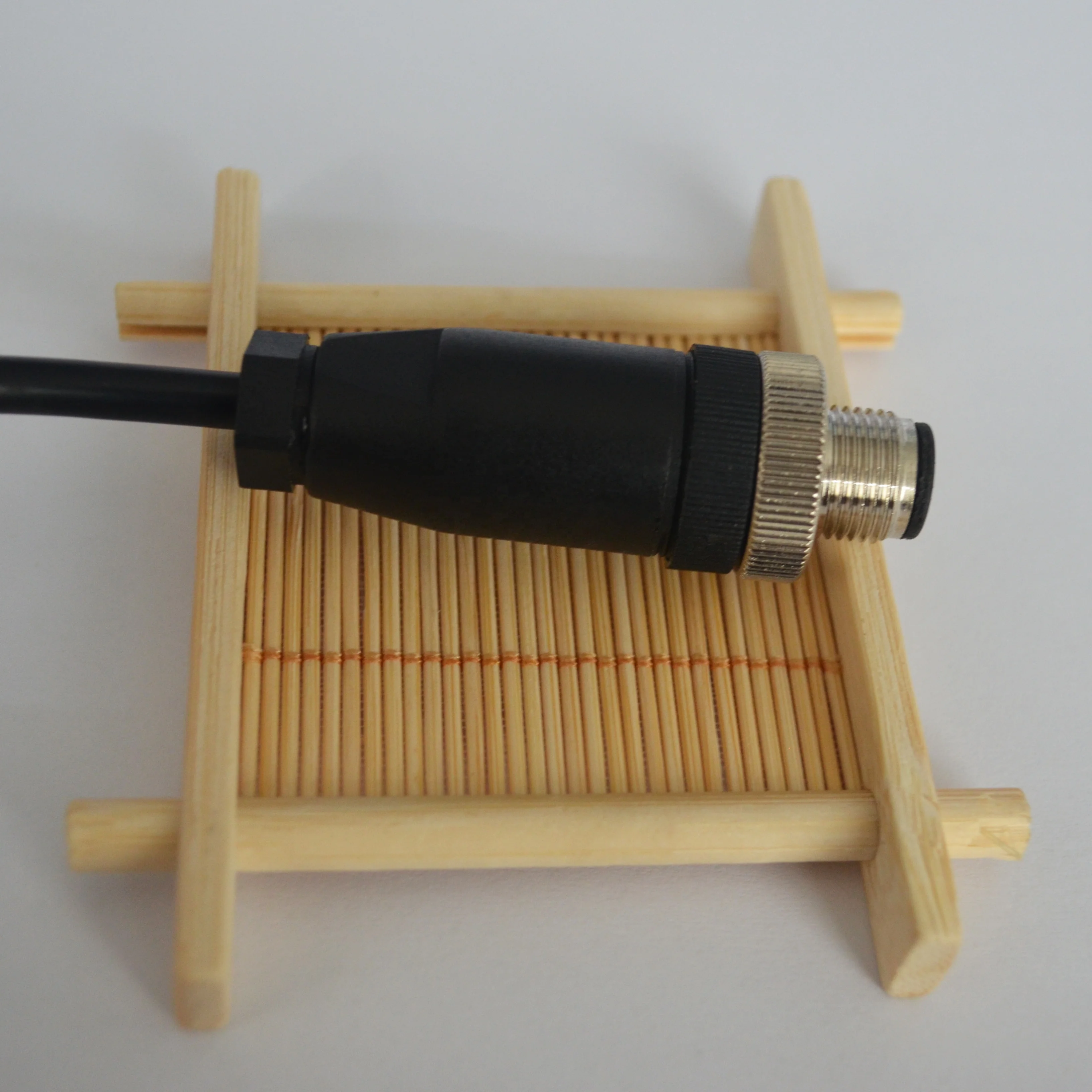

Connector: Jack M12 Male A - coding
General Introduction:
USB RS485 to M12 8P4C
USB RS485 to M12 sensor connector
FT232 + SP485
VCC/GND/A+/B-, half duplex
9600 ~ 25600Mbps
Specification
USB(Universal Serial Bus) Rev1.1, 2.0 compatible
Signal output: VCC/GND/Data+/Data-
Working model: half duplex, asynchronous.
Baud rate: 75bps – 3Mbps, automatic flow control
Transferring distance: 1500m
Ports: USB AM – DB9/RJ45/RJ11/RJ12/mini USB, etc
5v voltage from USB port
Power consumption:
Working currency: 7-12mA
Support Android, Support Win 8, Win 7, XP, 2000, Linix, Mac OS
Support EEPROM, support Vendor ID re-write,support Mprog3.5
Support FTDI VCP driver and D2XX driver
Working temperature: -20°C~75°C
Humidity: 0 ~ 95%
| Operating system | Windows 8.1 / 8 (32/64-bit), Windows 7 (32/64-bit), Vista (32/64-bit), XP, Server 2003/8R2 (32/64-bit), 2000, ME, 98Se (all WHQL compliant) |
| Linux | |
| Mac OS 8, OS 9, OS X | |
| Windows CE.NET (Version 4.2 and greater) | |
| Android | |
| Processor | FTDI FT232RL+SP485 |
| RS485 Interface | Included screw terminal header / single wires |
| Fail-safe bias resistors | Yes |
| USB interface | Standard Type A Male |
| Ports | 1-port available for RS485 |
| Signals | RS485, 2-wire half duplex: D+, D-, GND |
| Baud rate | 300-921.600bps (up to 3kbps by using alising) |
| TX / RX buffer size | 256 Byte Transmit Buffer / 128 Byte Receive Buffer |
| Adjustable USB transfer sizes for TX and RX | From 64 bytes to 4096 bytes |
| Adjustable latency timer | 1 to 255 msec |
| Adjustable read and write timeouts | 0 to 10000 msec |
| Flow Control | None, Xon/Xoff, Hardware |
| COM port accessible by | Included virtual COM port drivers or FTD2XX.DLL |
| Special features | Compatible with Modbus RTU/ASCII, BACnet |
| Supports non-standard baud rates | |
| Automatic Send Control | |
| Electrostatic (ESD) protection | 600W surge protection, 15KV static electricity protection |
| Current draw | Static: less than 80mA. Dynamic average: less than 150mA |
| Interface compliance | USB1.1,2.0,3.0, EIA/TIA RS-232 |
| Working temp | -20°C to 60°C |
