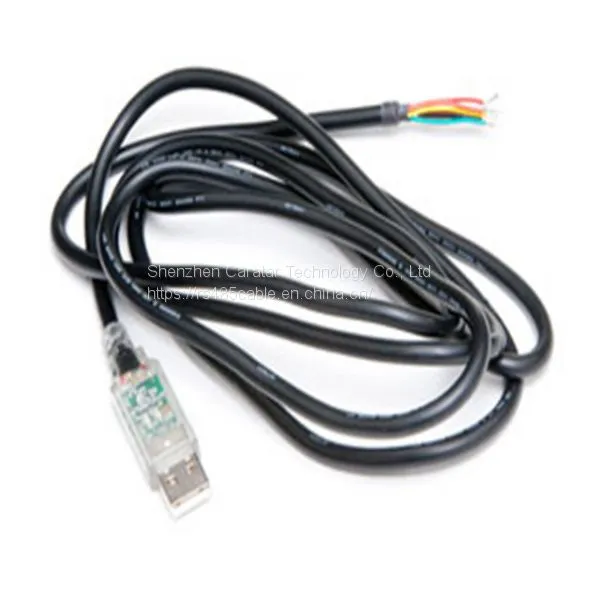

Help CenterUsb to Serial Rs-422/485 Cable Converter Usb to Rs485 Rs422 Communication Converter
Related Products
-
FTDI USB-RS485-WE-1800-BT USB A Plug to Cut End; Built-in USB to RS485 Serial UART ConverterUS$ 5.98 - 9.98MOQ: 10 Pieces -
USB-RS485-WE-1800-BT USB TO RS485 CABLE, 1.8M BLACK CABLE, WIRE ENDUS$ 4.98 - 9.98MOQ: 10 Pieces
-
FT232R USB RS485 Converter,Panel Mount FTDI USB-RS485-WE-5000-BT-Cable, USB to RS485 Cable ConverterUS$ 6.98 - 12.98MOQ: 1 Piece
-
USB-RS422-PCBA FTDI USB to RS485 Embedded Converter PCB AssyUS$ 6.98 - 12.98MOQ: 1 Piece
-
USB-RS485-PCB FTDI USB to RS485 ModuleUS$ 4.98 - 9.98MOQ: 1 Piece
High Speed Serial USB to Single Port RS-485 Converter
Industrial USB 2.0 to RS485 Converter,USB To Rs485 Interface Converter, USB to RS422/485 Cable
FTDI Usb-rs485-we-1800-bt Cable USB to Rs485 Serial 1.8m Wire End
USB-RS485 converter cable provides a USB to RS485 serial interface with customized end connectors. Entire USB to RS485 translation protocol handled by the electronics over-molded in the cable
ESD Protection for RS-485 I/O's ±15kV Human Body Model (HBM) ±15kV EN61000-4-2 Air Gap Discharge ±8kV EN61000-4-2 Contact Discharge
EIA/TIA-485 communication interface with low power requirements. Overmolded FT232R chipset provides single chip USB to asynchronous serial data transfer interface. Works with all Windows and Mac OS versions

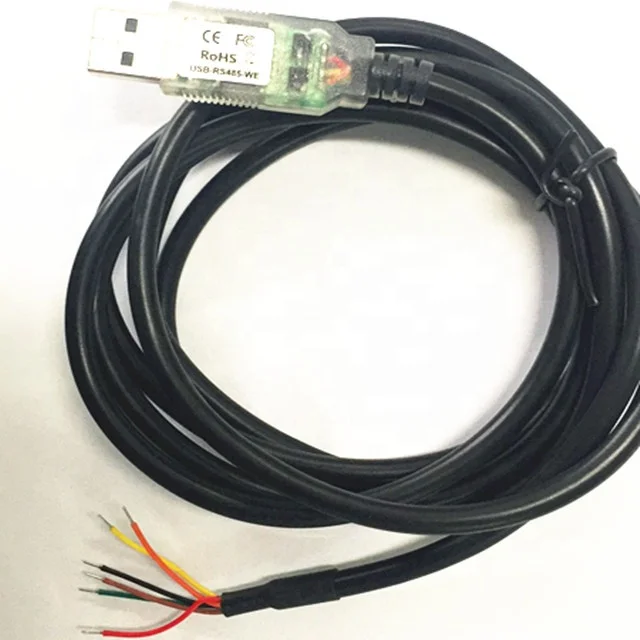

Visual indication of Power and Tx/Rx data traffic via LEDs in the transparent USB connector
Please refer to the datasheet attached in "Technical Specification" section of this page for additional information

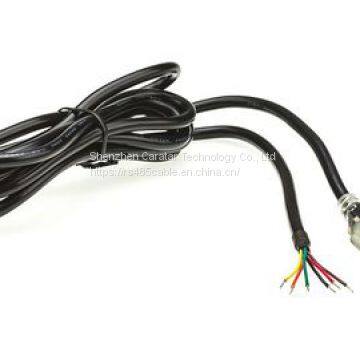

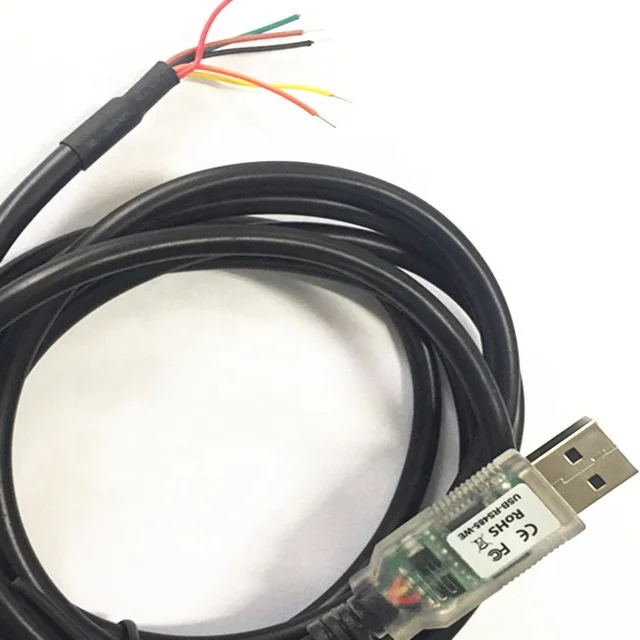

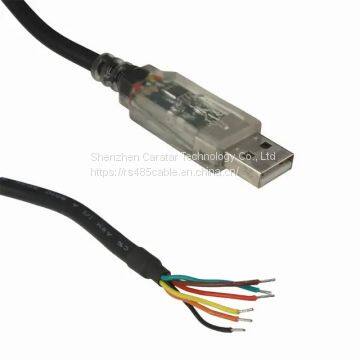

Every CARATAR FACTORY cable is built to last for years with high quality industrial grade materials. The cable works with all Windows and Mac OS versions including the latest Windows 10 and Mac OS X 10.12(Sierra). The USB-RS485 cable is a USB to RS485 levels serial UART converter cable incorporating FTDI's FT232R USB to serial UART interface IC device which handles all the USB signaling and protocols. The cable provides a fast, simple way to connect devices with an RS485 interface to USB. This cable has 6 outputs: GND(Black), Data-(Yellow), 5vPower(RED), Terminator1(Brown), Data+(Orange), Terminator 2(Green). In the cable, there is a 120 ohm resistor connected in between Terminator 1 and Terminator 2.
| Processor | FTDI FT232RL |
| RS485 Interface | Included screw terminal header / single wires |
| Fail-safe bias resistors | Yes |
| USB interface | Standard Type A Male |
| Ports | 1-port available for RS485 |
| Signals | RS485, 2-wire half duplex: D+, D-, GND |
| Baud rate | 300-921.600bps (up to 3kbps by using alising) |
| TX / RX buffer size | 256 Byte Transmit Buffer / 128 Byte Receive Buffer |
| Adjustable USB transfer sizes for TX and RX | From 64 bytes to 4096 bytes |
| Adjustable latency timer | 1 to 255 msec |
| Adjustable read and write timeouts | 0 to 10000 msec |
| Flow Control | None, Xon/Xoff, Hardware |
| COM port accessible by | Included virtual COM port drivers or FTD2XX.DLL |
