FT232R USB RS485 Converter,Panel Mount FTDI USB-RS485-WE-5000-BT-Cable, USB to RS485 Cable Converter
- 500 Piece / Pieces per Month
- sz or hongkong
- T/T PayPal
Product Details
Brand Name: | CARATAR | Place of Origin: | China | Model Number: | USB-RS485-WE-5000-BT |
Number of Conductors: | 6 |
Product Description

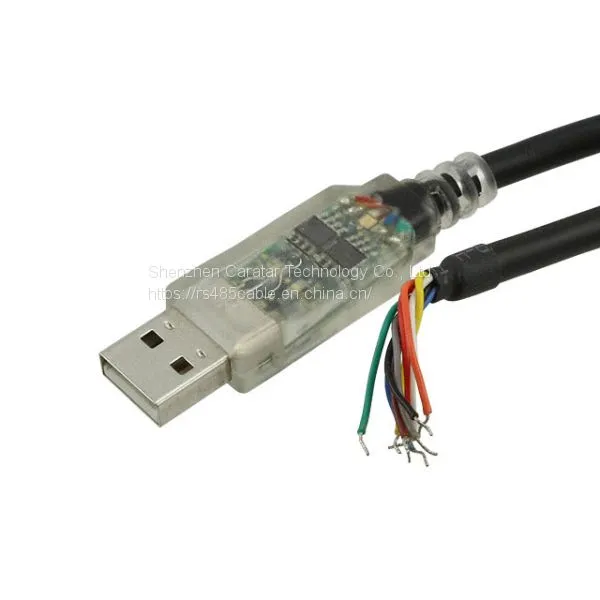

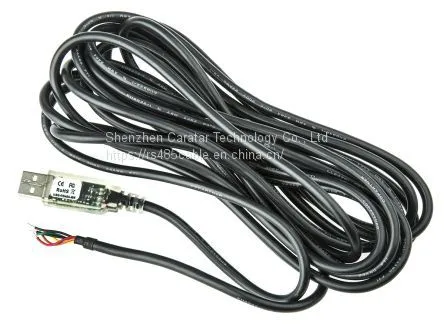

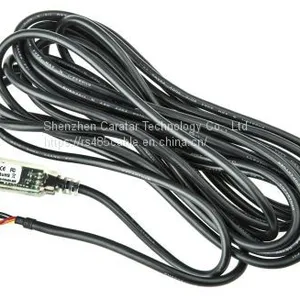

FTDI FT232 usb to rs485 uart serial converter cable
ftdi USB-RS485-WE-5000-BT-Cable,USB to RS485 Serial Cable
Baud Rate: | 3Mbaud |
Cable Length - Imperial: | 8.3ft |
Cable Length - Metric: | 5m |
Chip Type: | FT232R |
Conversion Type: | USB to RS485 Converter cable |
Converter Connector Type: | Free / Stripped End |
2.Entire USB to RS485 translation protocol handled by the electronics over-molded in the cable.
3.Overmolded FT232R chipset provides single chip USB to asynchronous serial data transfer interface. Works with all Windows and Mac OS versions.
4.UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
5.Internal EEPROM with user writeable area.
6.Data transfer rates from 300 baud to 3 Mbaud.
7.Visual indication of Tx and Rx traffic via LEDs in the transparent USB connector.
8.Extended temperature range (-40°C to +85°C).
9.Electronics available as separate PCB.
Customized for other cable too :High quality ftdi usb rs232 cable rs232 to rs485 converter cable,RJ45,8P8C,10P10C
More USB to RS-485 Converter USB-RS485 cable , you can choice as below list for refernce
or other customized cable such as : TTL-232R-Rpi | FTDI Chip USB to UART Cable for Raspberry Pi, TTL-232R-Rpi FTDI Chip/RS232 to RS422/RS485 Adapters and Converters/USB RS-232 DB9 Male Serial Adapter Converter with Prolific Chip
Part Number | FTDI Chipset | UART Connector Type | Max UART Baud Rate | Cable Length | Additional Voltage Output Level |
(If available) | |||||
USB-RS485-WE-1800-BT | FT232R | Wire-ended | 3 Mbaud | 1.8m | 0V |
USB-RS485-WE-5000-BT | FT232R | Wire-ended | 3 Mbaud | 5m | 0V |
USB-RS485-PCB(PCB only) | FT232R | - | 3 Mbaud | USB connector with PCB only | Default configuration - 0V |
also below list is aviliable too , for reference here
USB-RS485-WE-1800-BT Ftdi Cable, Usb-RS485 |
USB-RS485 converter cable provides a USB to RS485 |
FTDI USB-RS485-WE-1800-BT CABLE USB-RS485 SERIAL CONVERTER |
FTDI USB-RS485 console cable |
USB to RS485 Converter USB-RS485 RJ45 cable or Type C cable |
