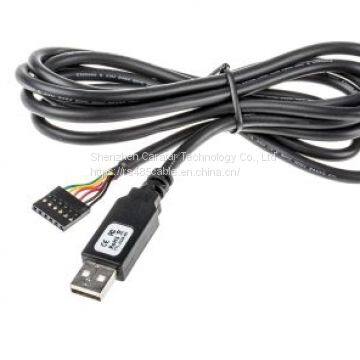

Help CenterTTL to USB Converter Cable for Cycle Analysts Datalogging to pc
Related Products
-
Basic Breakout Board For FTDI FT232RL USB To TTL Serial IC Adapter (6 Way OEM FTDI TTL-232R-5V Cable)ftdi Ttl CableUS$ 4.98 - 6.69MOQ: 10 Pieces -
TTL-232R-3V3-WE USB to TTL Serial Cable High Speed USB to TTL Converter Cable USB 2.0 Data Cable With FTDI ChipUS$ 4.98 - 6.5MOQ: 10 Pieces
-
USB Interface Type and Other Type FTDI USB to TTL 3.3V 3.5mm Audio Jack Serial CableUS$ 4.98 - 6.98MOQ: 10 Pieces
-
TTL-232R-3V3-WE FTDI Chip USB to TTL UART Serial Cable With Wire-ended 6 Core Output TTL-232R-5V-WE CompatibleUS$ 4.98 - 6.98MOQ: 10 Pieces
-
5V/3.3V Ttl Level Uart Signals Ftdi Usb to Serial Cable USB to TTL Serial FTDI Converter Serial Adapter With Open Wired EndUS$ 4.98 - 6.69MOQ: 10 Pieces

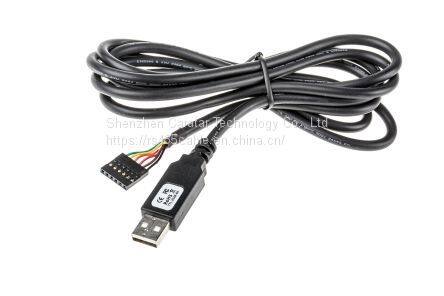

1.TTL-232R Converter Cable provides a USB to TTL Serial interface with various end connectors.
2. Onboard FT232RL provides single chip USB to asynchronous serial data transfer interface.
3. Entire USB protocol handled by the electronics in the cable USB.
4. Connect directly to a microcontroller UART or I/O pins.
5. 5V CMOS drive outputs and 5V safe TTL inputs make the TTL-232R easy to interface to 5V MCU''s.
6. +5V or +3.3V output allows external logic to be powered from the USB port.
7.6-way outputs provide Tx, Rx, RTS#, CTS#, VCC, and GND (except Audio Jack which provides only TX, RX, and GND).
8.3-way Audio Jack connector provides Tx, Rx, and GND.
9.Low USB bandwidth consumption.
10.UHCI / OHCI / EHCI host controller compatible.
11.USB 2.0 Full Speed compatible.
12.-40°C to +85°C operating temperature range.
13. Cable length is 1.80m (6 feet).
14. Custom versions also available (subject to MOQ).
| Type | USB to Serial TTL Cable (OEM FTDI Cable) |
| Connector 1 | USB C Male |
| Connector 2 | 6Pin connector,6 open wires,DC3.5MM Plug optional |
| Chipset Used | FT232/CP2102/PL2303 optional |
| Cable | 3 core, 4 core, 6 core available |
| Pinout | VCC, TXD, RTS, RXD, CTS, GND |
| Support | WINDOWS7/8/98/ME/2000/XP,Vista32,Mac8.6 or later,LINUX O.S,etc |

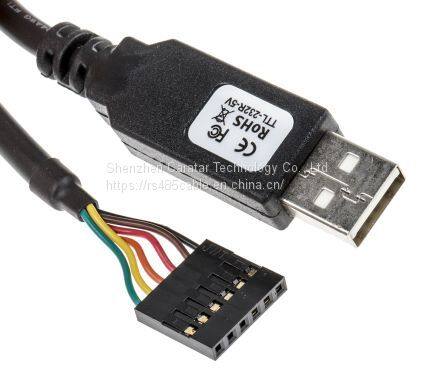

FT232RL FTDI USB To Serial Cable,USB to TTL Cable ,TTL-232R-5V
8.3 way Audio Jack connector provides Tx, Rx and GND.
